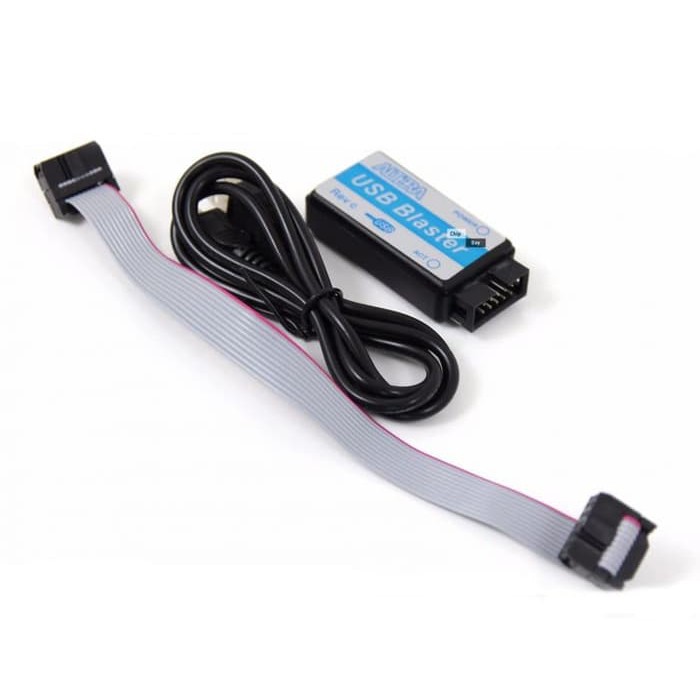

USB BLASTER Module Mini USB to ALTERA CPLD FPGA NIOS JTAG

Elektronik > Kelistrikan > Kelistrikan Lainnya > USB BLASTER Module Mini USB to ALTERA CPLD FPGA NIOS JTAG

Tersedia

Periksa harganya...

Lihat tempat menjual

Toko:SolarperfectLihat semua produk Elektronik oleh Solarperfect

Pengiriman Ekspres
Barang yang diperiksa
Bayar di tempat berlaku
Kualitas, Prestise
Pengembalian produk
Dukung pembuatan faktur

Deskripsi Produk Spesifikasi

Detail USB BLASTER Module Mini USB to ALTERA CPLD FPGA NIOS JTAG

Brand new and high quality. Fully compatible with original Altera USB-Blaster. Supported target voltage : 1.0V-5.5V. Support all ALTERA deveice. CPLD:MAX 3000A.MAX 7000A.MAX 7000B.MAX 7000S.MAX 9000.MAX 9000A and MAX II. FPGA:Stratix.Stratix II.Stratix GX.Cyclone.Cyclone II.Cyclone III.ACEX 1K.APEX II.APEX 20K.APEX 20KE.APEX 20KC.FLEX 10K.FLEX 10KE.FLEX 10KA.FLEX 6000.FLEX 8000.EPCS1.EPCS4.EPCS16.EPCS64EPC1.EPC4.EPC8.EPC16. Support:JTAG, AS, PS Mode. Support NiosII embeded core based debug. Supports Quartus II SignalTap? II Logic Analyzer (for logic analysis). High performance, 6 times faster than ByteBlasterII. USB interface with status and Power LED. Size:5.5cm x 2.8cm x 1.5cm - 2.17inch x 1.1inch x 0.59inch.
