D-Link DES-1016A Fast Ethernet Switch 16-port

Merek: D-Link | Lihat selengkapnya produk Komputer & Aksesoris dari D-Link
Komputer & Aksesoris > Komponen Network > Switch Internet & PoE > D-Link DES-1016A Fast Ethernet Switch 16-port
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Magic Wireless Mall OfficialLihat semua produk Komputer & Aksesoris oleh Magic Wireless Mall Official
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail D-Link DES-1016A Fast Ethernet Switch 16-port

Standards
IEEE 802.3 10BASE-T Ethernet (twisted pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x flow control

LAN
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX compliance
IEEE 802.3x Flow Control support

Data Transfer Rates
Fast Ethernet
100 Mbps Half-Duplex
200 Mbps Full-Duplex
Ethernet
10 Mbps Half-Duplex
20 Mbps Full-Duplex

Functionality

Switching Capacity
4.8 Gbps

Number of Ports
24 10/100Mbps Fast Ethernet ports

Network Cables
10BASE-T:
UTP CAT 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange
Auto MDI/MDIX adjustment for all ports

LED Indicators
Per port:
Link/Activity
Per device:
Power

Transmission Method
Store-and-forward

MAC Address Table
8K entries per device

MAC Address Learning
Automatic update

Packet Filtering /Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port

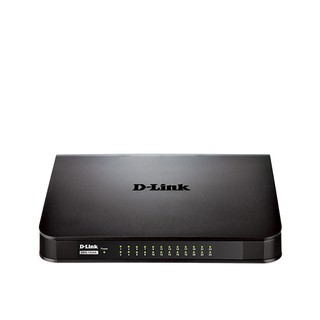

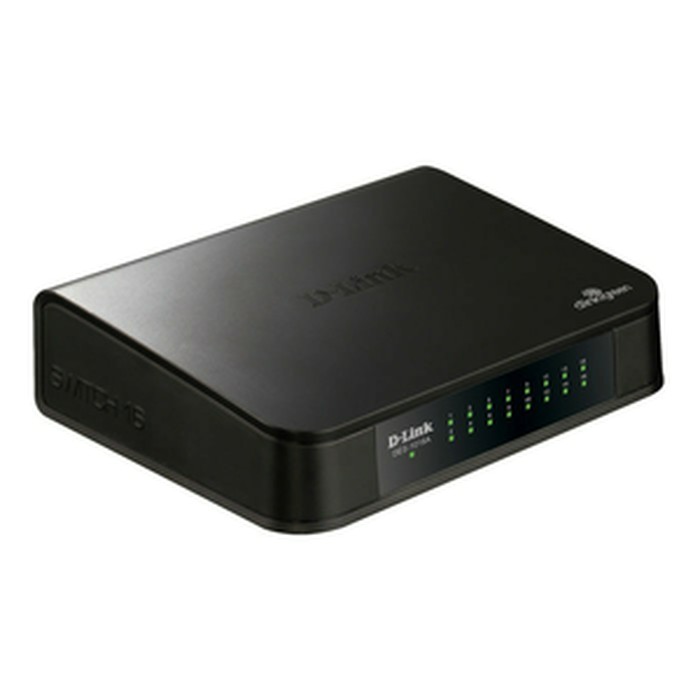

Gambar produk

D-Link DES-1016A Fast Ethernet Switch 16-port
D-Link DES-1016A Fast Ethernet Switch 16-port
