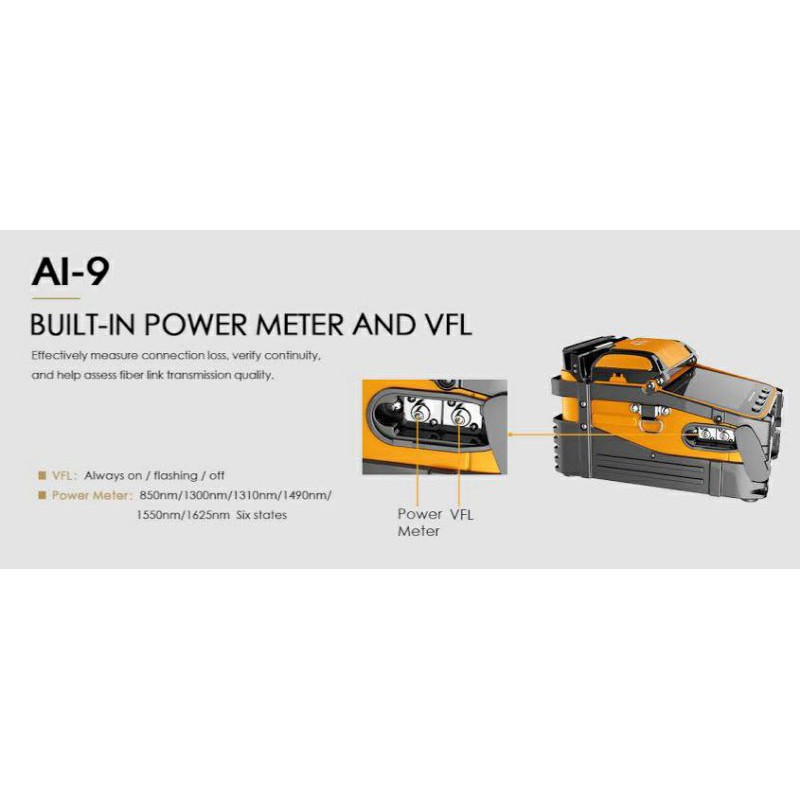

Name Signal Fire AI-9 Code L5875 Fiber alignment core-to-core cladding-to-cladding manual Splicing cycle 5 s Sleeve heating cycle 15 s (40 mm) Number of motors 6 Auto-focus Yes Fiber type compatibility SM (G.652, G.657), MM (G.651 – OM1, OM2, OM3, OM4), DS, NZDS (G.655) Splice loss (typical) 0.025 dB (SM), 0.01 dB (MM), 0.04 dB (DS/NZDS) Return loss min 60 dB Calibration of the electric arc manual Durability of electrodes ca. 3000 splices (the kit includes spare electrodes) Fiber diameter range buffer: 80-150 μm jacket: 100-1000 μm Fiber cutting length 8 – 16 mm (250 μm overlap): 16 mm (>250 μm overlap) Strength test Yes (2 N) Magnification x300 (in X or Y axis; x150 in both axes simultaneously) Display 5.1" color TFT, 800×480 pixels Power 7800 mAh lithium rech. battery, charging time 3.5 h 100-240 VAC charger with 13.5 VDC / 4 A output Optical Power Meter Wavelenght: 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm Measuring range: -70 dBm…+6 dBm Measurement error: < 0,3 dB Visual Fault Locator Wavelenght: 650 nm Power: 15 mW Modes: constant or 2 Hz tone Operating temperature range -15°C…+50°C Operating humidity range (RH) < 95% (no condensation) Weight 2.08 kg (splicer with battery) 7.1 kg (whole kit) Dimensions splicer: 130 x 122 x 148 mm toolbox: 270 x 237 x 293 mm Remarks USB adapter configuration and diagnostic app protection sleeves up to 60 mm

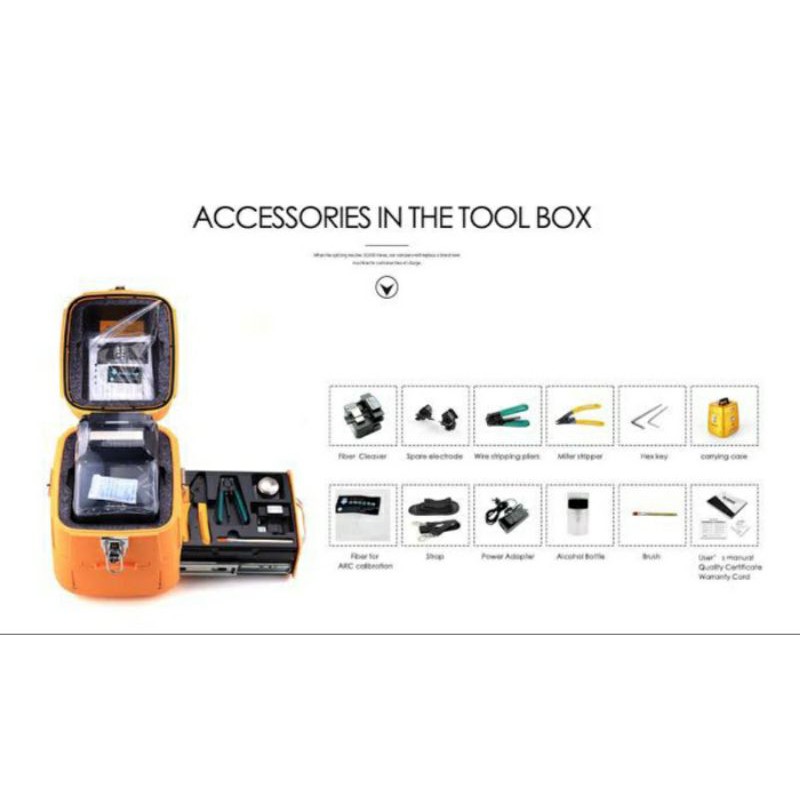

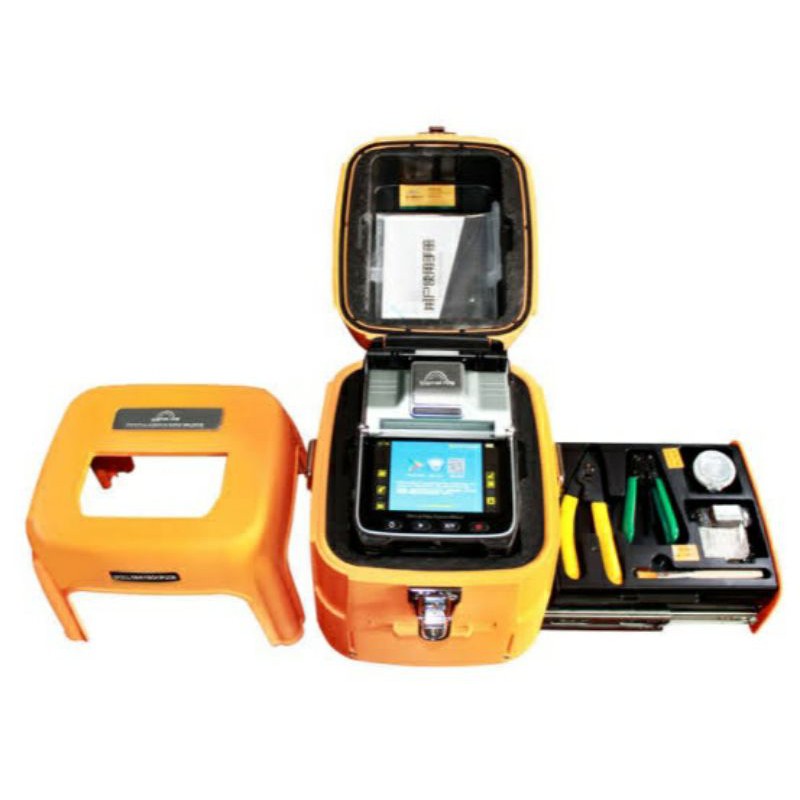

Kelengkapan: - Signal Fire AI-9 fusion splicer - toolbox - set of spare electrodes - fiber cleaver - universal stripper - stripper for flat cables - bottle with dispenser - cleaning brush - carrying belts (for the splicer and the box) - AC charger with USB adapter

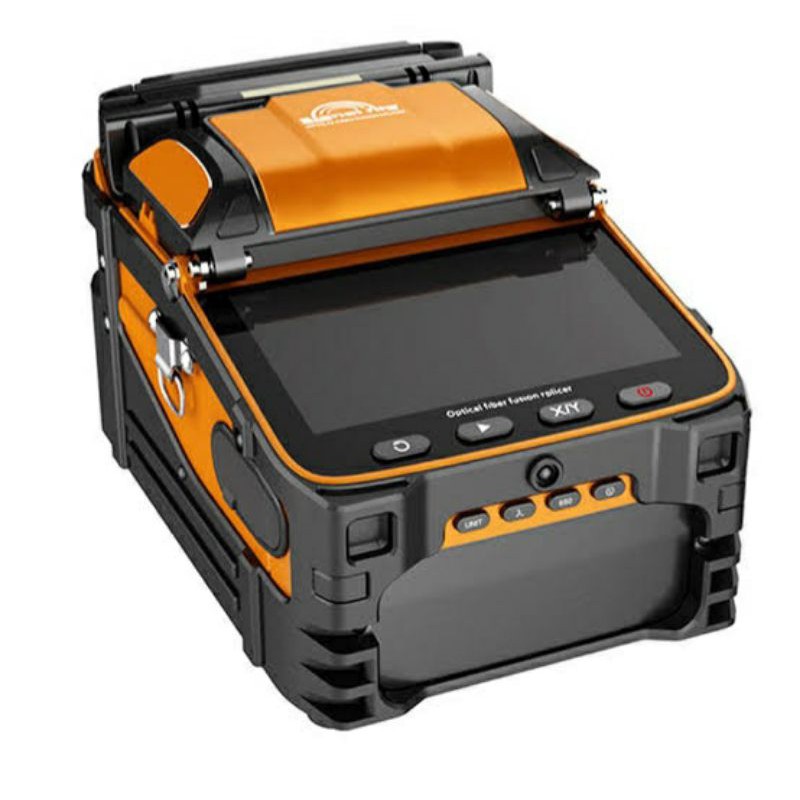

Gambar produk
