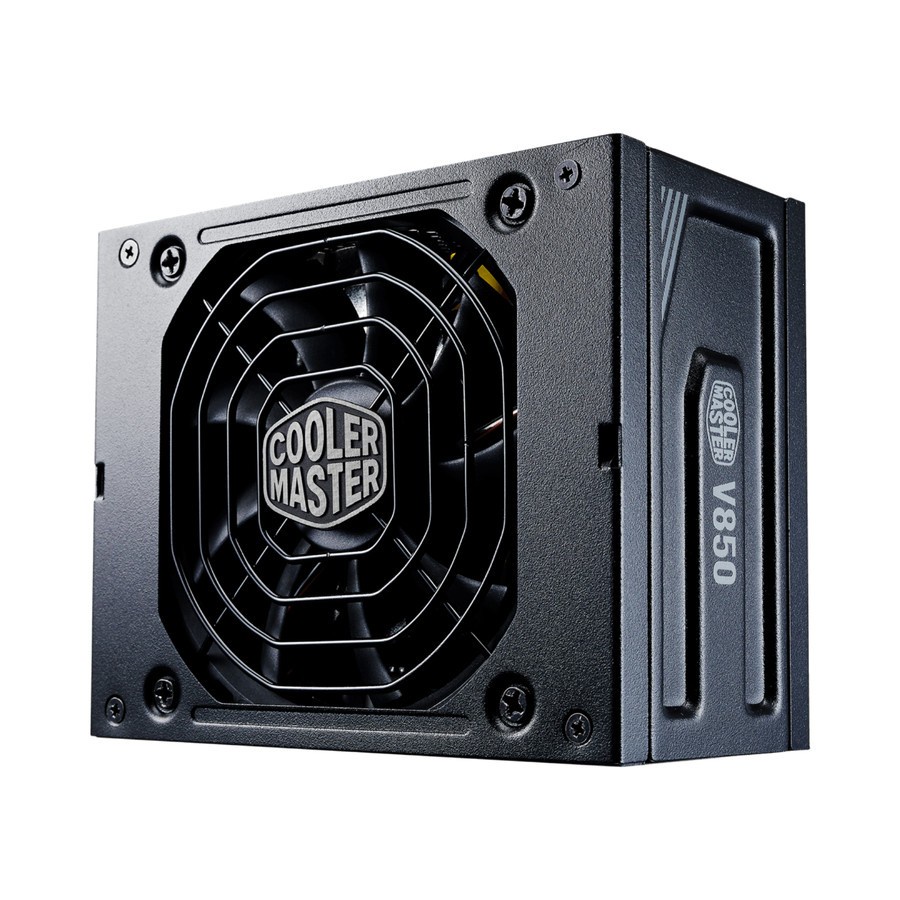

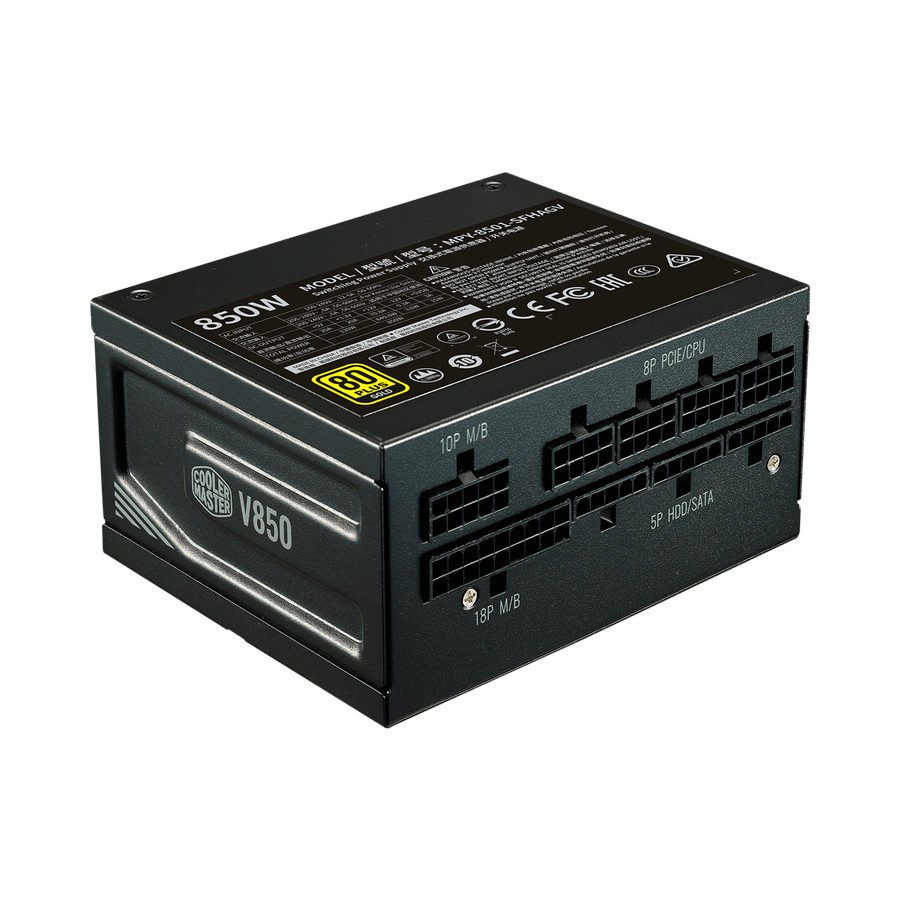

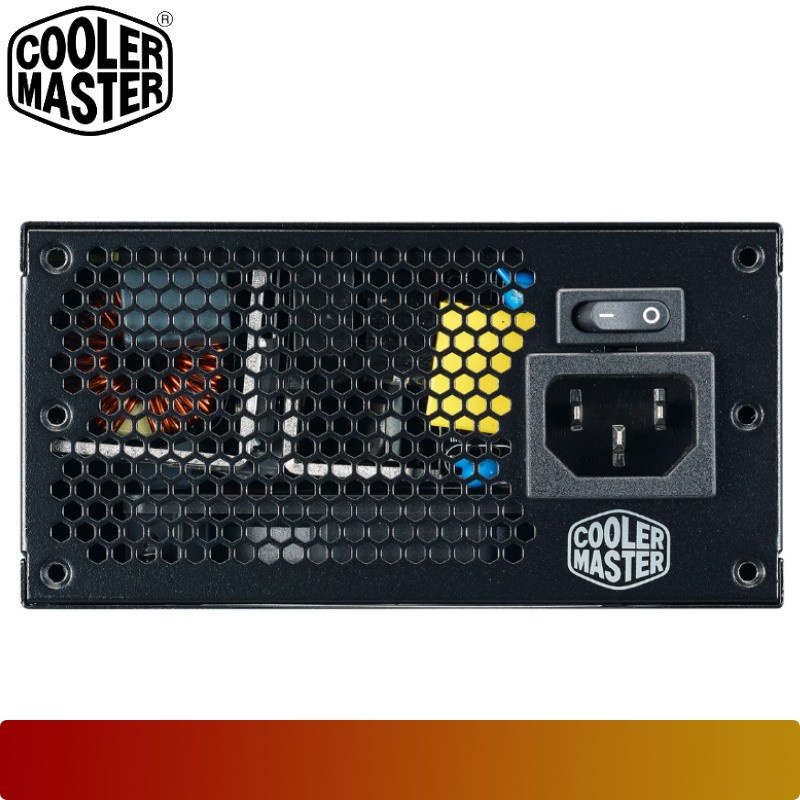

Cooler Master Power Supply V850 SFX 80+ Gold Fully Modular - PSU

Detail Cooler Master Power Supply V850 SFX 80+ Gold Fully Modular - PSU

Power Supply Cooler Master V850 SFX 80+ Plus Gold Fully Modular - PSU
Cooler Master V850 SFX 80+ Plus Gold Fully Modular - MPY-8501-SFHAGV

Features :
SFX Form Factor: High-quality PSU that's compatible with all SFX cases and suitable for mini-ITX system builds.

SFX-to-ATX Bracket: With the included bracket, users can install the V SFX Gold securely to an ATX case.

80 PLUS Gold Certified: This certification guarantees a typical efficiency of 90% under normal operating conditions.

16 AWG PCI-e Cables: The thicker 16 AWG PCI-e cables allow for higher currents, thereby improving both efficiency and safety.

Full-Modular Cabling: Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.

Quiet FDB Fan: The 92mm FDB fan delivers effective, quiet, and efficient cooling. Semi-fanless up to 15% load.


Brand : Cooler Master
Series : V850 SFX Gold
Model : MPY-8501-SFHAGV

Spesifikasi :
Type SFX 12V Ver. 3.42
Maximum Power 850W
Fans 92mm FDB
PFC Active
Main Connector 20+4Pin
+12V Rails Single
PCI-Express Connector 4 x 6+2-Pin
SATA Power Connector 8
Modular Full Modular
Power Good Signal 100-500ms
Hold-up Time 16ms min.
Efficiency 90% @ Typical Load
Energy-Efficient 80 PLUS GOLD Certified
Protection OVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection
Input Voltage 100 - 240 V
Input Frequency Range 50/60 Hz
Input Current 10 - 5A

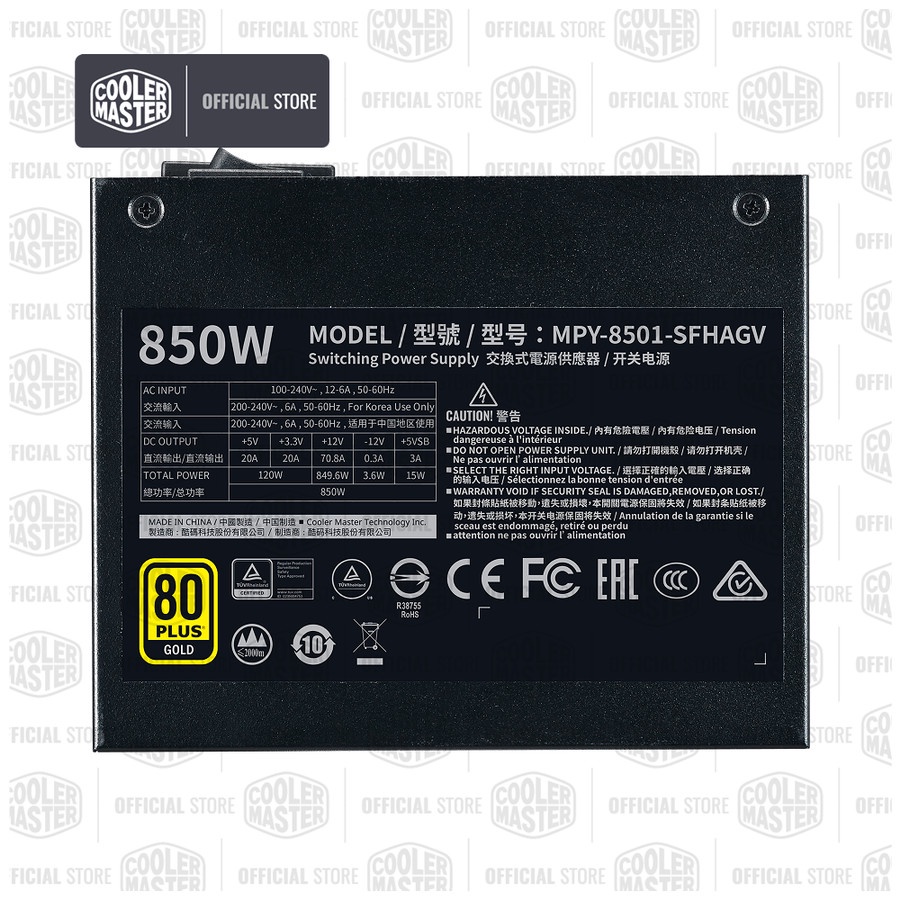

Output +3.3V@20V, +5V@20A, +12V@62.5A, -12V@0.3A, +5VSB@3A
MTBF >100,000 Hours
Approvals TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB
Dimensions 2.50" x 4.92" x 3.93"
Max PSU Length 100 mm
Weight 3.88 lbs.

Connectors :
1 x ATX 24 Pin
1 x EPS 4+4 Pin
1 x EPS 8 Pin
8 x SATA
4 x Peripheral 4 Pin
4 x PCI-e 6+2 Pin

Package Content :
V850 SFX Gold
SFX-to-ATX Bracket
Connectors
Power Cord
4x screws
Manuel
