Detail CNC Router 3040 5 Axis Mesin CNC PCB Milling with 2.2 KW Spindle
3D Zaiku Indonesia
CNC Router 3040 5 Axis Mesin CNC PCB Milling with 2.2 KW Spindle
SKU : Zaiku 3040-5A Garansi Full Sparepart 1 Tahun untuk semua merek Zaiku
FREE TRAINING ONSITE area Jakarta, Tangerang, Surabaya untuk luar kota ada biaya tambahan transport dan akomodasi
Kenapa beli di 3D Zaiku : 1. Garansi FULL sparepart mesin 1 tahun 3. FREE TRAINING ONSITE di lokasi customer 3. FREE Konsultasi kebutuhan mesin dan upgrade mesin, ada mesin demo ditoko
Mesin bisa motong dan ukir triplek, akrilik, kulit, sampai bahan besi stainless steel

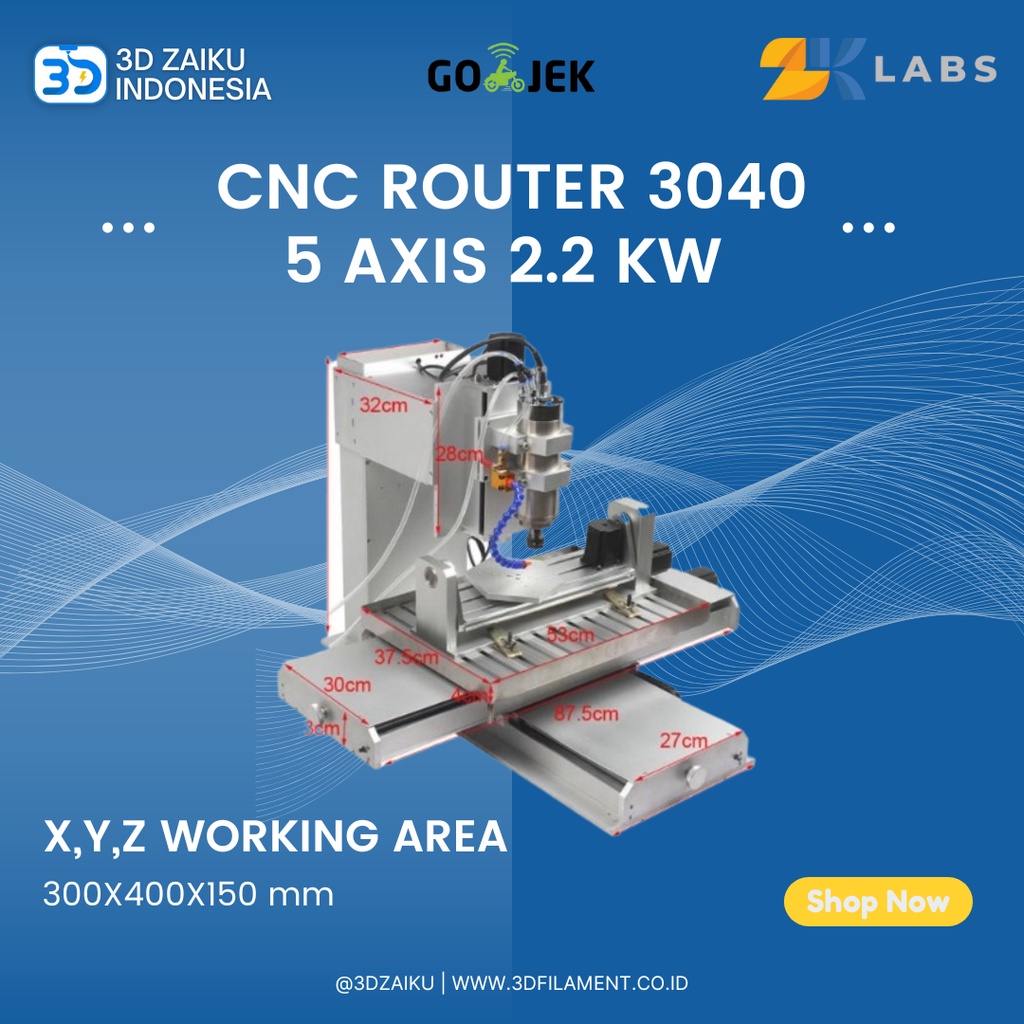

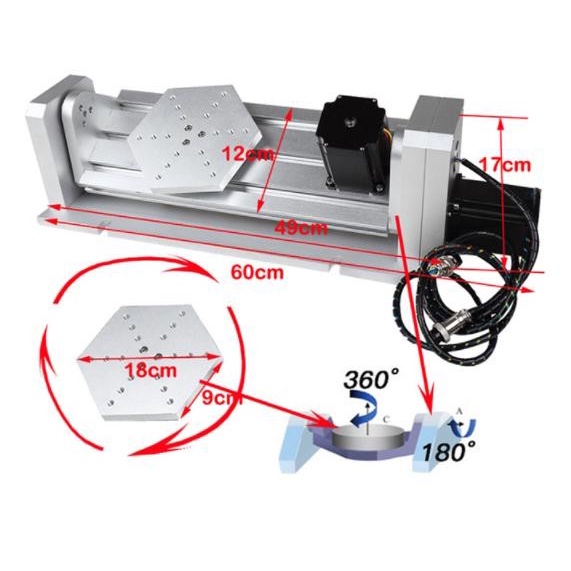

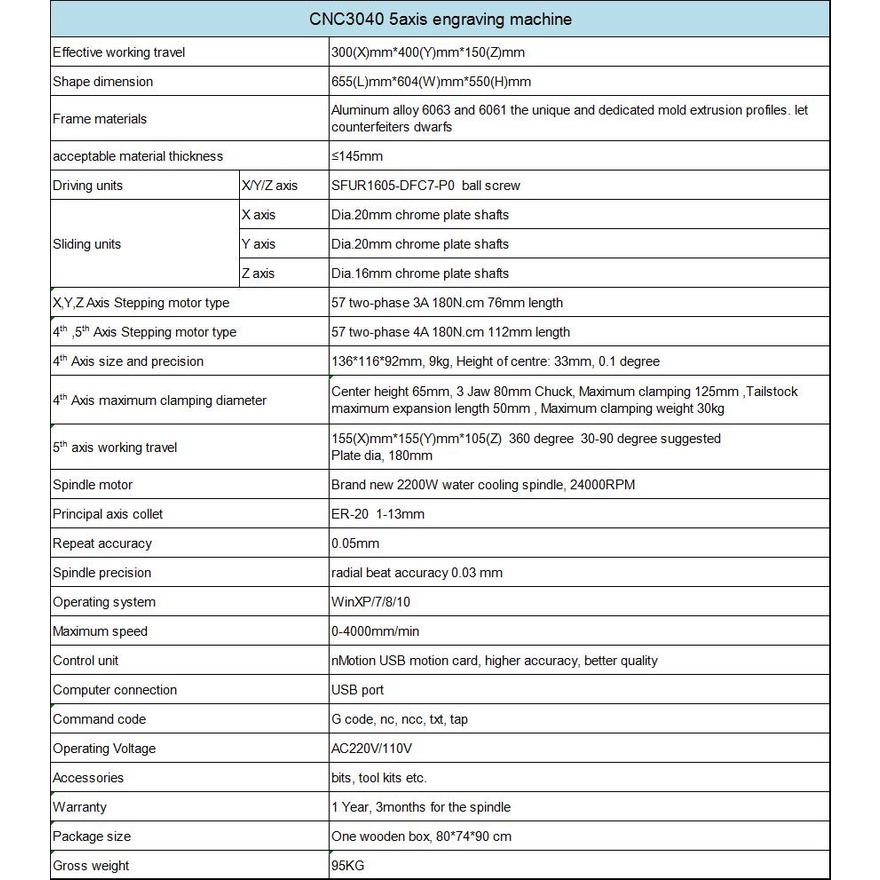

TECHNICAL SPECIFICATION Tipe : 3040-5A X,Y,Z Working Area: 300*400*150 mm Max. Feeding height: 145 mm Outside dimension: 655*604*550 mm 4th Axis Size and Precision : 136x116x92 mm , height of center 33 mm 0.1 degree 4th Axis Max Ukuran di clamp : max clamp 125 mm, 3 jaw 80 mm chuck, center height 65 mm 4th Axis Max Berat di clamp : 30 kg 5th Axis Area Kerja : 155x155x105 mm , 360 degree, diameter plat 180 mm Lathe structure: 6061/6063 Aluminium alloy Stepping motor: two-phase 57/4A for 4th and 5th axis, two-phase 57/3A for X, Y, Z Drive unit: Ball screw Sliding unit:: Chromeplate shaft Repeat positioning Accuracy: 0.05 mm Spindle motor: 2.2 KW Air Spindle Spindle speed: 24000RPM/MIN Max Speed : 0-4000 mm/minute Cutting tool-holder: ER20/3.175mm
Interface:USB port
Sudah terakit jadi, siap pakai Include Free Software Mach 3 Controller
Bisa dipakai untuk plastic, wood, acrylic, pvc, pcb, wood or the like material.
Package introduced - 1 Set CNC 3040 5 Axis - 5 pcs motors - 1 FREE Tool box and tools - 1 Power cable - 1 Control box - 1 mesin Spindle - 1 Set Tensioner
Garansi Full Sparepart 1 Tahun untuk semua merek Zaiku
Barang READY STOK
