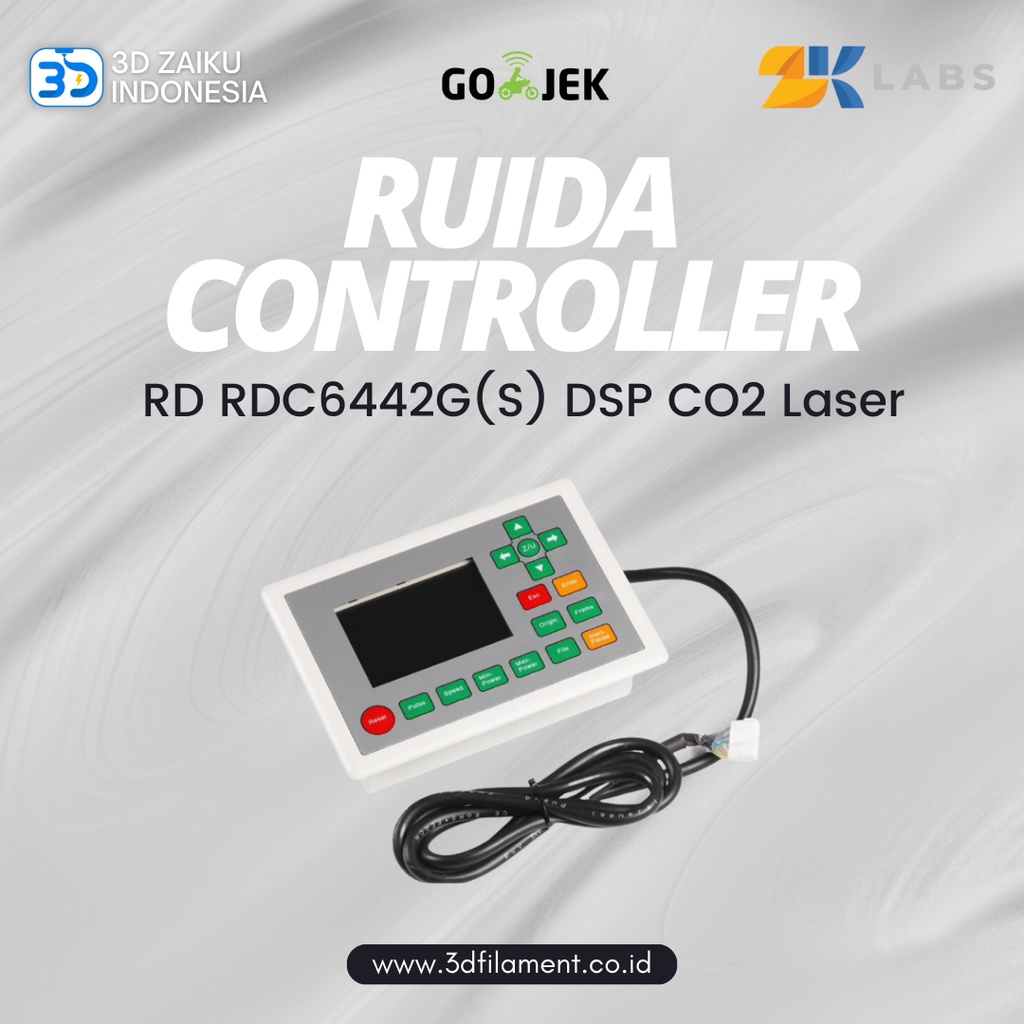

Original Ruida RD RDC6442G(S) DSP CO2 Laser Controller System
Feature
Ruida RDC6442G/S system is a new generation system for 4-Axis control of laser engraving and cutting.
Digital Laser Control Signals:
(1) TTL level output, 50 mA, Drive Capability
(2) PWM frequency 2K-50K for adjustable
(3) PWM duty ratio is 1% ~ 99%, adjustable
(4) PWM value is up to 5.0 V
One-Way 24V Power Supply, >2A
Motor Control Signal: Common-anode Output, Drive Capability 20 mA. Motor control pulse frequency: Max.500KHZ
10/100M Ethernet + USB 2.0 Control.
Interpolation: Linear/circular arc/B spline, accuracy + / - 0.5 pulse
Output: 4-channel, photoelectric isolated OC gate output, the max. drive capability 500mA drive capability (with follow-current protection).
Input: 4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level
6442G: Standard / 6442S: Double Head Linkage
Package including:
1pcs RDC6442G/S Ruida Controller
Ready Stock
