Detail CJMCU-2812-8 8-bit WS2812 WS2812B 5050 RGB LED module
Hi #RekanEasyWare ...EasyWare Part#: EP000611

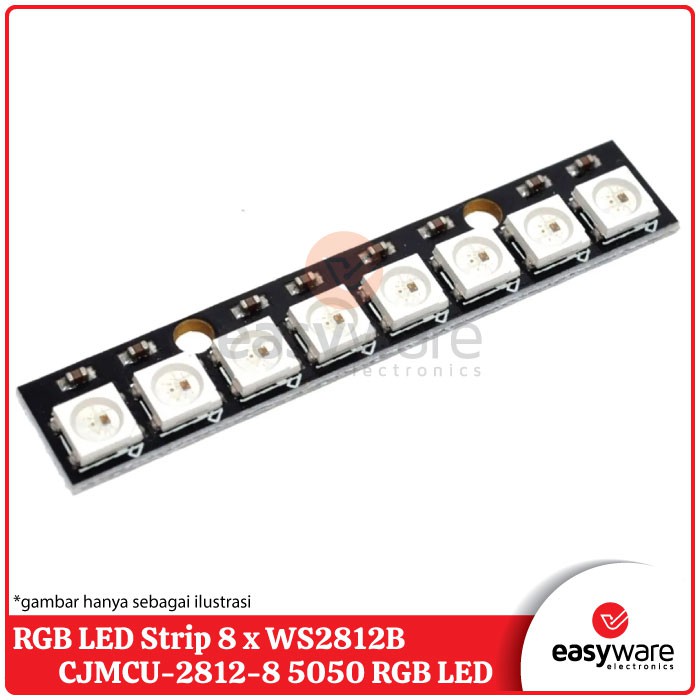

The strip consists of 8 individually addressed RGB LEDs with integrated controller. To control the module, one microcontroller's pin is sufficient, e.g. an Arduino. The LEDs are placed at equal distances on the strip with a length of 53 mm. Each one of the LEDs, consumes up to 20 mA, which, in this case gives a total value of approx. 160 mA. The strip can be powered with voltage from 4 V to 7 V.

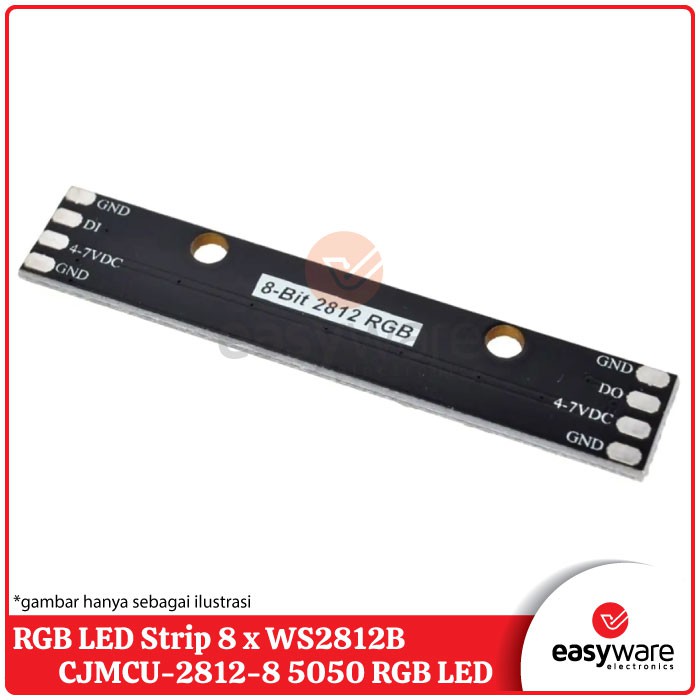

The used communication protocol allows the serial connection of the LEDs. Another circuit should be connected to the output connector, combining respectively 4-7VDC, GND and DOUT with DIN.
SPESIFICATIONS :
- Supply voltage: 4 V to 7 V
- Current consumption: approx. 20 mA per LED
- Applied diodes: LED RGB WS2812 (documentation)
- Number of LEDs: 8
- Strip's dimensions: 53 x 10 mm
PACKAGE :
- 1x LED strip RGB WS2812 5050 x 8 LEDs - 53mm
