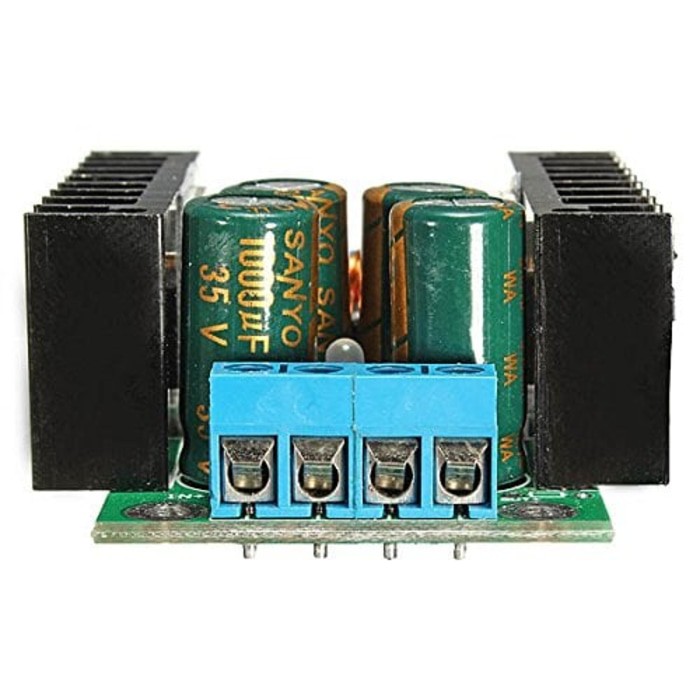

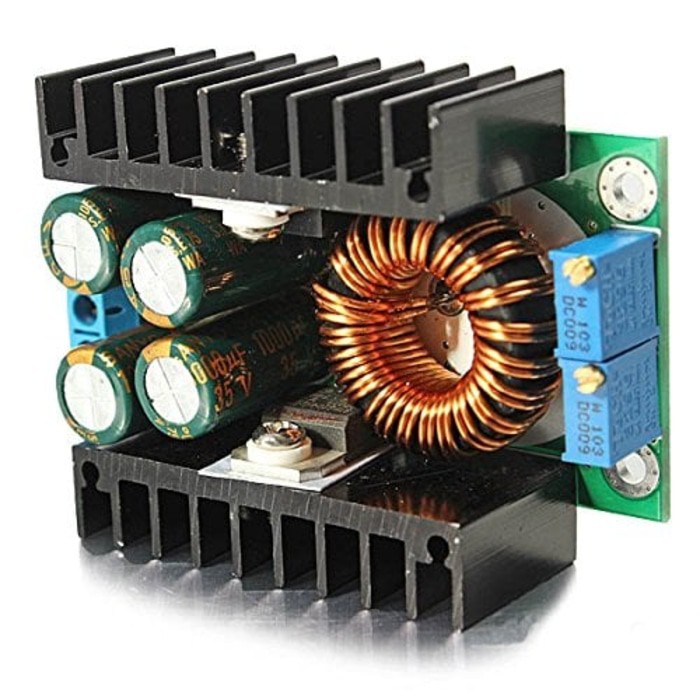

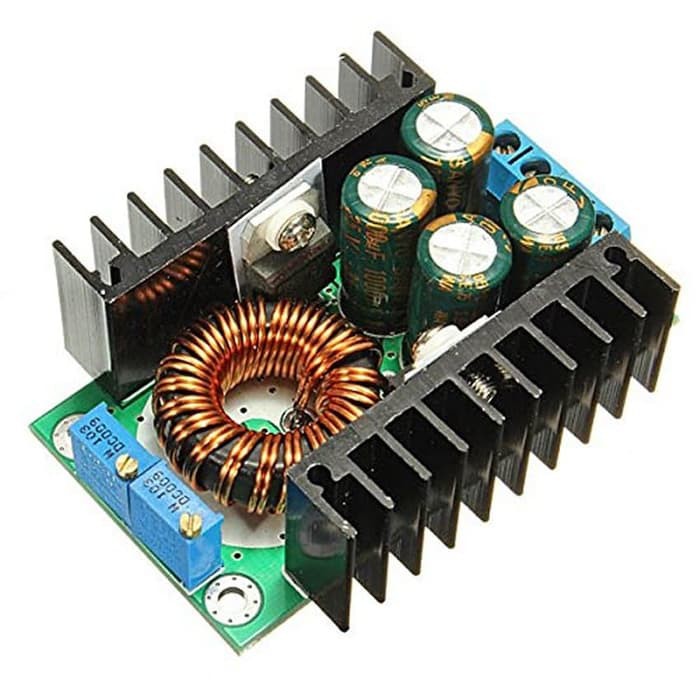

Detail Buck Converter Step Down DC-DC Power Module 7-32V to 0.8-28V 12A 300W

Fetures:
Module Properties: non-isolated step-down constant current ,constant voltage module (CC CV) voltage module
Input voltage : DC 7-32V;
Output voltage :DC 0.8-28V continuously adjustable;
Output Power: 300W, Maximum
Output Current: 12A MAX ( when power tube's temperature exceeds 65 degrees, please add cooling fan );
Constant current range :0.2-12A ( adjustable )
Conversion efficiency : up to about 95%; Input 24V Output 12V 5A ripple around 50mV
Size: 65*47*23.5mm
