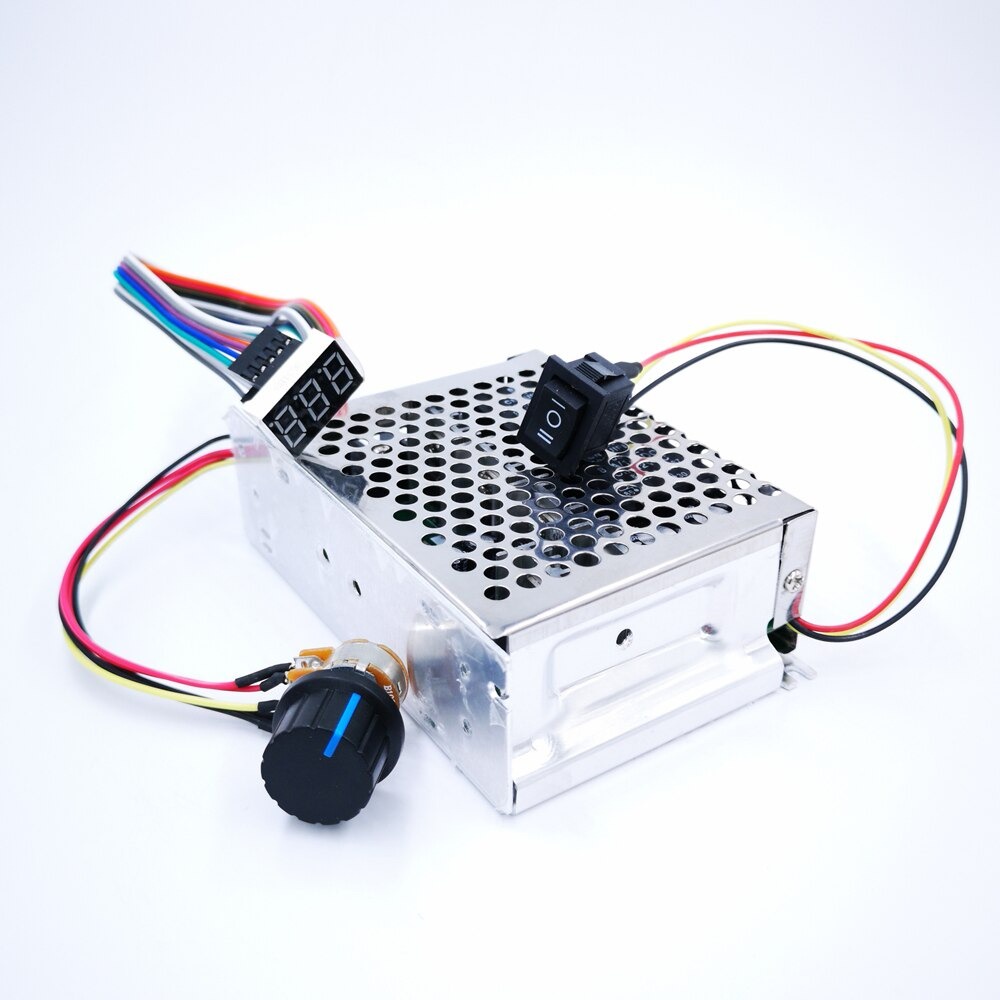

PWM Motor Speed Controller DC With Display Max 60A 12V 24V

Detail PWM Motor Speed Controller DC With Display Max 60A 12V 24V

Specification:
Input voltage: DC10-55V (equal to the rated voltage of the motor)
Output voltage: Linear under load
Maximum current: 60A
Continuous current: 40A
Speed Type: adjusting flow
Speed mode: potentiometer (linear)
Support motor: DC brush motor
Forward reverse: support
Speed range: 0--100%
Control frequency: 15KHZ
Wiring type: Terminal knob
Specifications: 100K (with switch)
Connection Type: Barrier Terminal Product
Weight: 249 grams

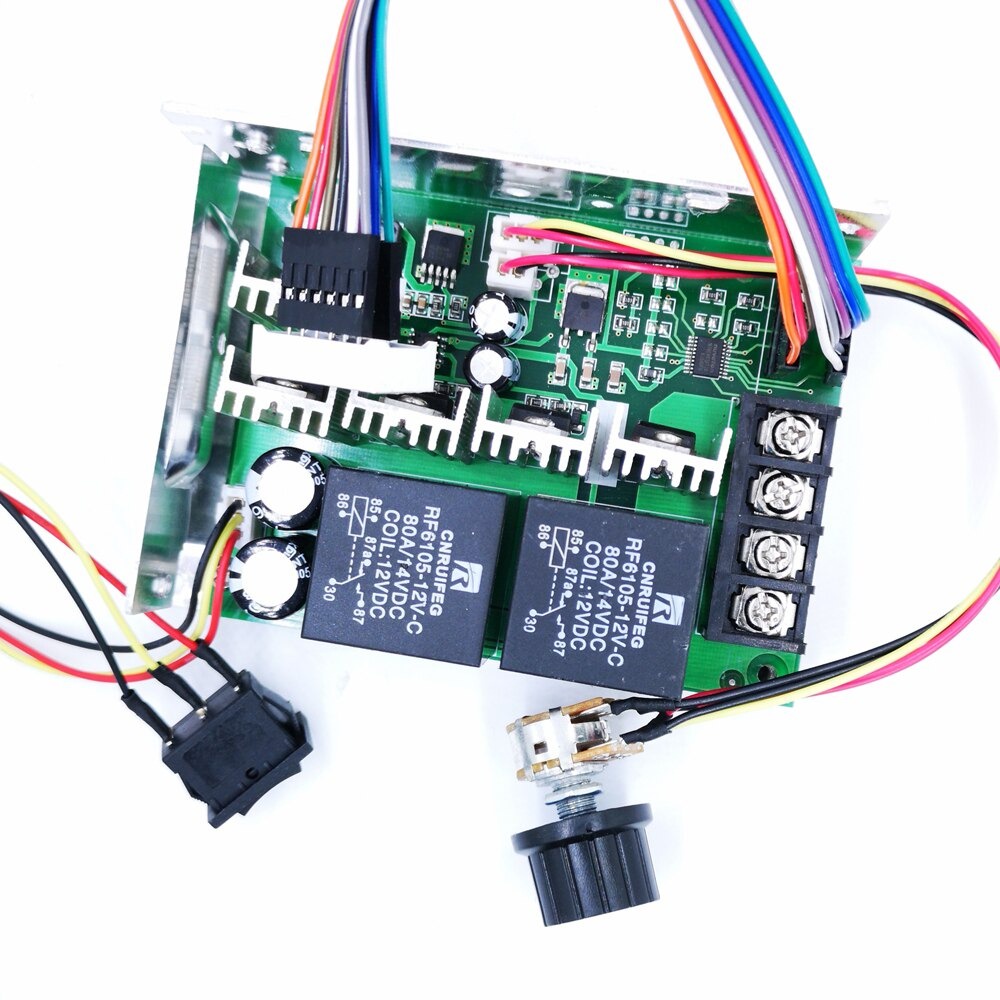

Motherboard size: 100MM * 76MM * 28MM

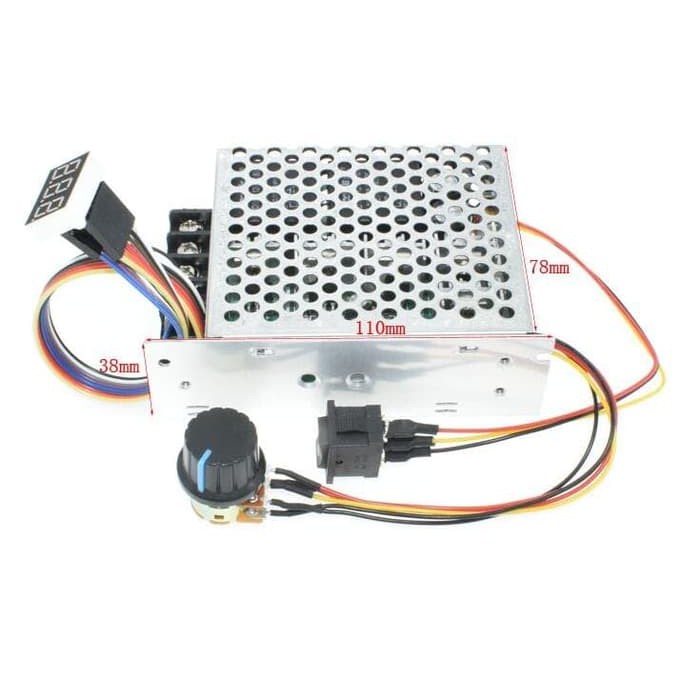

Shell size: 110 * 78 * 38MM

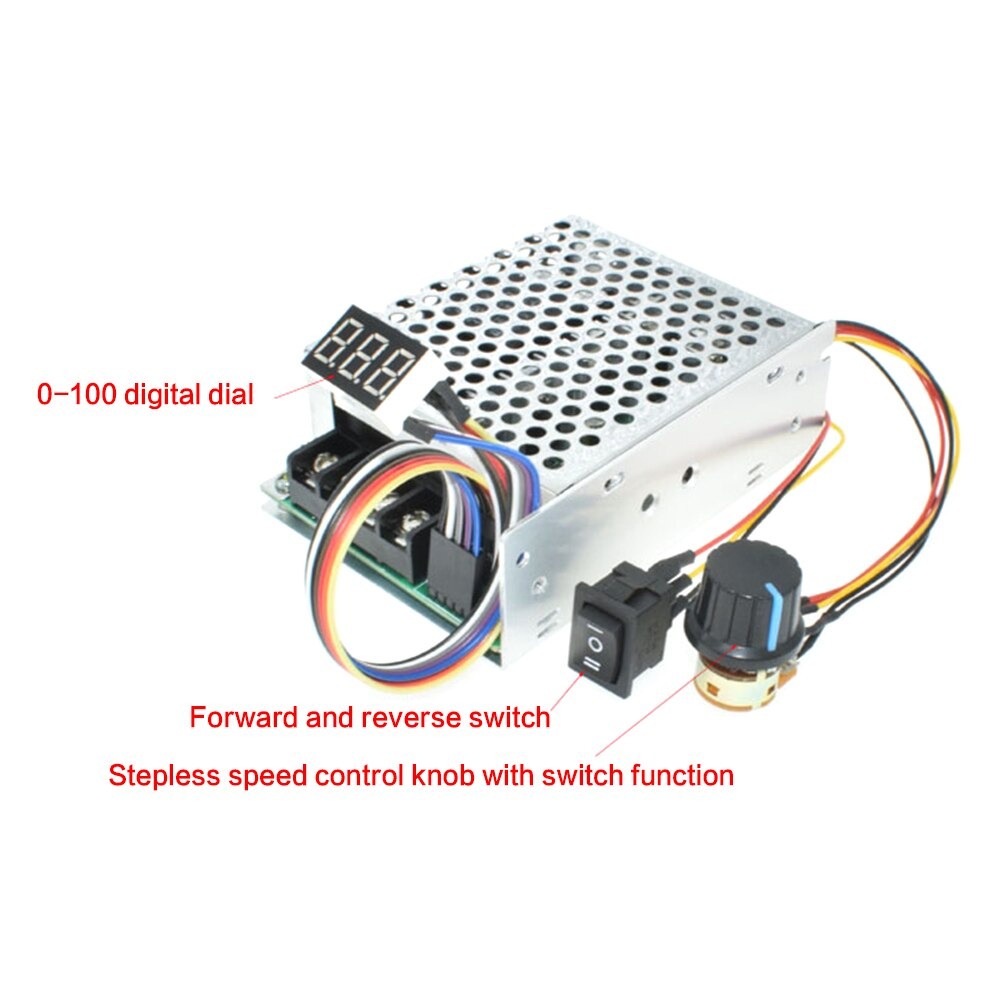

Note: The digital display is the full speed percentage of the motor 0-100 not the motor actual speed

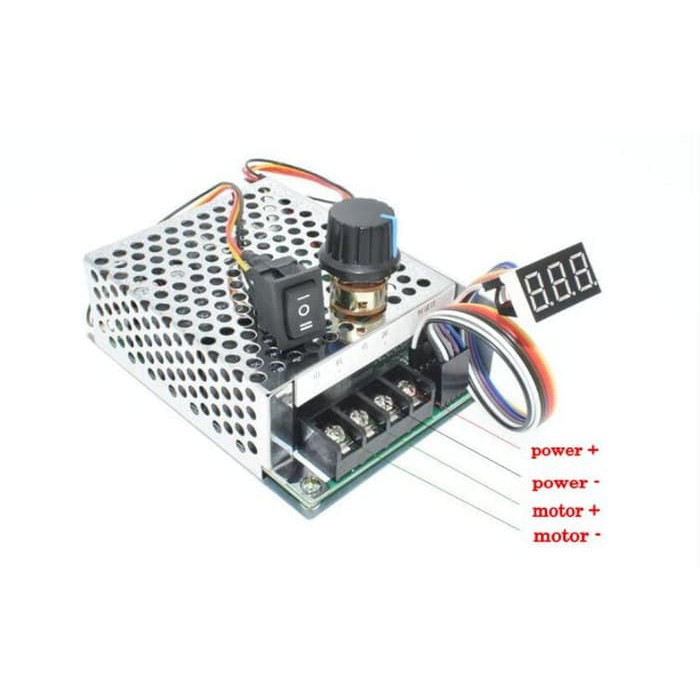

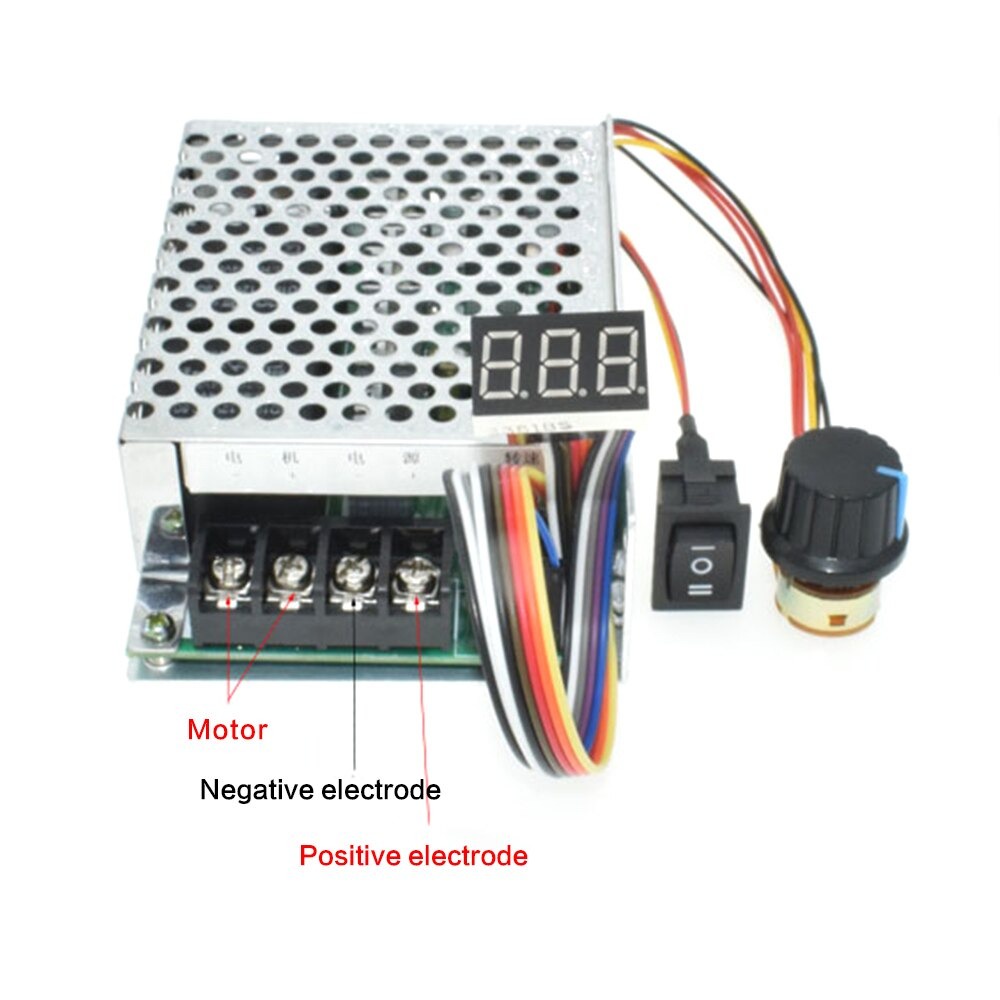

The input voltage must be positive and negative
The input voltage is within 10-55V DC to be equal to the rated voltage of the motor
