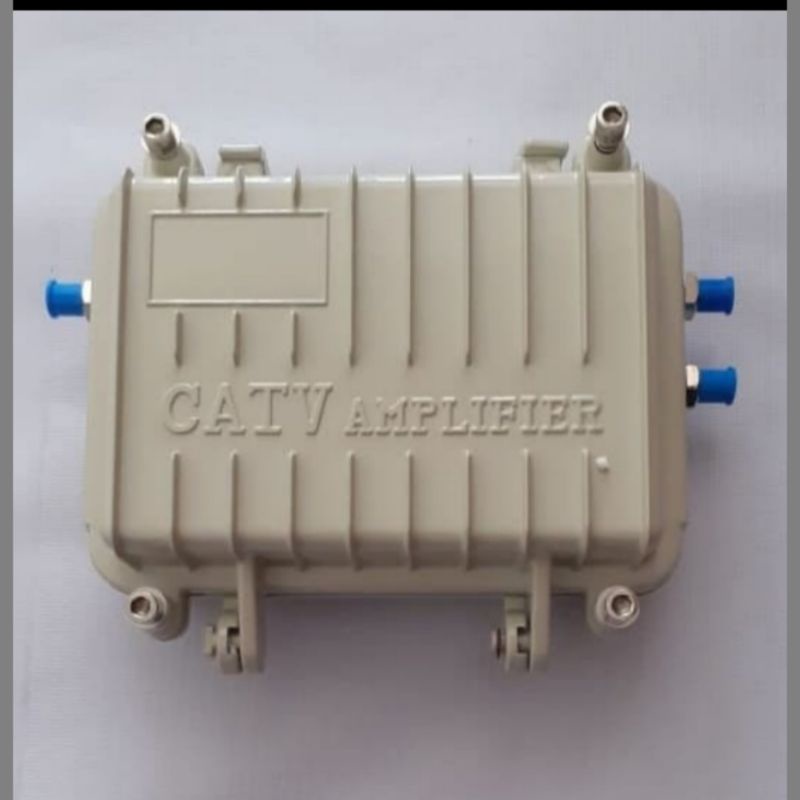

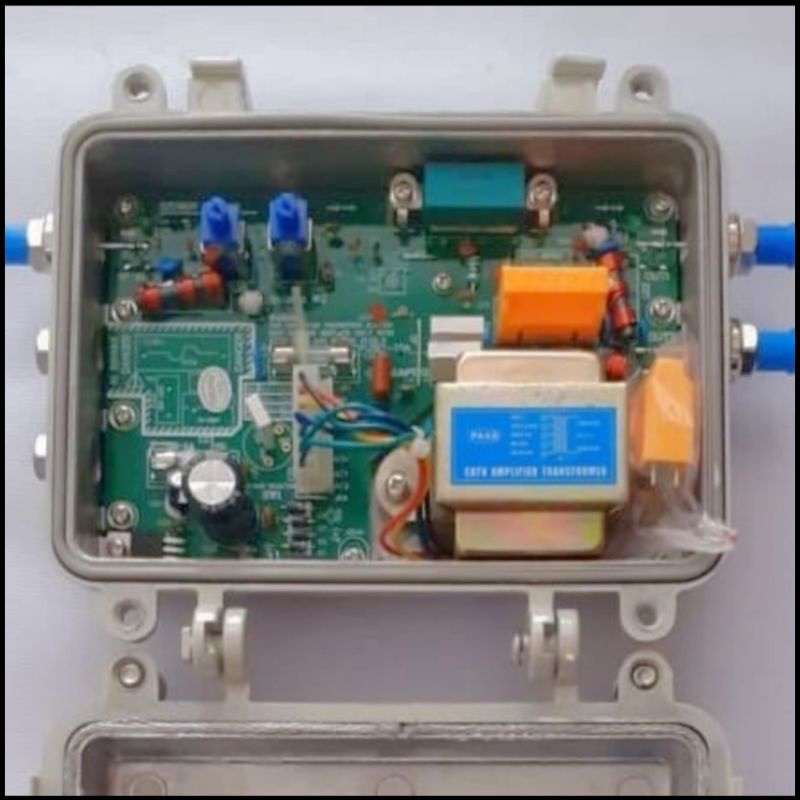

Detail Boster 90V Catv amplifier 2 output RF
(1) EQ range: 0~-20dB adjust continuously
(3) Gain range: 0-~20dB adjust continuously
(4) Output mode: 2 splitter.
(5) Power supply: AC90V
(6) Over-current protection and lightning-proof.
RF Parameter:
Freguency range 45~550/750 / 860MHz
EQ Adjustment 0~20dB adjustable
Flatness in band ≤± 0.75dB
IN/Out Impedance 75 W
Return loss ≥ 16:87~550MHz ≥ 14:550~862MHz
Output Level ≥110dBuv ≥118dBuv
Nominal working gain 32dB 40dB
Signal
Power Supply 90V
C/CTB 61dB 61dB
Current 6A/AC 90V/AC
Noise figure
RF Connector Type F- connector
ATT Adjustment 0~20dB adjustable
__________________________________
#boster #amplifier #catv
