Boster 60V catv amplifier 2 output rf

Detail Boster 60V catv amplifier 2 output rf

SPESIFIKASI :
(1) Output ke dua Port nilainya sama besarnya

(2) Frequency range: 45~550/750/862MHz.

(2) EQ  range: 0~-20dB adjust continuously

(3) Gain  range: 0-~20dB adjust continuously

(4) Output  mode: 2 splitter.

(5) Power supply:  AC60V

(6) Over-current protection and lightning-proof.



RF PARAMETER :
Freguency range 45~550/750 / 860MHz

EQ Adjustment 0~20dB adjustable

Flatness in band ≤± 0.75dB

IN/Out Impedance 75 W

Return loss ≥ 16:87~550MHz ≥ 14:550~862MHz

Output Level ≥110dBuv ≥118dBuv

Nominal working gain 32dB 40dB

Signal Power Supply 60V

C/CTB 61dB 61dB

Current 6A/AC 60V/AC

Noise figure RF Connector Type F- connector

ATT Adjustment 0~20dB adjustable

Power Consumption 12W  (Max)

#boster #amplifier #boster 60v

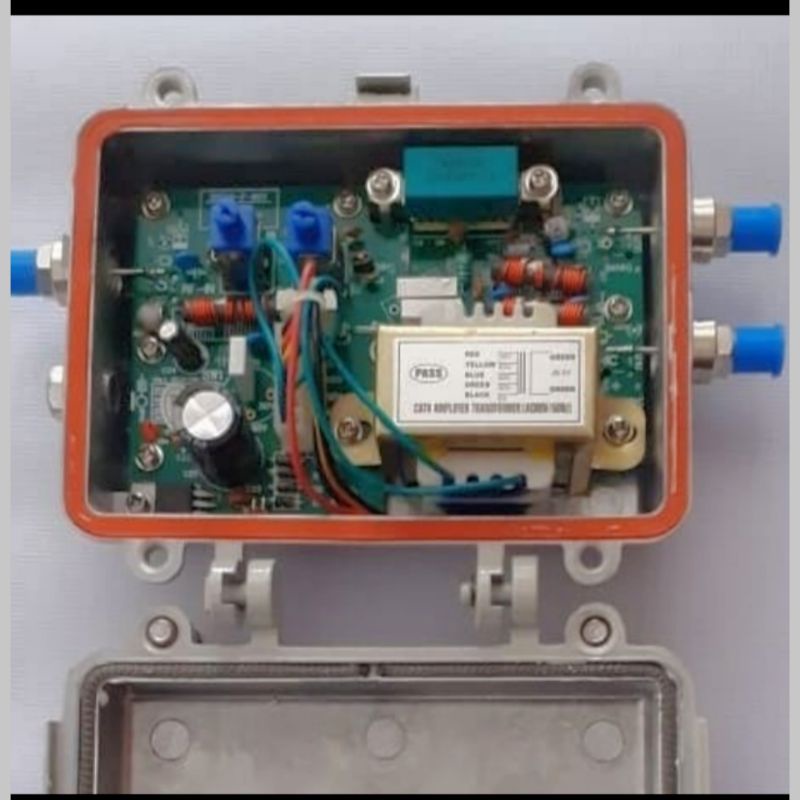

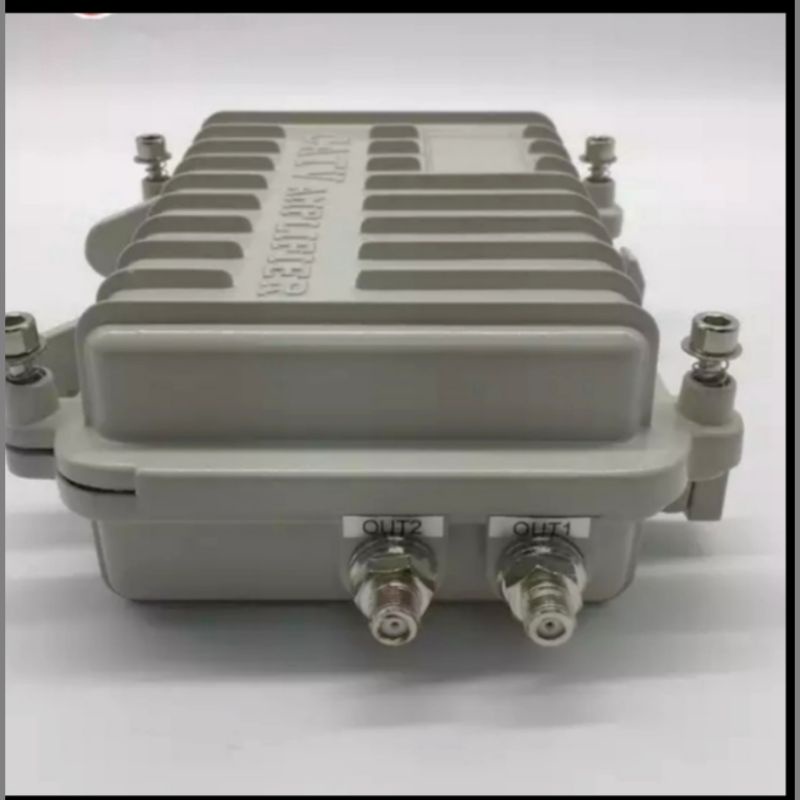

Gambar produk
