Bluetooth MP3 Audio Receiver Module Lossless MH-M28 BLT 4.2 Decoder

Detail Bluetooth MP3 Audio Receiver Module Lossless MH-M28 BLT 4.2 Decoder

Deskripsi Bluetooth MP3 Audio Receiver Module Lossless MH-M28 BLT 4.2 Decoder
MH-M18/M28/M38 is a low-power Bluetooth design solution that supports the latest Bluetooth 4.2 transmission, two-channel stereo lossless playback, and Bluetooth wireless transmission when the module is connected to Bluetooth, which is very convenient. In an open environment, the Bluetooth connection distance can be up to 20 meters.
Widely used in a variety of Bluetooth audio reception, a variety of audio DIY modification.

1. Bluetooth V4.2 version, support Bluetooth automatic connection technology, support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual channel output.

2. After the module is powered on, the mobile phone searches for the Bluetooth name MH-M18/MH-M28/MH-M38, and can play music after connecting Bluetooth.

3, module blue indicator light:

When the Bluetooth is not connected, the indicator light flashes quickly;

When the Bluetooth connection is on, the indicator light is always on;

1. Power supply: You can directly use the MICRO USB Android cable 5V for direct power supply, or you can also connect 5V power supply or 3.7V lithium battery (as shown below). Note that the 5V and 3.7V power supply interfaces are different. The 5V voltage is connected to 5V and GND, and the 3.7V lithium battery is connected to VBAT and GND.

2. Audio output: The earphone can be directly connected to the 3.5mm audio interface, or it can be wired for the audio input of the power amplifier board (the interface L/R/AGND can be directly wired as shown).

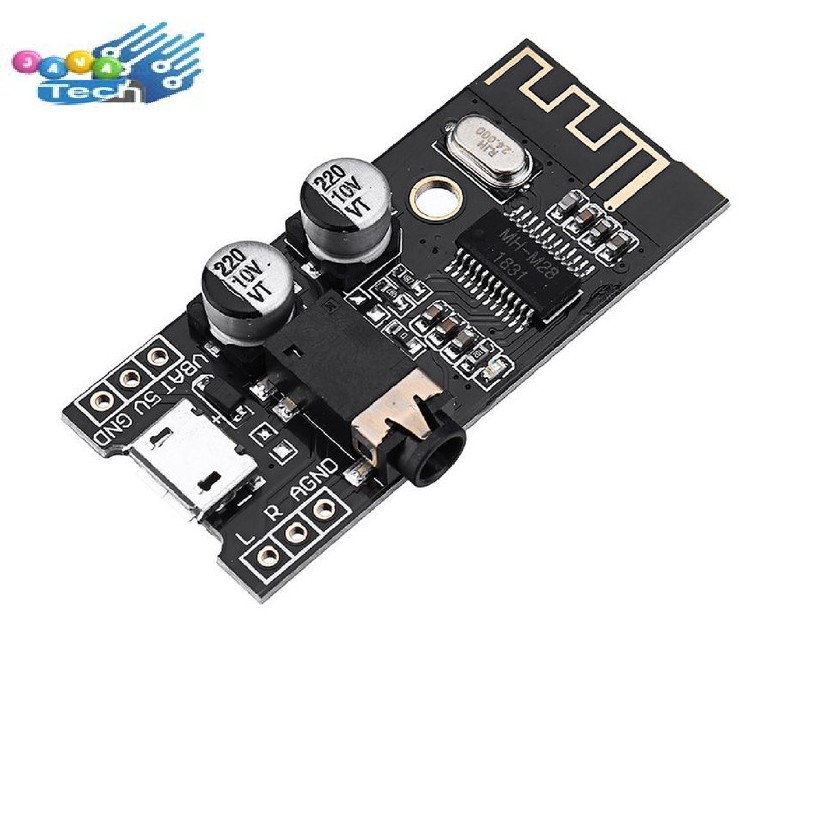

Gambar produk
