Detail Modul Attiny85 Digispark kickstarter mini usb Development Board

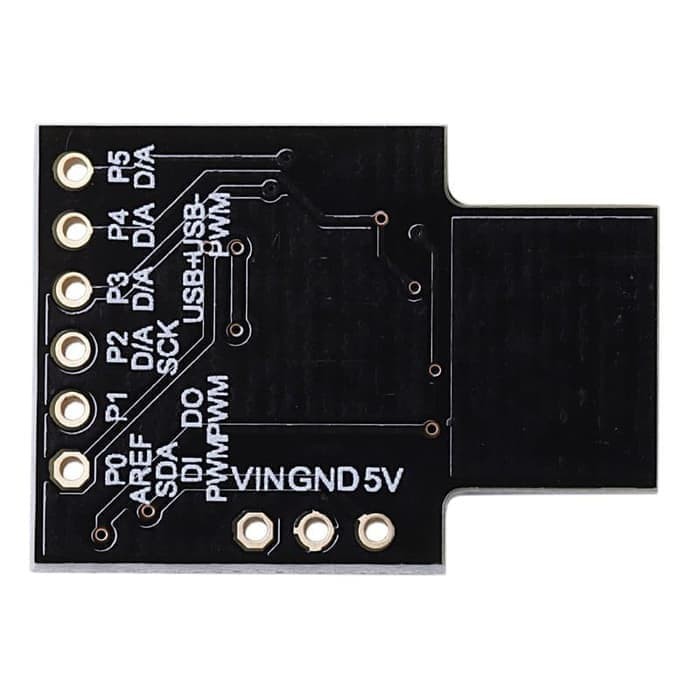

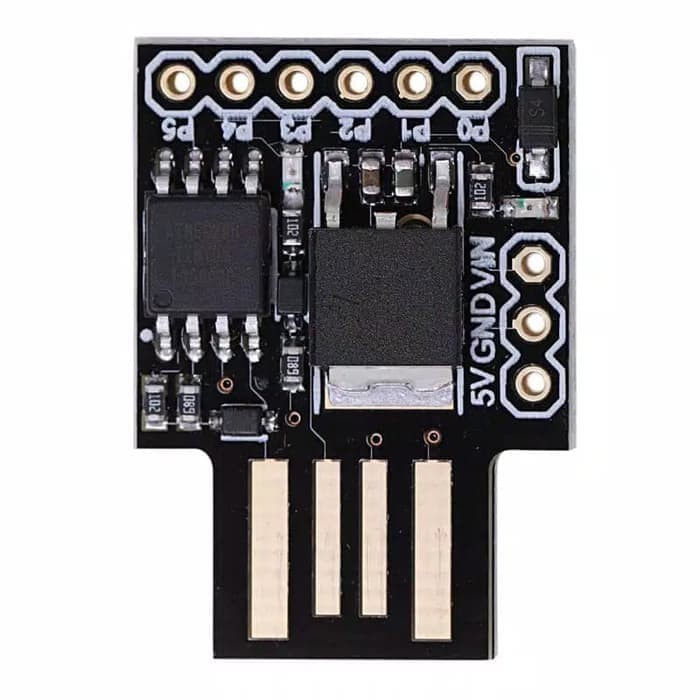

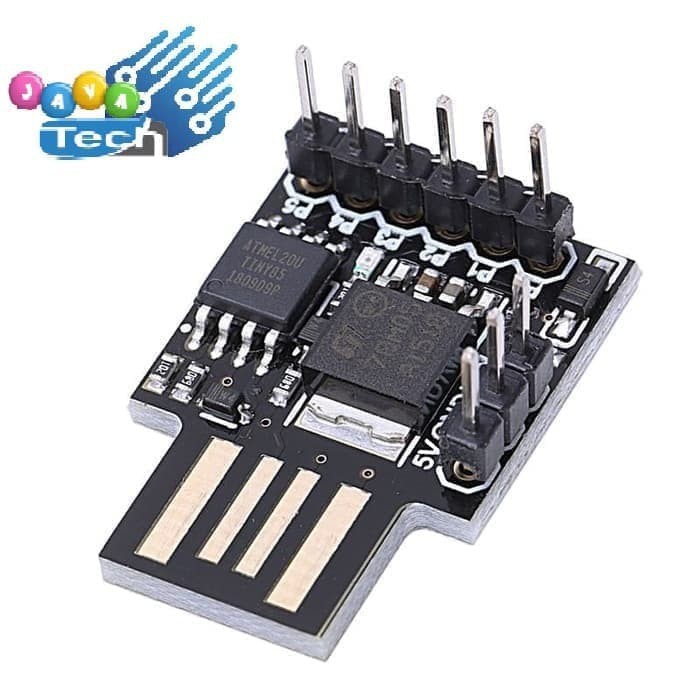

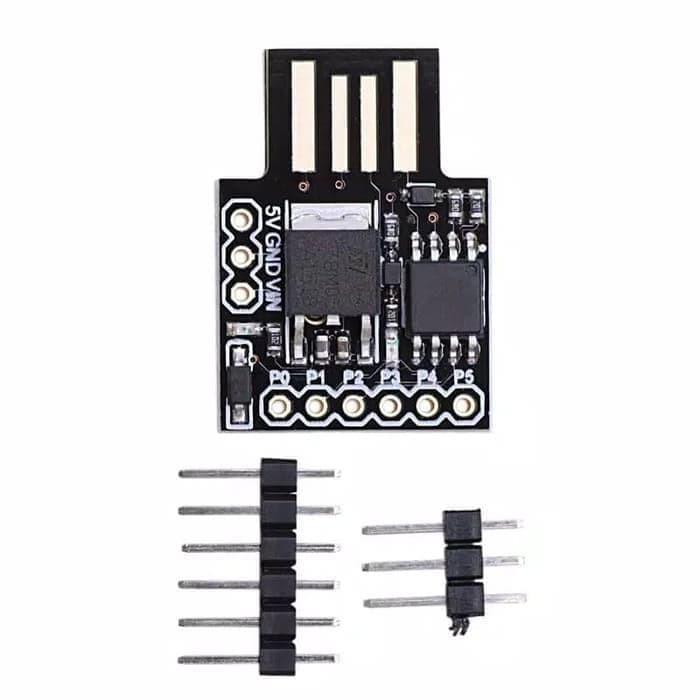

Modul Attiny85 Digispark kickstarter mini usb Development Board
The Specs:

Support for the Arduino IDE 1.0+ (OSX / Win / Linux)
Power via USB or External Source - 5v or 7-35v (automatic selection)
On-board 500ma 5V Regulator
Built-in USB (and serial debugging)
6 I / O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
8k Flash Memory (about 6k after bootloader)
I2C and SPI (vis USI)
PWM on 3 pins (more possible with Software PWM)
ADC on 4 pins
Power LED and Test / Status LED (on Pin0)
