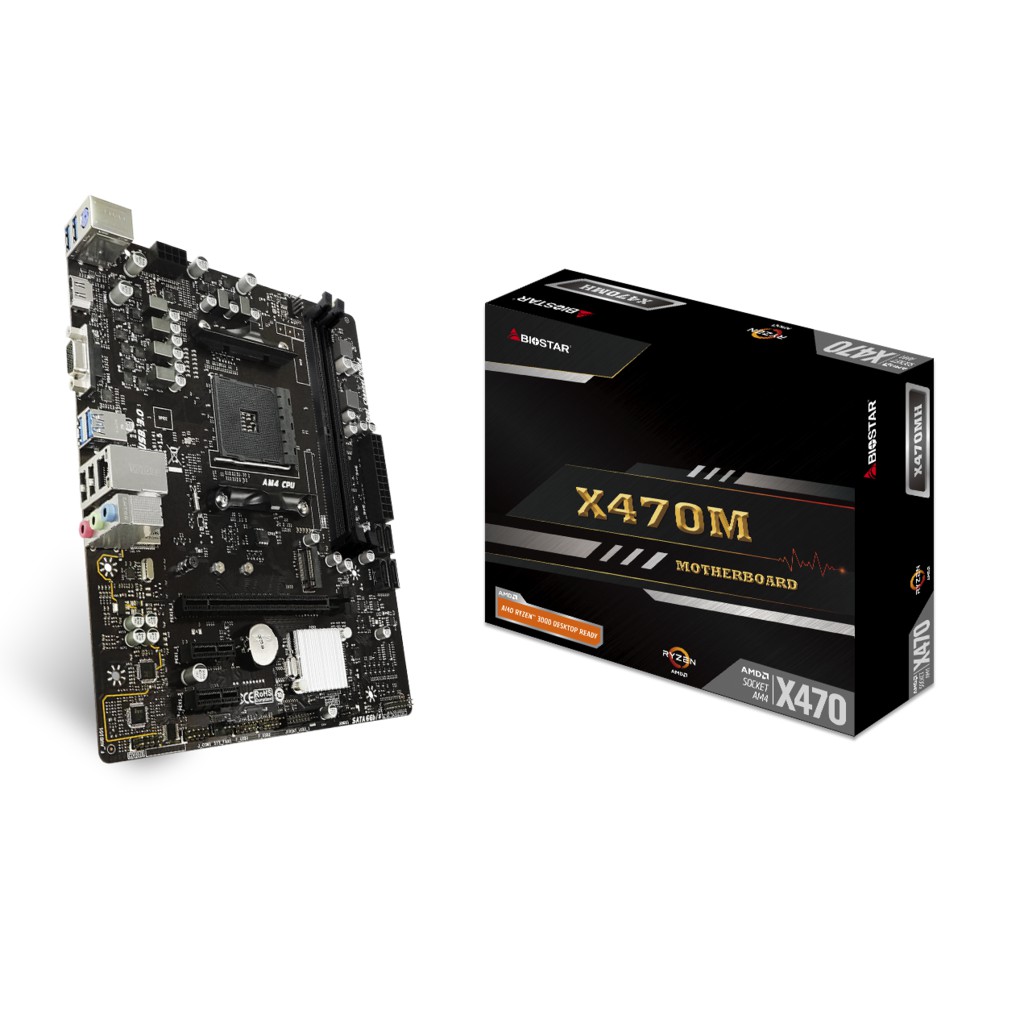

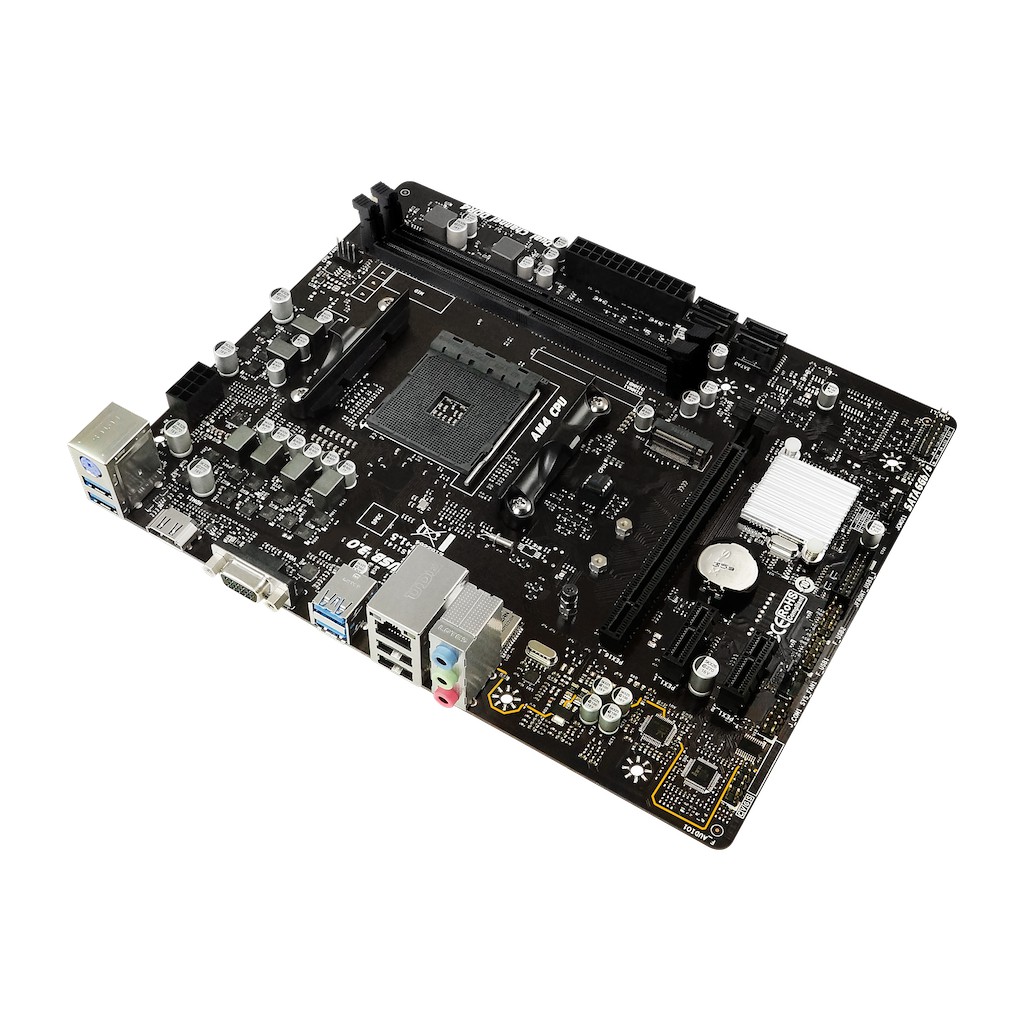

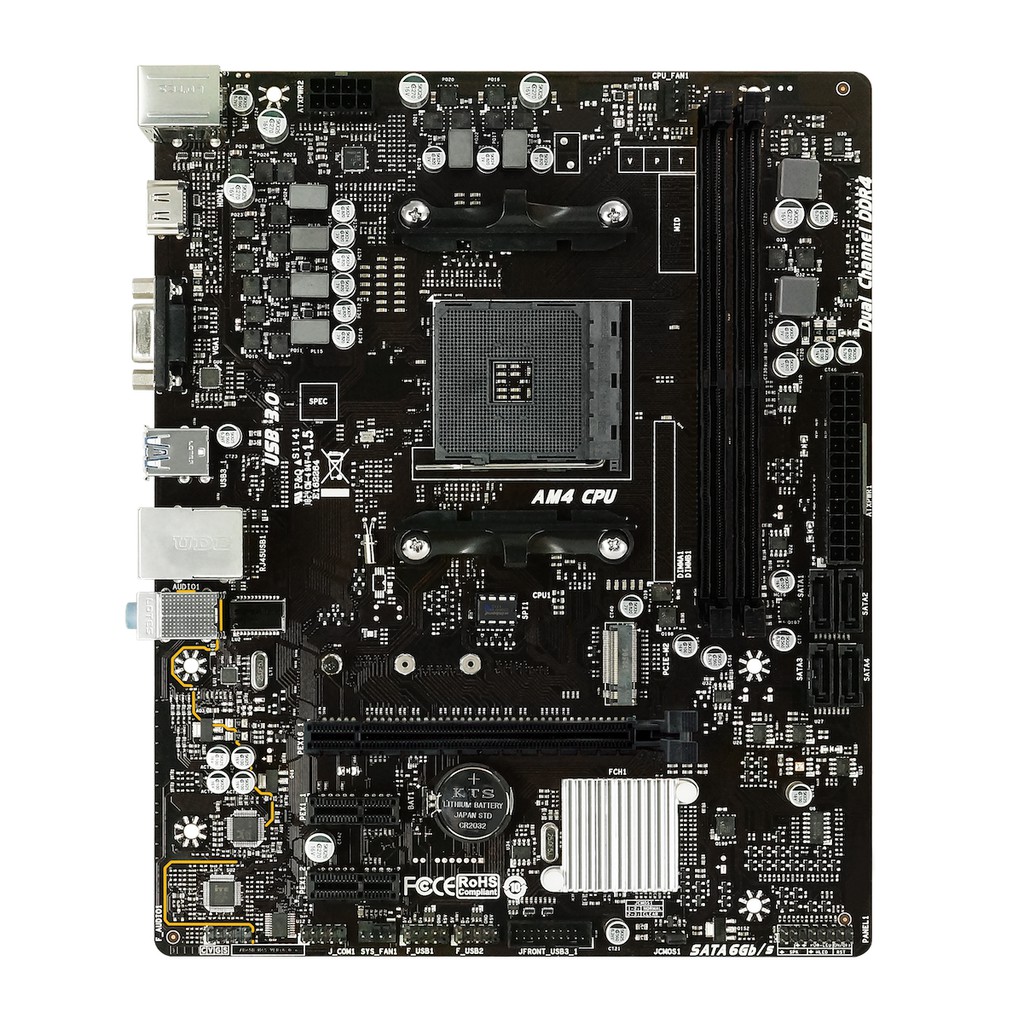

BIOSTAR Motherboard X470MH AMD X470 AM4 DDR4 ATX Motherboard

Detail BIOSTAR Motherboard X470MH AMD X470 AM4 DDR4 ATX Motherboard

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

X470MH Ver. V6.x
Socket : AM4
Support AMD Ryzen CPU / APU
AMD X470 single chip architecture
Support 2-DIMM DDR4-1866/ 2133/ 2400/ 2667/ 2933/ 3200(OC)
Support Realtek Gigabit LAN
Support USB 3.1 Gen1
Support HDMI, VGA Ports

Chipset
AMD X470

CPU SUPPORT
Supports AMD AM4 Socket for 3rd, 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega
Graphics/Athlon with Radeon Vega Graphics Processors

MEMORY
Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2667/ 2933/ 3200(OC)
2 x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory
Each DIMM supports non-ECC 8/16 GB DDR4 module

STORAGE
4x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1x M.2 (M Key) :
Supports PCI-E 3.0 x4 (32Gb/s) & SATA III (6.0Gb/s) SSD (Ryzen series - Summit Ridge / Pinnacle Ridge / Raven Ridge);
Supports SATA III (6.0Gb/s) SSD (A-series APU - Bristol Ridge)

USB
6x USB 3.1 Gen1 (5Gb/s) port (4 on rear I/Os and 2 via internal headers)
6x USB 2.0 port (2 on rear I/Os and 4 via internal headers)

EXPANSION SLOT
2x PCIe 2.0 x1 Slot
1x PCIe 3.0 x16 Slot (The bandwidth is depended on CPU)

INTERNAL I/O
4x SATA III 6.0Gb/s Connector
2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.1 Gen1 (5Gb/s) Header (each header supports 2 USB 3.1 Gen1 ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x COM Port Header
1x Clear CMOS Header

DIMENSION
Micro ATX Form Factor Dimension: 198 mm x 244 mm ( W x L )

ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x Fully Setup Driver CD
1 x Quick Guide

Gambar produk
