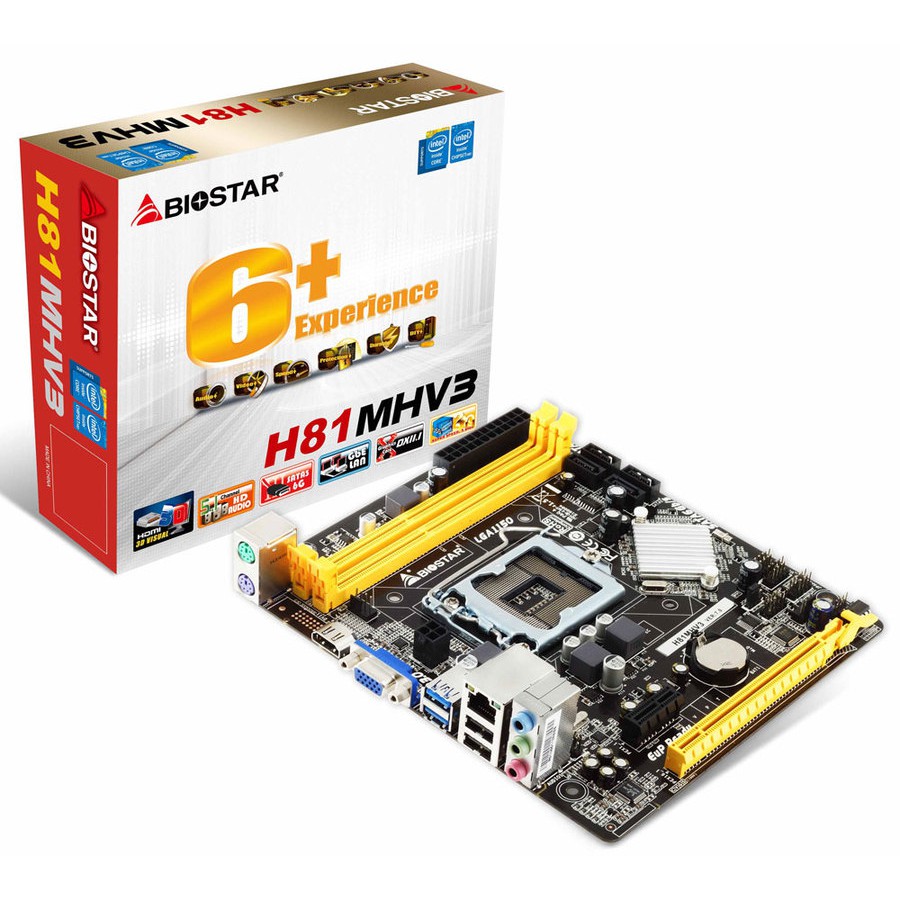

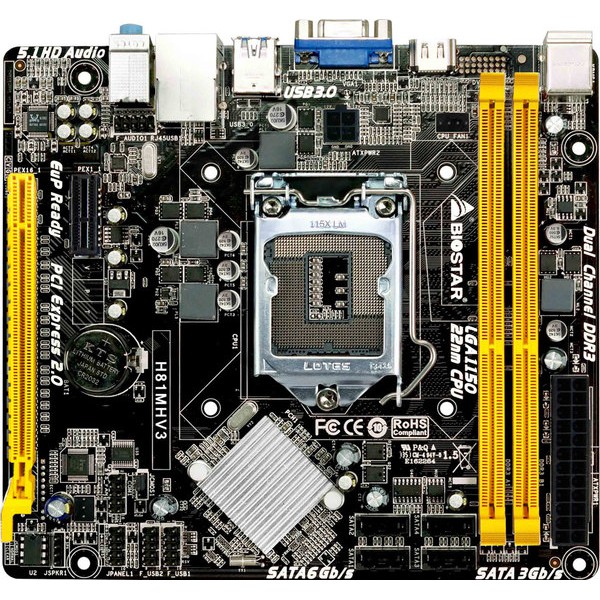

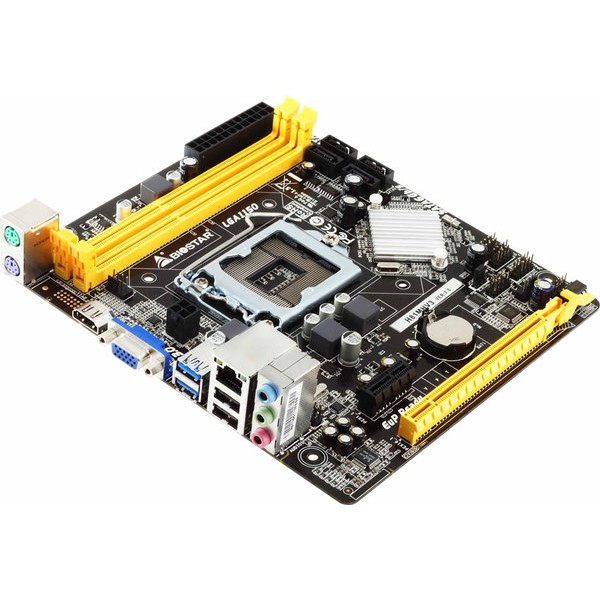

BIOSTAR Motherboard H81MHV3 Intel H81 LGA1150 DDR3

Detail BIOSTAR Motherboard H81MHV3 Intel H81 LGA1150 DDR3

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

H81MHV3 Ver. 7.x
Socket : 1150
Support the Intel 4th generation Core i7 and Core i5 processors in the 1150 package
Intel H81 single chip architecture
Support 2-DIMM DDR3-1600/1333 up to 16G maximum capacity

Chipset
Intel H81

CPU SUPPORT
Intel® Core™ i7 LGA 1150 Processor
Intel® Core™ i5 LGA 1150 Processor
Intel® Core™ i3 LGA 1150 Processor
Intel® Pentium® LGA 1150 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt

MEMORY
Support Dual Channel DDR3 1600/1333/1066 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 16GB Memory

INTEGRATED VIDEO
By CPU model
Supports DX11.1

STORAGE
2 x SATA III Connectors (6Gb/s)
2 x SATA II Connector s (3Gb/s)

LAN
Realtek RTL8111G - 10/100/1000Mb/s Controller

AUDIO CODEC
Realtek ALC662 6-Channel HD Audio

USB
2 x USB 3.0 Port
2 x USB 2.0 Port
2 x USB 2.0 Header

EXPANSION SLOT
1 x PCI-E 2.0 x16 Slot
1 x PCI-E 2.0 x1 Slot

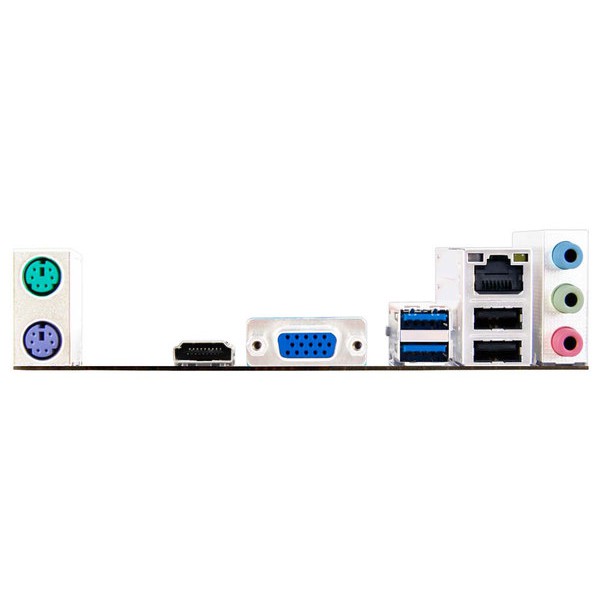

REAR I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector
1 x VGA Port
1 x LAN Port
3 x Audio Jacks

INTERNAL I/O
2 x USB 2.0 Header
2 x SATA III Connector (6Gb/s)
2 x SATA II Connector (3Gb/s )
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x COM Port Header

H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

DIMENSION
Micro ATX Form Factor Dimension: 19cm x 17cm ( W x L )

OS SUPPORT
Supports Windows 7 / 8 / 8.1 / 10(x64)

BUNDLE SOFTWARE
BIO-Remote2
Smart Speed LAN

ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
