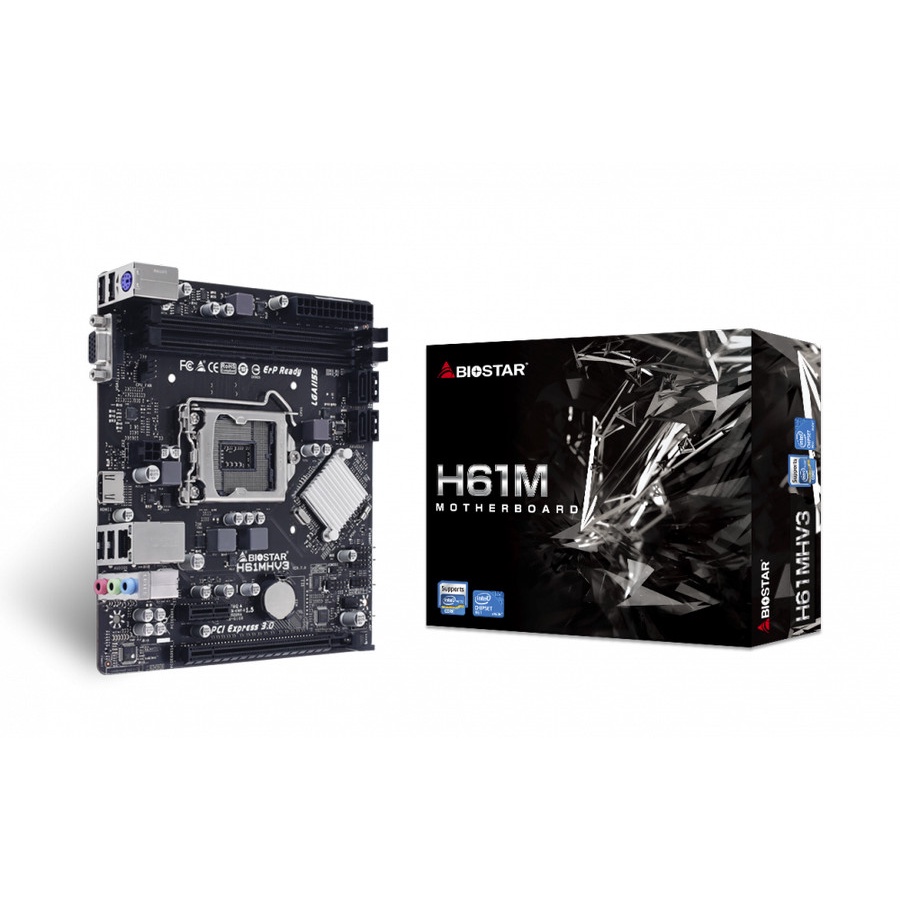

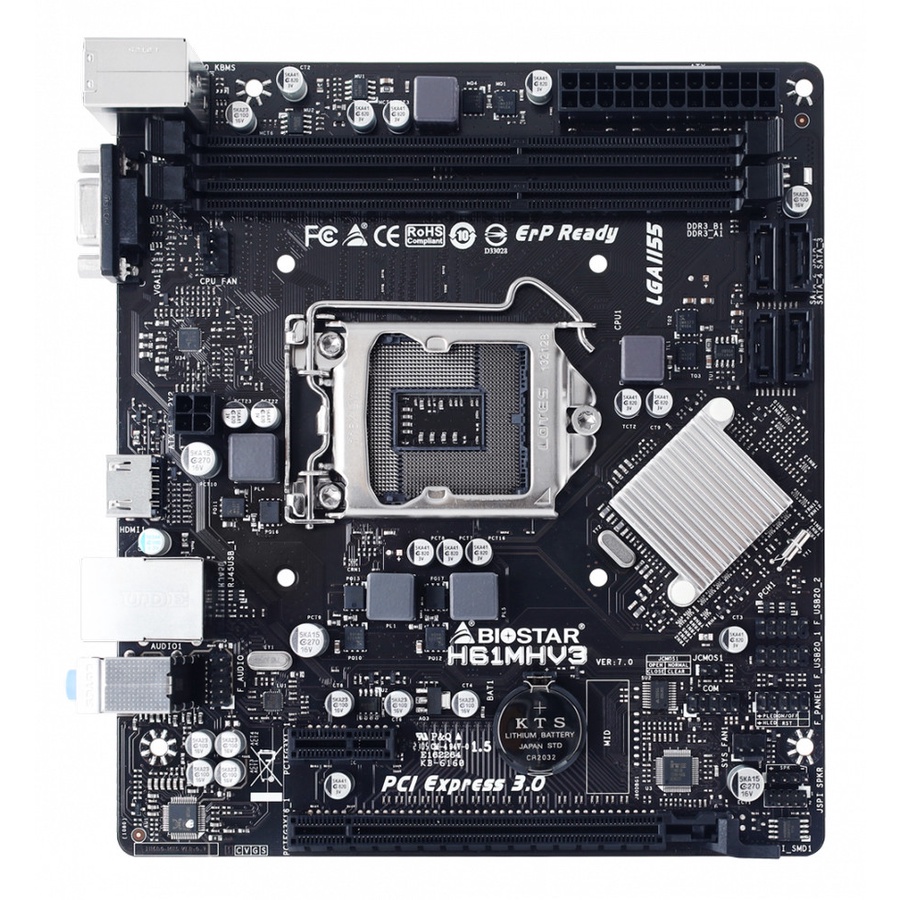

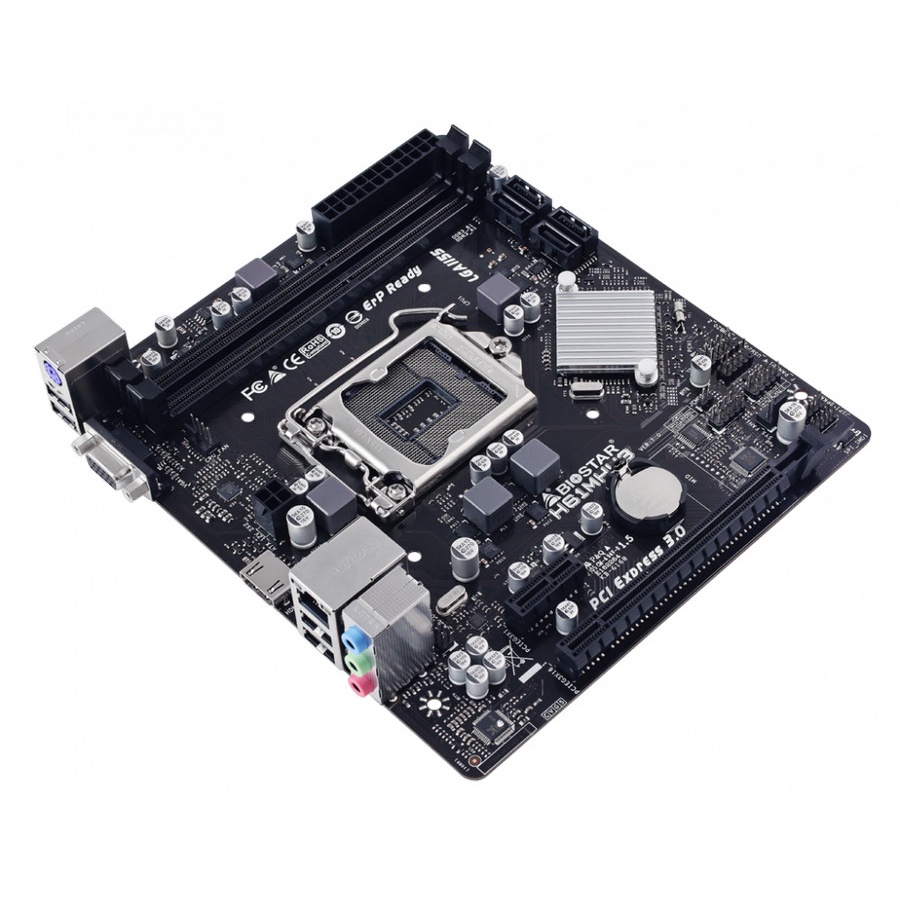

BIOSTAR Motherboard H61MHV3 Intel H61 DDR3 LGA 1155

Detail BIOSTAR Motherboard H61MHV3 Intel H61 DDR3 LGA 1155

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

H61MHV3 Ver. 7.0
Socket : 1155

Supports Intel 2nd and 3rd generation Core i7 / i5 / i3 / Pentium / Celeron processors in the 1155 package
Supports 2 DIMM of DDR3 1600/1333/1066 MHz up to 16GB maximum capacity
Supports USB 2.0
Supports HDMI
Supports GbE LAN

Chipset
Intel H61

CPU SUPPORT
Support Intel Core™ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1155 package

MEMORY
Supports Dual Channel DDR3 1066/ 1333/ 1600
2 x DDR3 DIMM Memory Slot, Max. Supports up to 16 GB Memory

STORAGE
4 x SATA II (3Gb/s)

LAN
Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 module

USB
8 x USB 2.0 port (4 on rear I/Os and 4 via internal headers)

EXPANSION SLOT
1 x PCIe 2.0 x1
1 x PCIe 3.0 x16 Slot (x16 mode, depending on CPU)

REAR I/O
1 x PS/2 Keyboard / Mouse
1 x VGA Port
1 x HDMI Port
4 x USB 2.0 Ports
1 x LAN port
3 x Audio Jack

INTERNAL
I/O 4 x SATA II (3Gb/s)
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header

DIMENSION
Micro ATX Form Factor Dimension: 17cm x 19.1cm ( W x L )

OS SUPPORT
Supports Windows 7/ 8/ 8.1/ 10
1 x COM Port Header

ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
