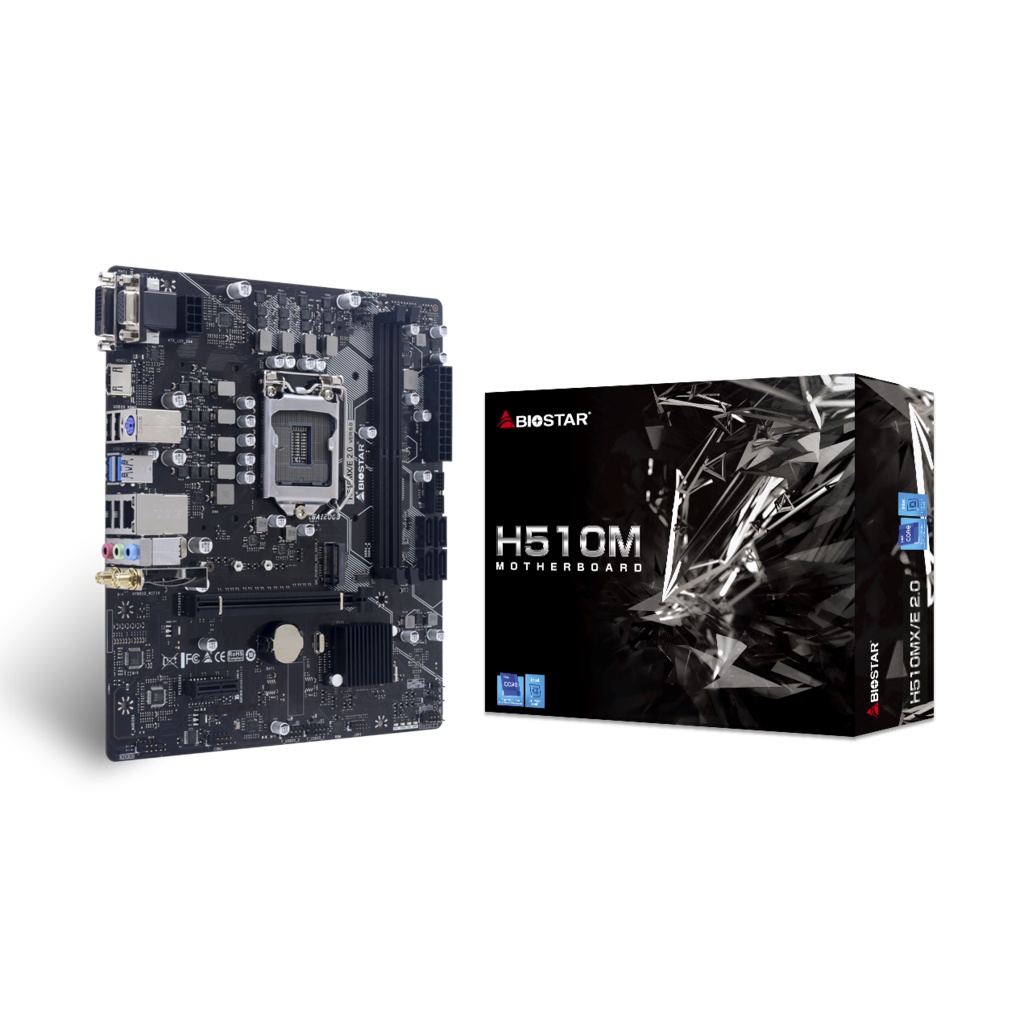

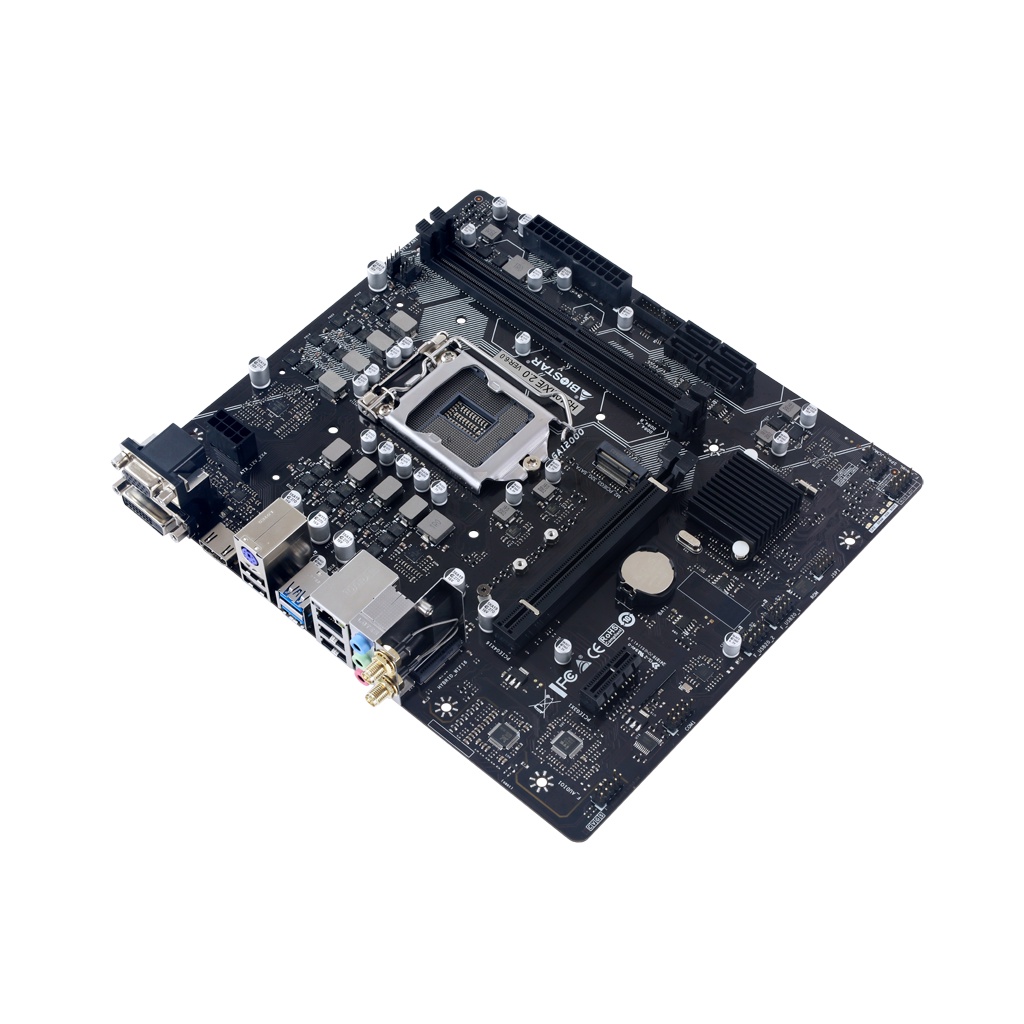

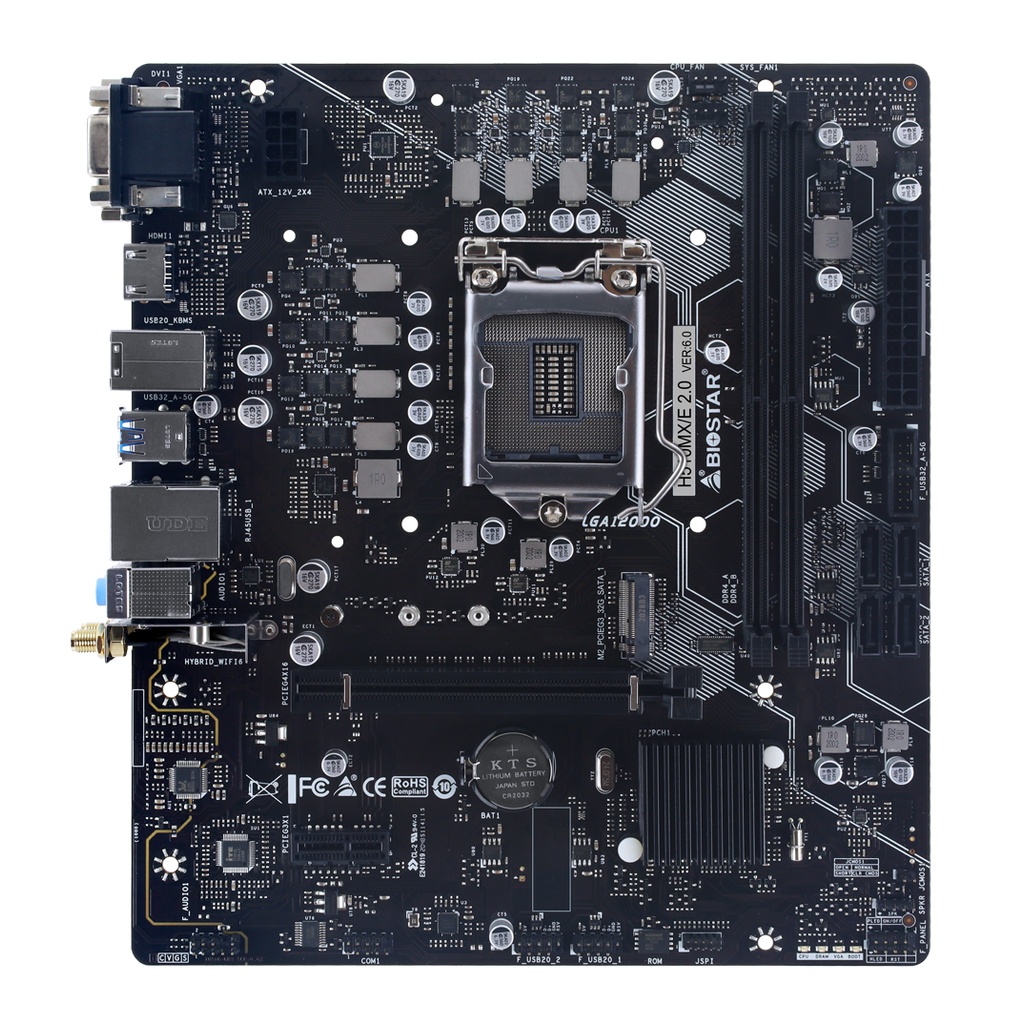

Biostar Motherboard H510MX/E Intel H510 DDR4 LGA 1200

Detail Biostar Motherboard H510MX/E Intel H510 DDR4 LGA 1200

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

H510MX/E 2.0 Ver. 6.0
Socket : 1200

Supports 10th/11th Generation Intel Core™ Processor
Intel H510 single chip architecture
Supports 2-DIMM DDR4- 3200/ 2933/ 2666/ 2400/2133/ 1866 up to 64 GB Memory
Supports PCIe 4.0
Supports PCIe M.2 3.0 (32Gb/s)
Supports USB 3.2 Gen1
Supports WiFi 6 module (No WiFi 6 card included)

Chipset
Intel H510

CPU SUPPORT
Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package

MEMORY
Supports Dual Channel DDR4 3200/ 2933/ 2666/ 2400/ 2133/ 1866
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module

STORAGE
Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports
4 x SATA III Connectors (6Gb/s)
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module.
Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD & SATA III (6Gb/s) SSD

EXPANSION SLOT
1 x PCIe 3.0 x1 Slot
1 x PCIe 3.0/ 4.0 x16 Slot (x16 mode)

INTERNAL I/O
4 x SATA III Connectors (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header

DIMENSION
Micro ATX Form Factor Dimension: 20.8 cm x 23.6 cm ( W x L )

OS SUPPORT
Supports Windows 10(64bit) / 11(64bit)

ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
1 x WiFi accessories

Gambar produk
