BIOSTAR Motherboard H310MHP Intel H310 LGA1151 DDR4 MICRO ATX

Detail BIOSTAR Motherboard H310MHP Intel H310 LGA1151 DDR4 MICRO ATX

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

H310MHP Ver. 7.x
Socket : 1151
Supports 9th & 8th Generation Intel® Core™ Processor
Intel H310 single chip architecture
Support Dual Channel DDR4 2666/2400/2133/1866 MHz
Support HDMI 4K resolution
Support GbE LAN
Support USB 3.2 Gen1

Chipset
Intel H310

CPU SUPPORT
Socket 1151 for 9th / 8th Gen Intel® Core, Pentium and Celeron processors
Maximum CPU TDP (Thermal Design Power): 95Watt

MEMORY
Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666
2x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 module

STORAGE
4 x SATA III Connectors (6Gb/s)

LAN
RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

USB
4x USB 3.2(Gen1) port (2 on rear I/Os and 2 via internal header)
6x USB 2.0 port (4 on rear I/Os and 2 via internal header)

EXPANSION SLOT
2x PCIe 2.0 x1 Slot
1x PCIe 3.0 x16 Slot

INTERNAL I/O
4x SATA III Connector
1x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.2(Gen1) Header (each header supports 2 USB 3.2(Gen1) ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Clear CMOS Header
1x COM Port Header

H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

DIMENSION
Micro ATX Form Factor Dimension: 226mm x 171mm ( W x L )

ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide

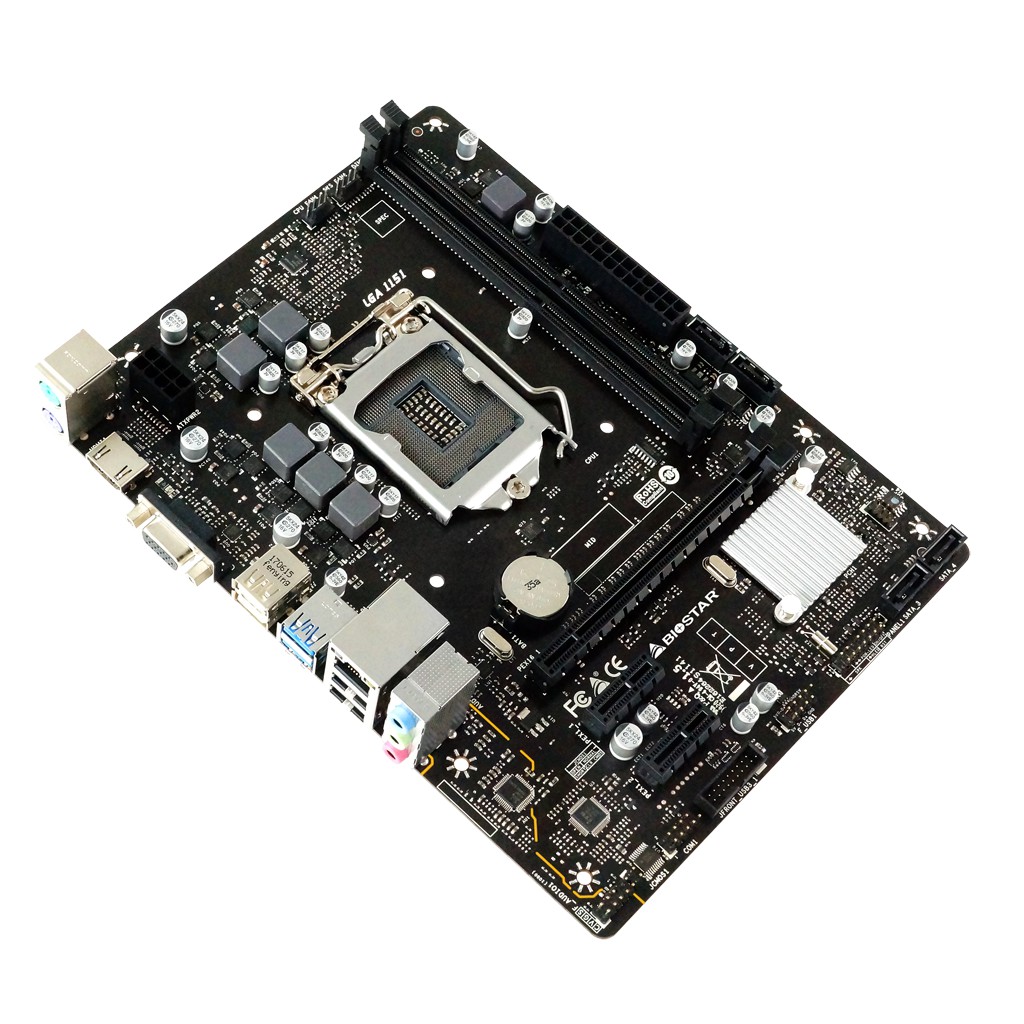

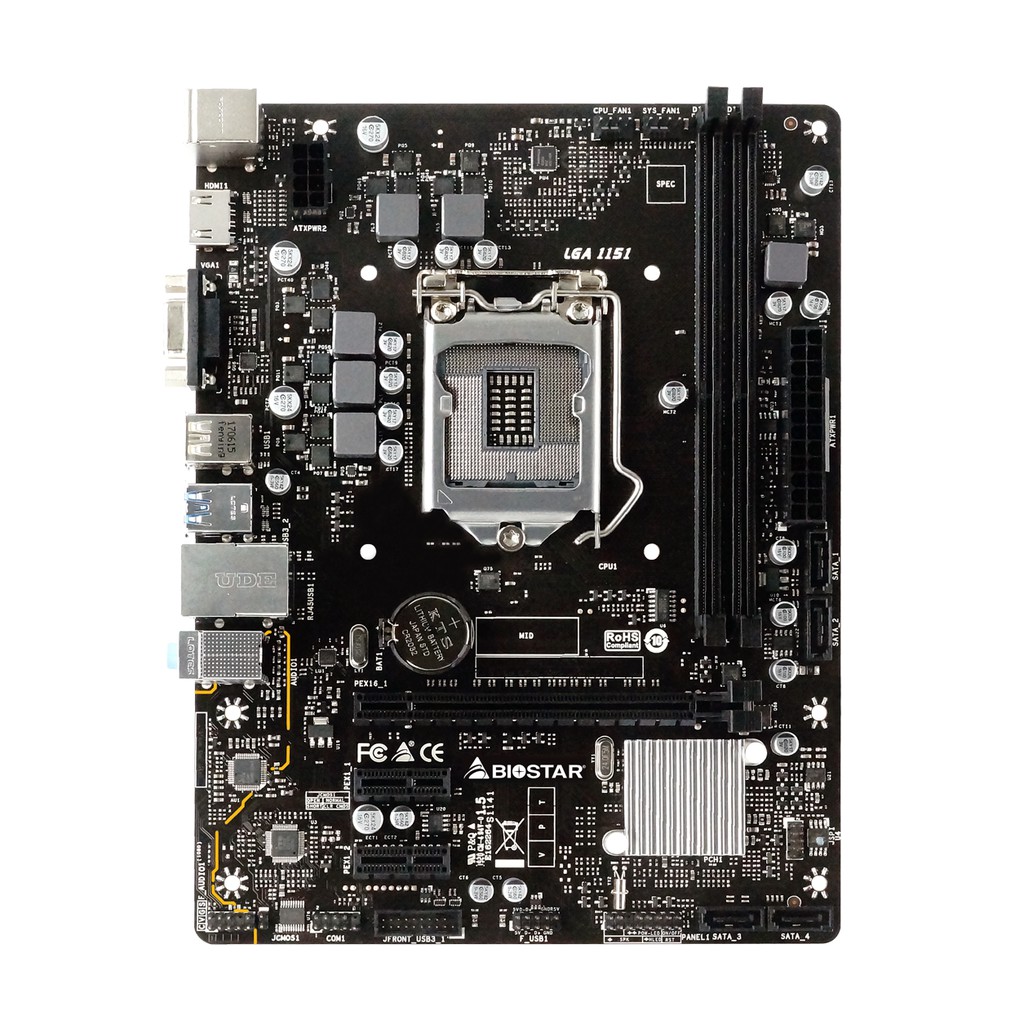

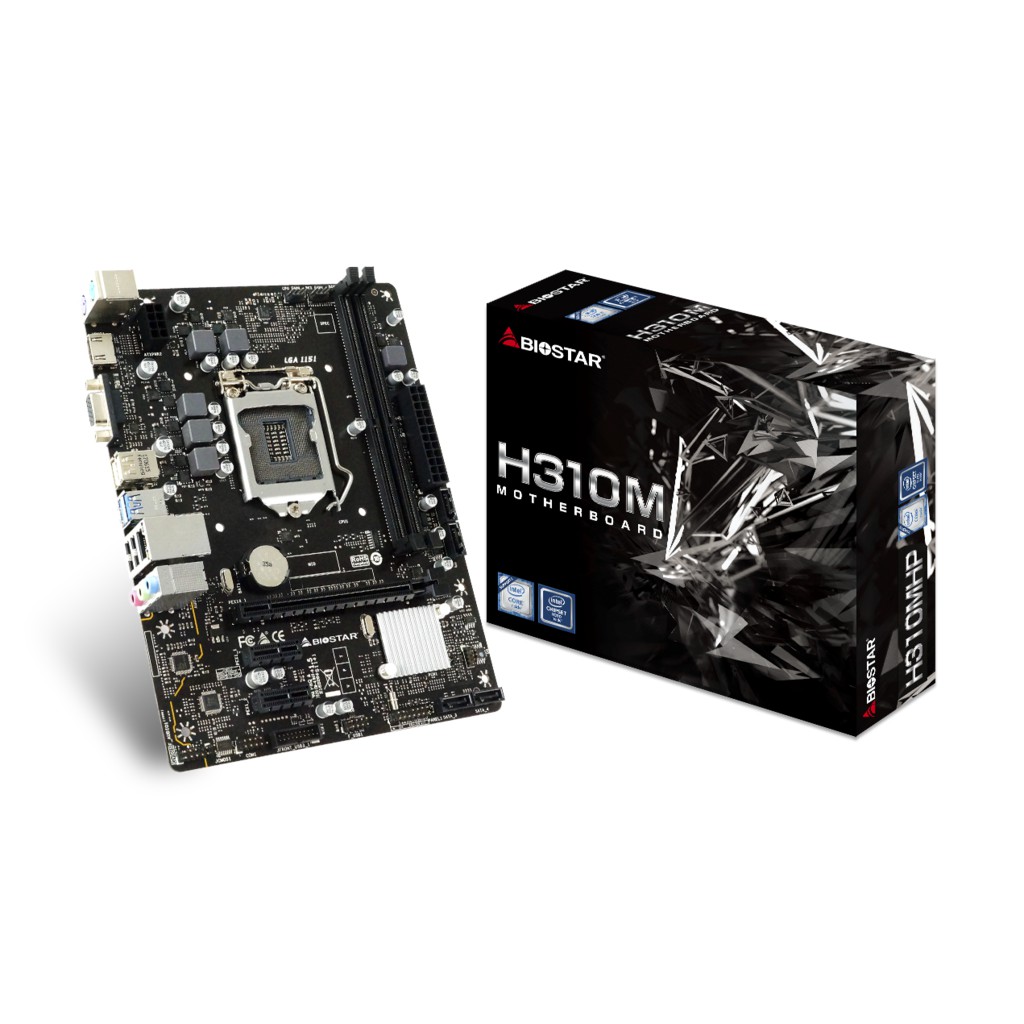

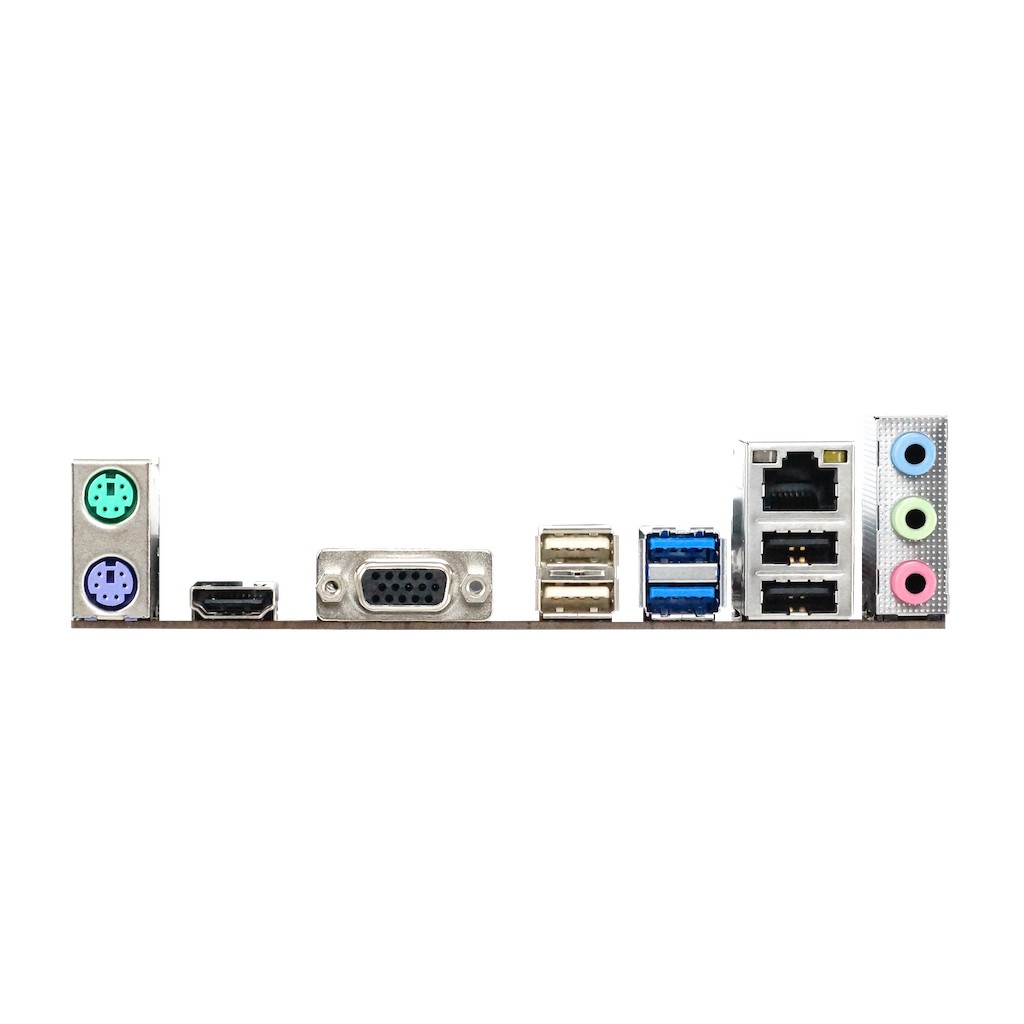

Gambar produk
