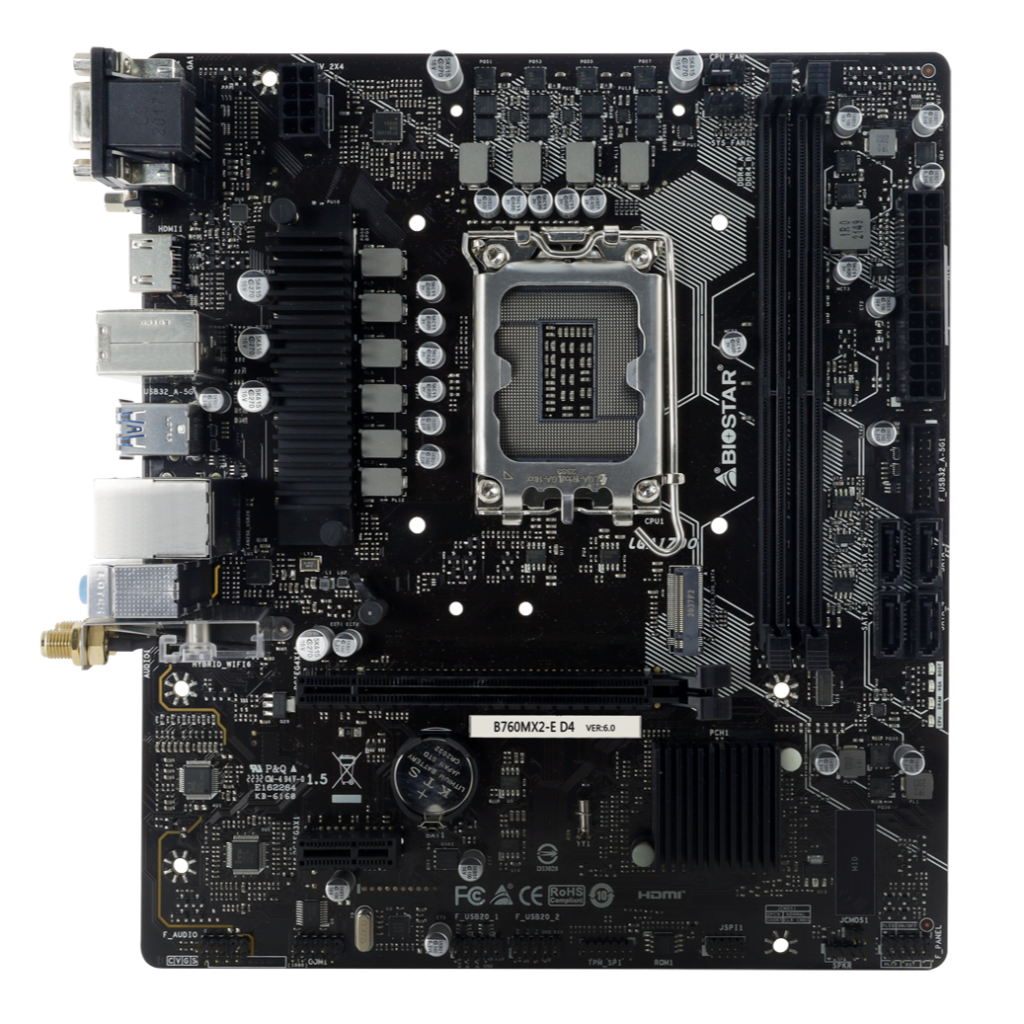

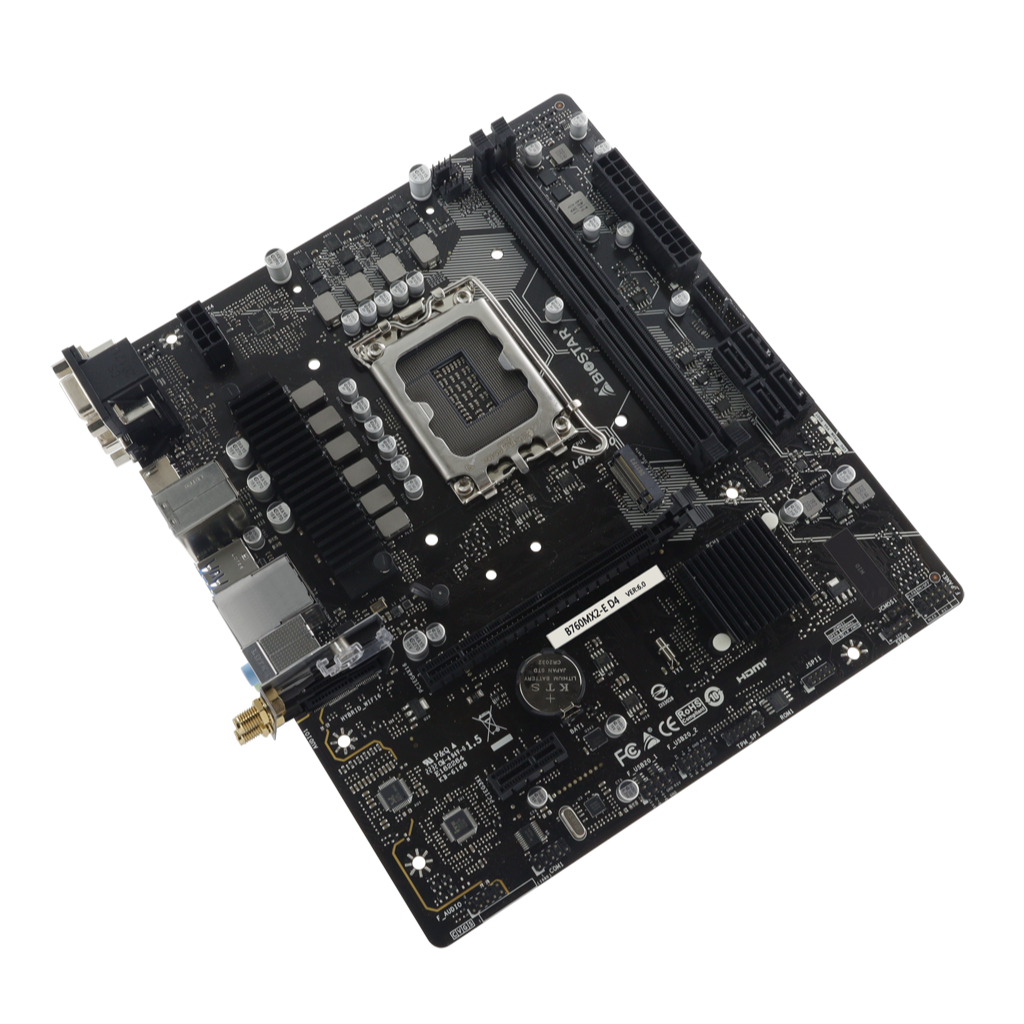

BIOSTAR Motherboard B760MX2-E D4 DDR4 LGA 1700

Detail BIOSTAR Motherboard B760MX2-E D4 DDR4 LGA 1700

kami menjual barang original bergaransi resmi
Harga dan stok bisa berubah setiap saat tanpa pemberitahuan sebelumnya
Silahkan chat dahulu untuk cek Stok Barang

klaim garansi juga bisa kita bantu

yang mau nambah bubble wrap silahkan klik link ini
https://shopee.co.id/bubble-wrap-i.225428636.5255998882?position=0

CPU SUPPORT Support for 12th/13th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200/ 3600(OC)/ 3800(OC)/ 4000(OC)/ 4400+(OC)
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
INTEGRATED VIDEO Supports DX12
Supports HDCP
STORAGE -- Total supports 1x M.2 socket and 4x SATA III (6Gb/s) ports
4 x SATA III Connector (6Gb/s) Support AHCI, RAID 0,1,5,10 & Intel Rapid Storage Technology
1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA):
Supports M.2 Type 2240 /2260 /2280 SSD module
Supports PCI-E 4.0 x4 (64Gb/s) / PCI-E 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD & SATA SSD
LAN RTL8125B
10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC897
7.1 Channels, High Definition Audio
USB 4 x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 port (4 on rear I/Os and 4 via internal headers)
EXPANSION SLOT 1 x PCIe 3.0 x1 Slot
1 x PCIe 4.0 x16 Slot

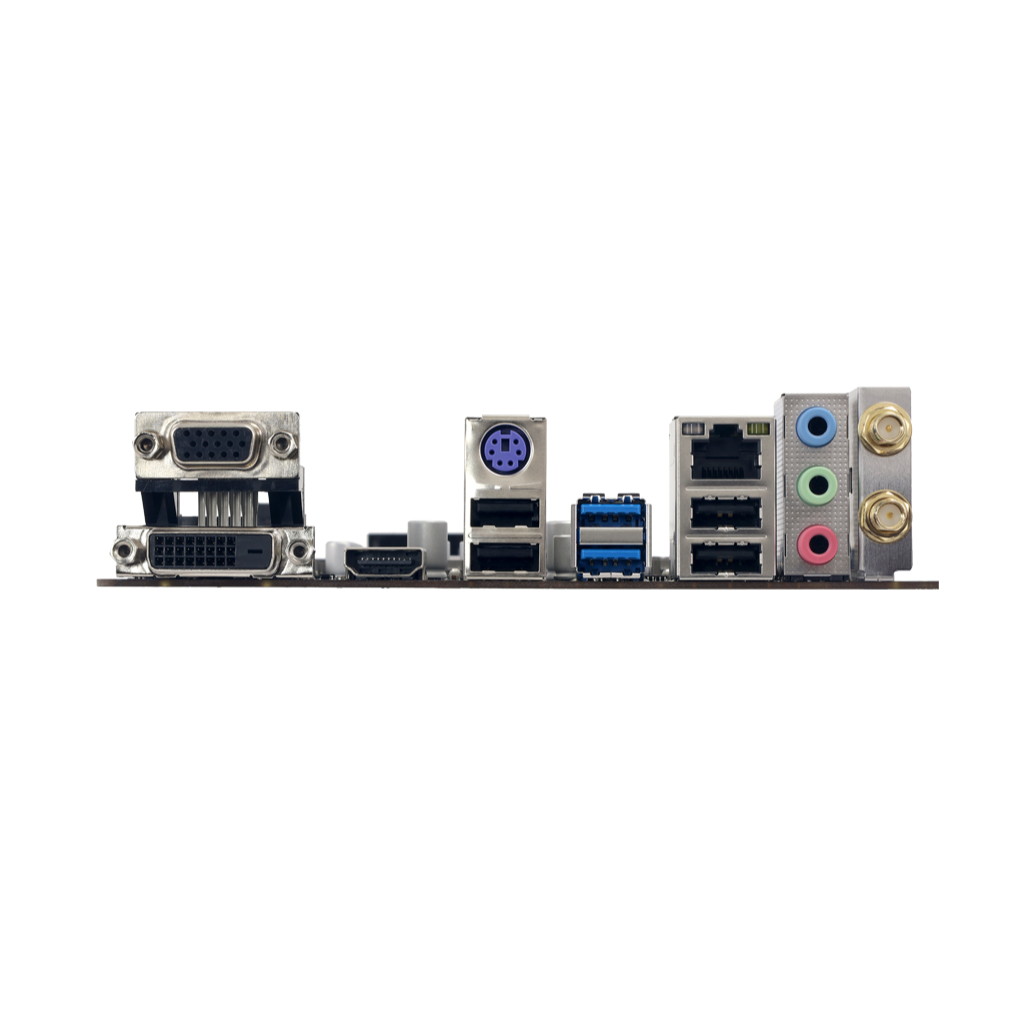

REAR I/O 1 x WIFI Antenna Port
1 x PS/2 Keyboard/ Mouse Port
1 x HDMI
1 x VGA+DVI Port
2 x USB 3.2 (Gen1) port
4 x USB 2.0 port
1 x LAN port
3 x Audio Jack
INTERNAL I/O 4 x SATA III Connector (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
* M.2 (E key) Wi-Fi card is not provided
