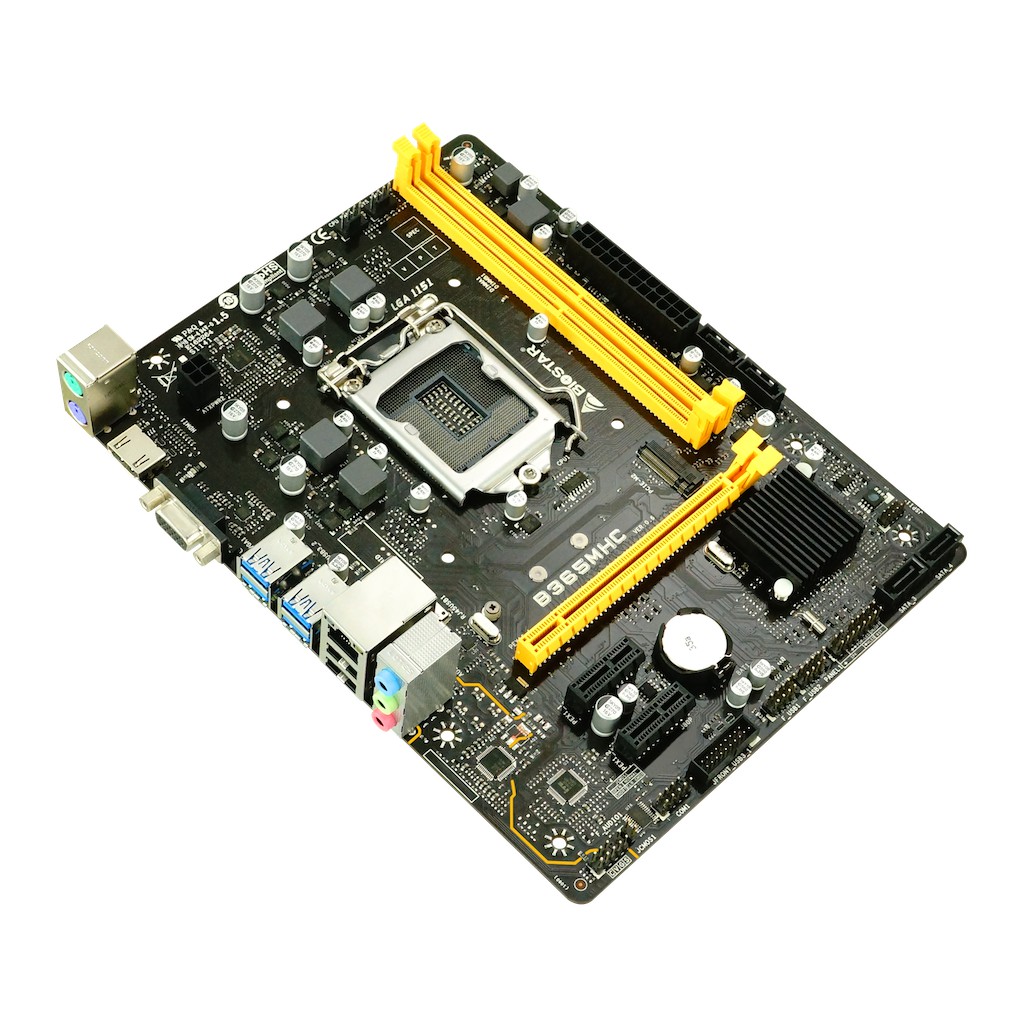

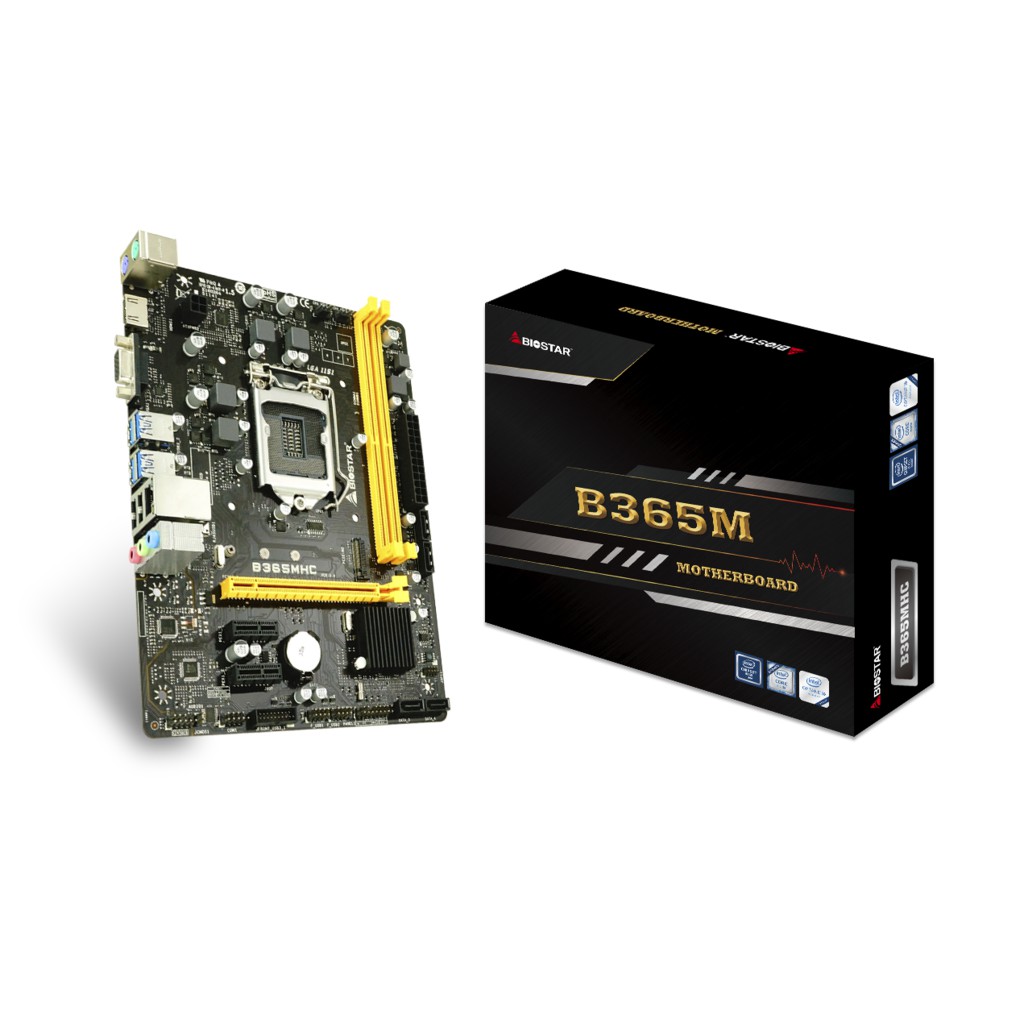

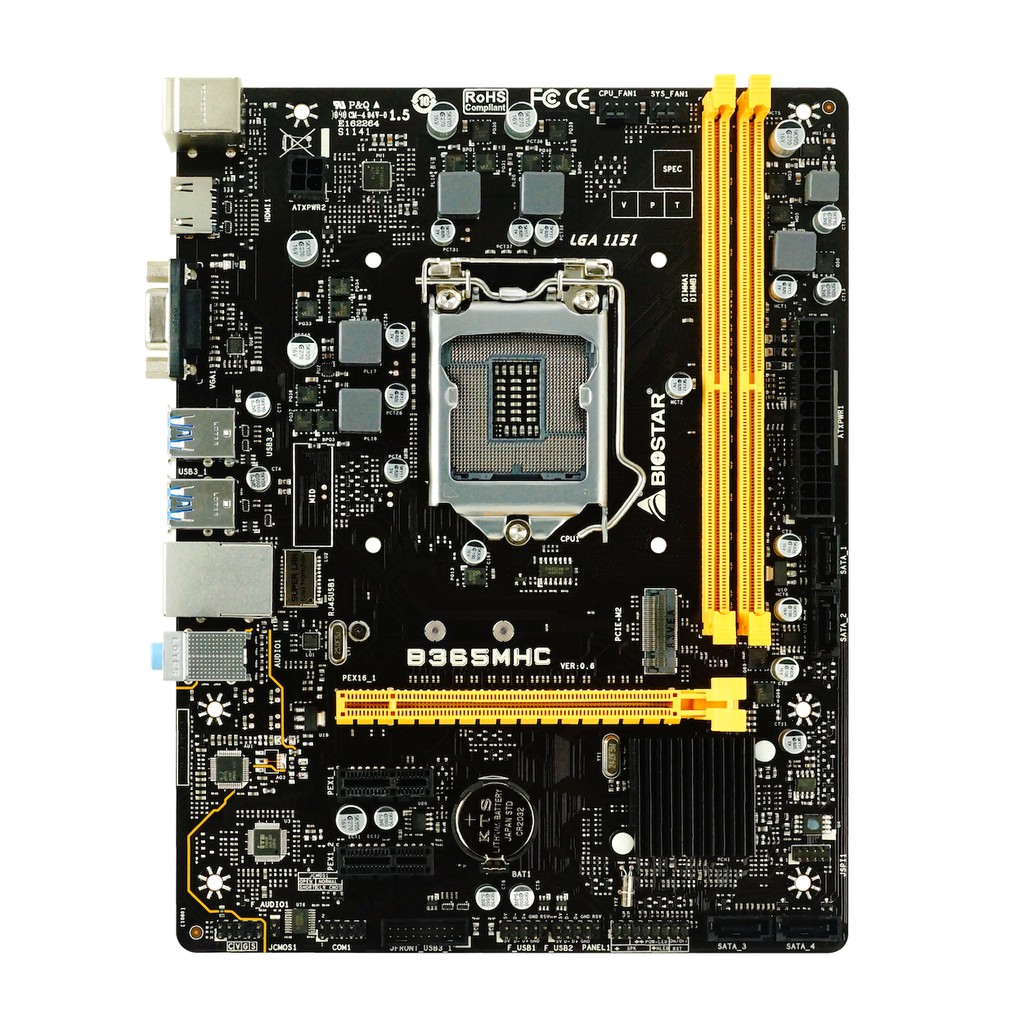

BIOSTAR Motherboard B365MHC Intel B365 LGA1151 DDR4 MICRO ATX

Detail BIOSTAR Motherboard B365MHC Intel B365 LGA1151 DDR4 MICRO ATX

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

B365MHC Ver. 6.x
Socket : 1151
Supports 9th & 8th Generation Intel® Core™ Processor
Intel B365 single chip architecture
Support 2-DIMM DDR4-1866/ 2133/ 2400/ 2666 up to 32GB maximum capacity
Support M.2(32Gb/s)
Support Intel® Optane Technology
Support USB 3.1 Gen1
Support HDMI display port
Support GbE LAN

Chipset
Intel B365

CPU SUPPORT
Socket 1151 for 9th / 8th Gen Intel® Core, Pentium and Celeron processors
Maximum CPU TDP (Thermal Design Power): 95Watt

MEMORY
Support Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 module

STORAGE
4 x SATA III Connectors (6Gb/s)
1 x M.2 (M Key) 32Gb/s Connector: Supports PCI-E (32Gb/s) & SATA III (6Gb/s) SSD, Intel® Optane Technology

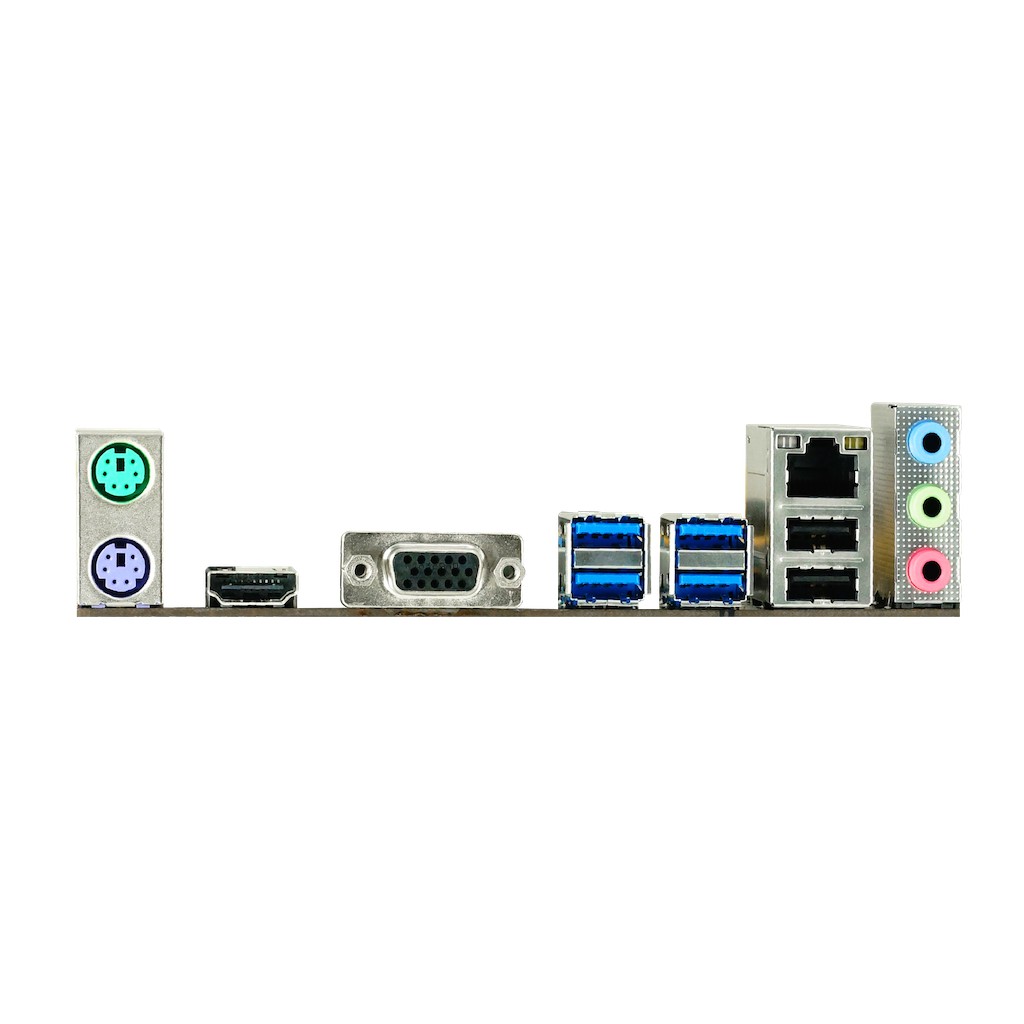

USB
6 x USB 3.1 Gen1 Port (4 on rear I/Os and 2 via internal header)
6 x USB 2.0 Port (2 on rear I/Os and 4 via internal header)

EXPANSION SLOT
1 x PCI-E 3.0 x16 Slot
2 x PCI-E 3.0 x1 Slot

INTERNAL I/O
1 x USB 3.1 Gen1 Header (each header supports 2 USB 3.1 Gen1 ports)
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
4 x SATA III Connector (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header

H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring

DIMENSION
Micro ATX Form Factor Dimension: 22.8cm x 17.7 cm ( W x L )

ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide

Gambar produk
