BIOSTAR Motherboard B360M D2V Intel B360 LGA1151 DDR4 MICRO ATX
Merek: Biostar | Lihat selengkapnya produk Komputer & Aksesoris dari BiostarDeskripsi singkat
Komputer & Aksesoris > Komponen Desktop & Laptop > Motherboard > BIOSTAR Motherboard B360M D2V Intel B360 LGA1151 DDR4 MICRO ATX
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail BIOSTAR Motherboard B360M D2V Intel B360 LGA1151 DDR4 MICRO ATX
Terima kasih Sudah berkunjung di ma-mai.Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih
B360M D2V Ver. 6.x
Socket : 1151
Supports 9th & 8th Generation Intel® Core™ Processor
Intel B360 single chip architecture
Support 2-DIMM DDR4-1866/ 2133/ 2400/ 2666 up to 32G maximum capacity
Support USB 3.1 Gen1
Support HDMI 4K resolution
Support GbE LAN
Chipset
Intel B360
CPU SUPPORT
9th Gen Intel® Core™ i9 LGA 1151 Processor
9th Gen Intel® Core™ i7 LGA 1151 Processor
9th Gen Intel® Core™ i5 LGA 1151 Processor
9th Gen Intel® Core™ i3 LGA 1151 Processor
8th Gen Intel® Core™ i7 LGA 1151 Processor
8th Gen Intel® Core™ i5 LGA 1151 Processor
8th Gen Intel® Core™ i3 LGA 1151 Processor
8th Gen Intel® Pentium® LGA 1151 Processor
8th Gen Intel® Celeron® LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY
Support Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
STORAGE
6 x SATA III Connectors (6Gb/s)
1 x M.2 (M Key) 32Gb/s Connector: Supports PCI-E (32Gb/s), SATA III (6Gb/s) SSD & Intel® Optane Technology
LAN
Realtek RTL8118H-10/100/1000 Mb/s GbE LAN
USB
6 x USB 3.1 Gen1 Ports (4 on rear I/Os and 2 via internal header)
6 x USB 2.0 Ports (2 on rear I/Os and 4 via internal header)
EXPANSION SLOT
1 x PCI-E 3.0 x16 Slot
2 x PCI-E 3.0 x1 Slots
INTERNAL I/O
1 x USB 3.1 Gen1 Header(each header supports 2 USB 3.1(Gen1) ports)
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
6 x SATA III Connectors (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x TPM Header
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header
DIMENSION
Micro ATX Form Factor Dimension: 22.6cm x 18.5cm ( W x L )
ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide

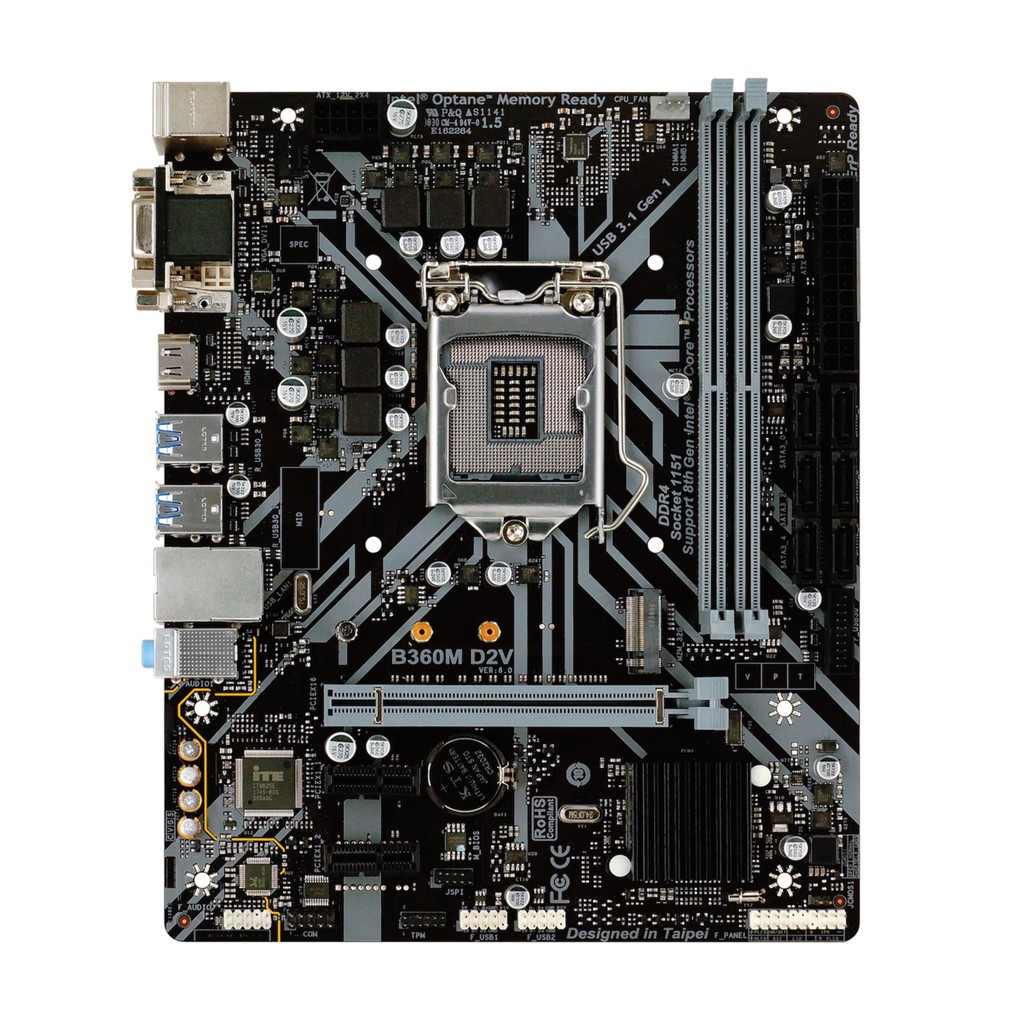

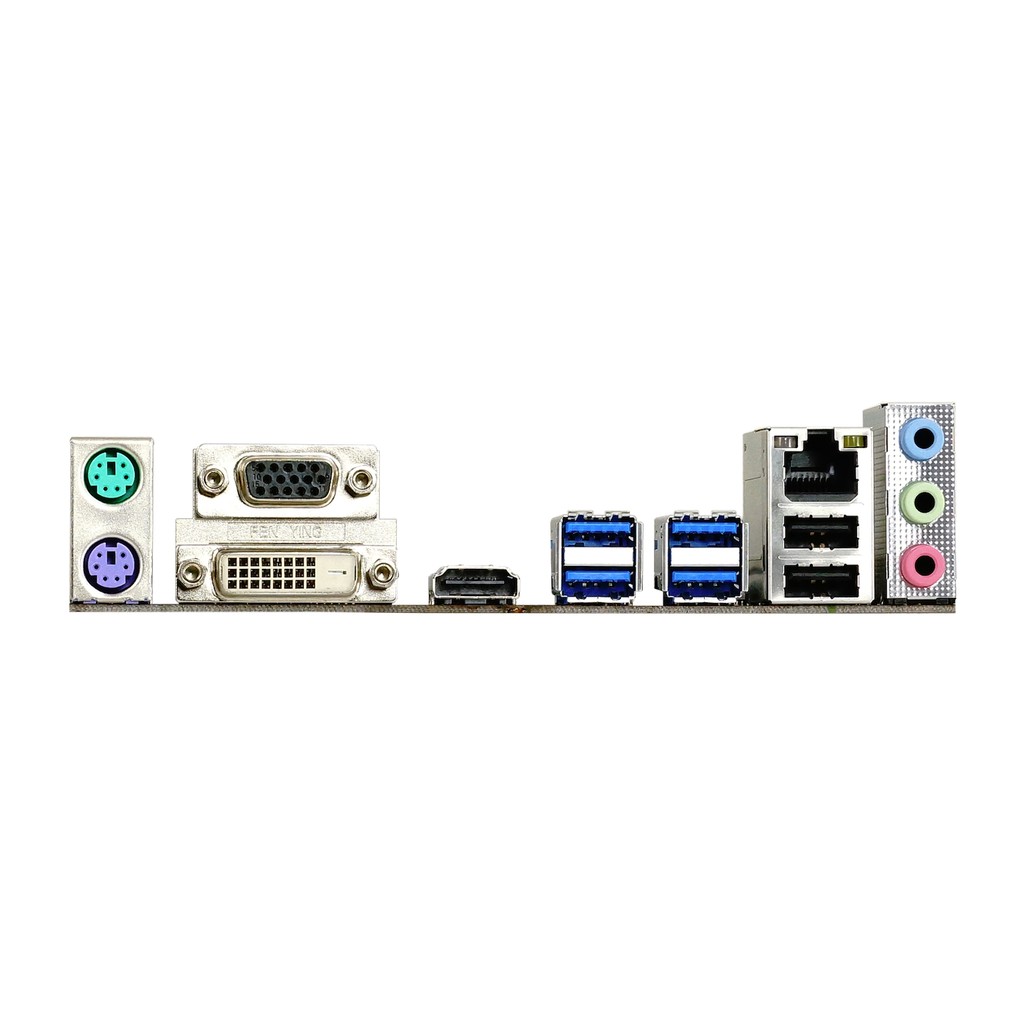

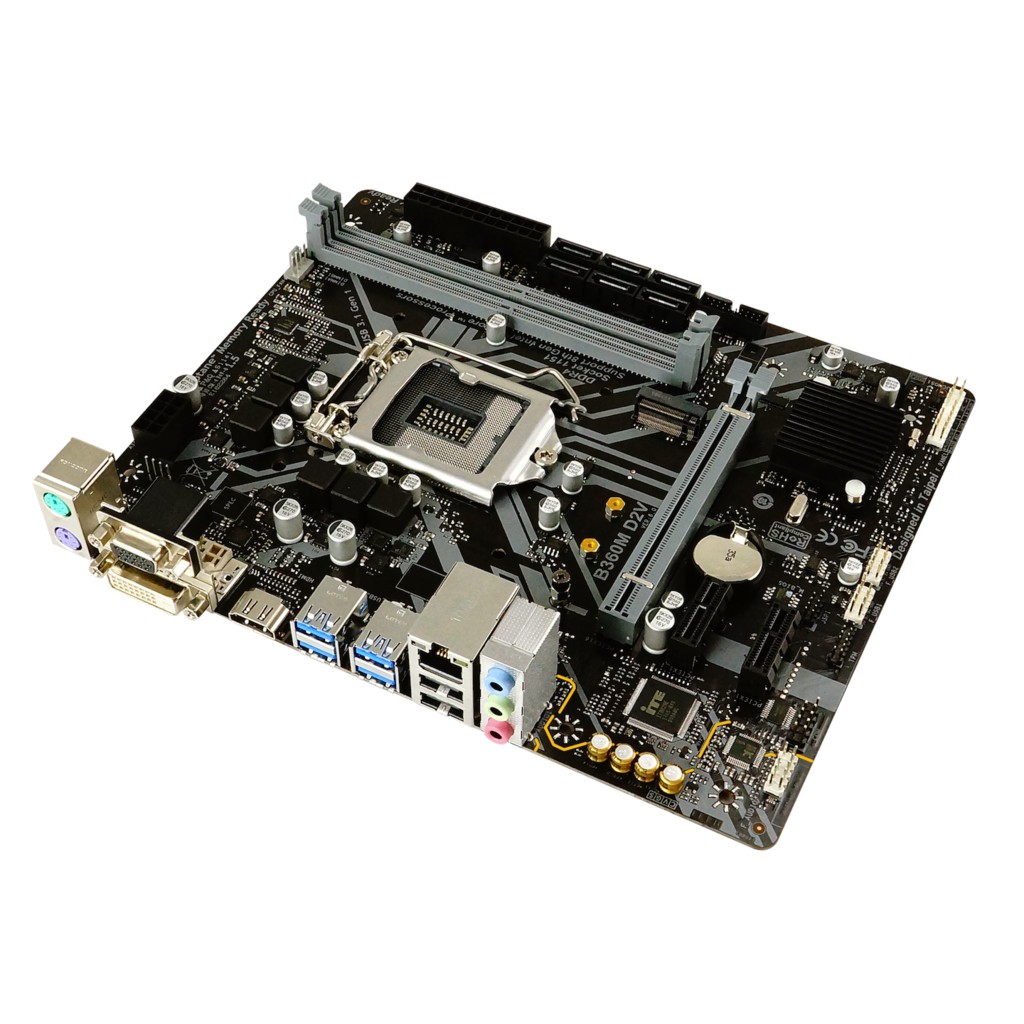

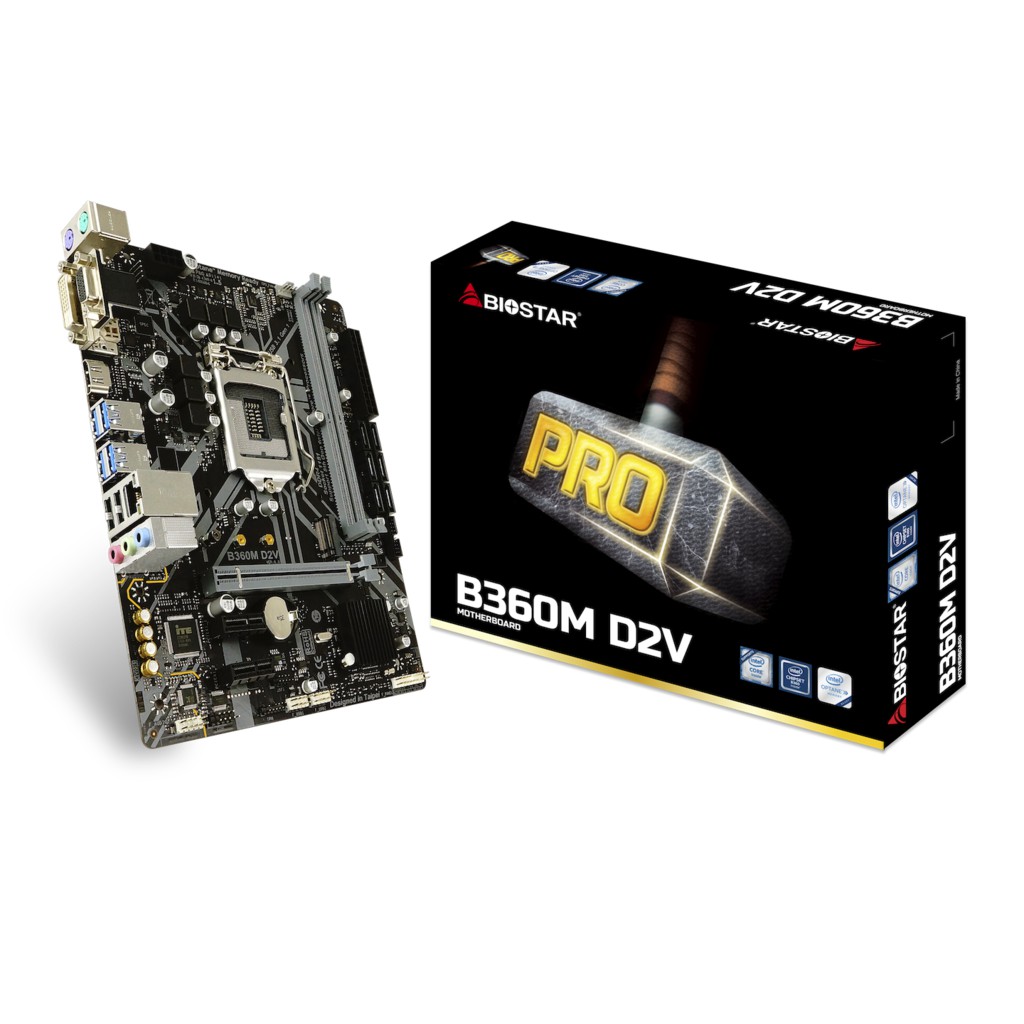

Gambar produk
