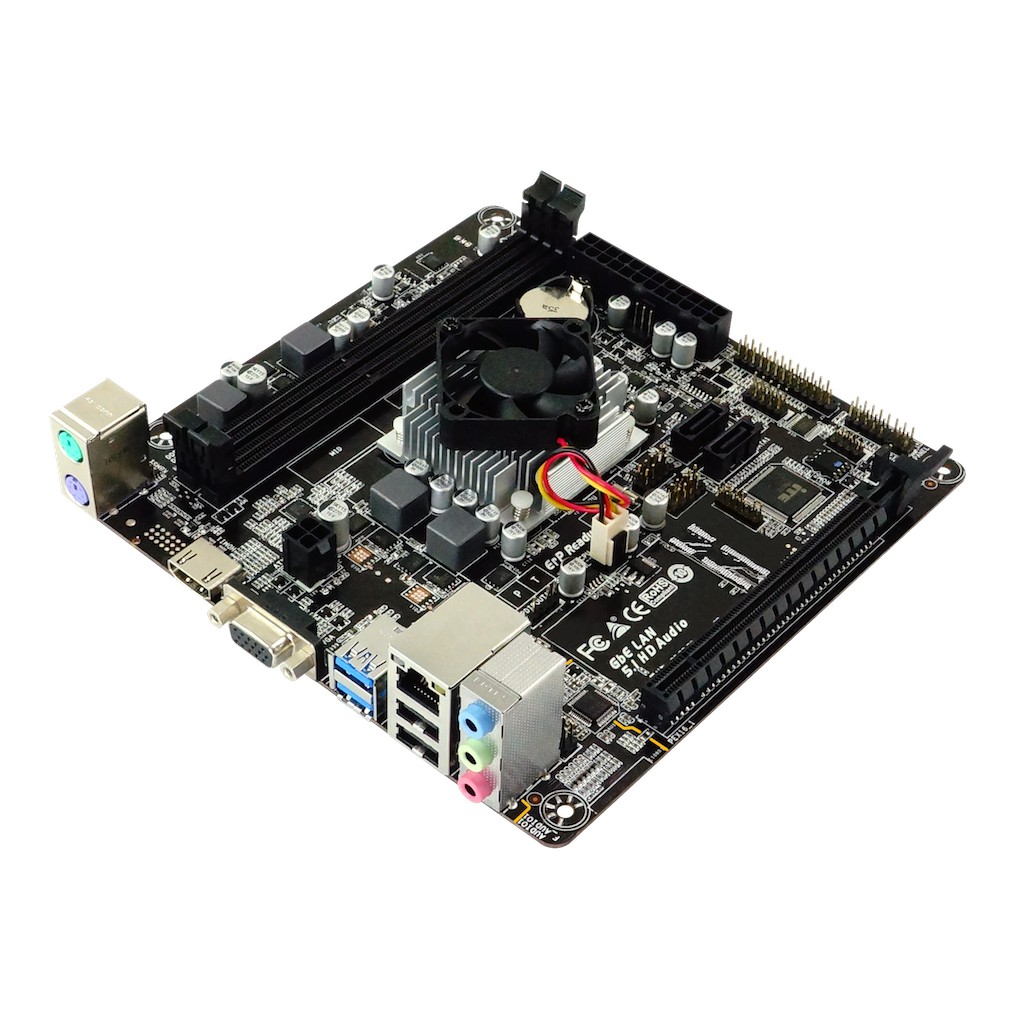

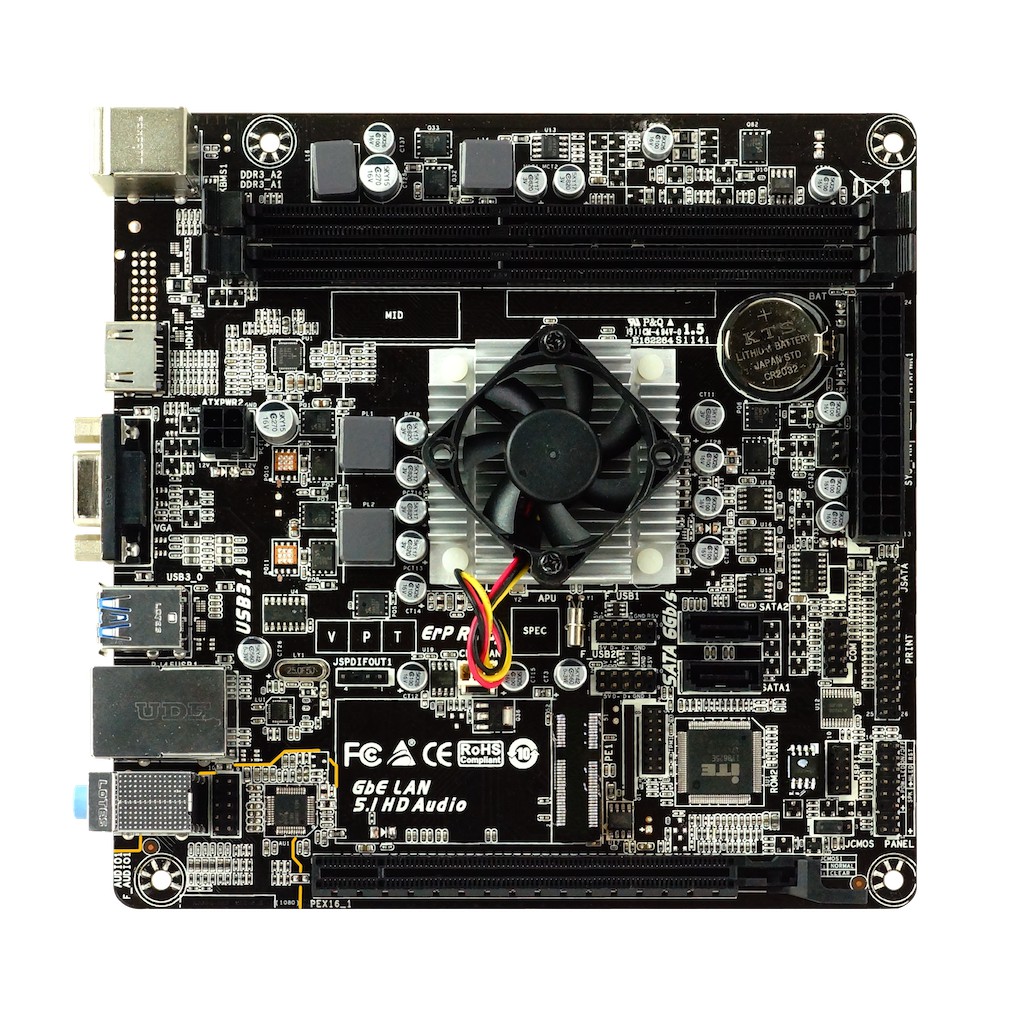

BIOSTAR Motherboard A68N-5600E AMD CPU onboard A4-3350B DDR3 Mini-ITX

Detail BIOSTAR Motherboard A68N-5600E AMD CPU onboard A4-3350B DDR3 Mini-ITX

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

A68N-5600E Ver. 6.X
CPU onboard
AMD PRO A4-3350B Processor
Supports 2 DIMM of DDR3 1600 & DDR3L 1333
Supports AMD Radeon™ R4 Graphics
Support HDMI display port
Supports USB 3.1 Gen1 Port
Supports TPM Header
Chipset
Carrizo-L

CPU
AMD PRO A4-3350B Processor
(Quad Core 2.0GHz up to 2.4GHz, 15W)

MEMORY
Max. Supports up to 16GB Memory
Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 & DDR3L module

INTEGRATED VIDEO
AMD Radeon™ R4 Graphics
Supports HDCP

STORAGE
2 x SATA III Connectors (6Gb/s) : Supports AHCI

LAN
Realtek RTL8111H - 10/100/1000Mb/s Controller

AUDIO CODEC
Realtek ALC887 5.1-Channel Audio
Support HD Audio
Support SPDIF_out

USB
2 x USB 3.1 Gen1 Port (2 on rear I/Os)
6 x USB 2.0 Port (2 on rear I/Os and 4 via internal header)

EXPANSION SLOT
1 x PCI-E 2.0 x16 Slot (x4)

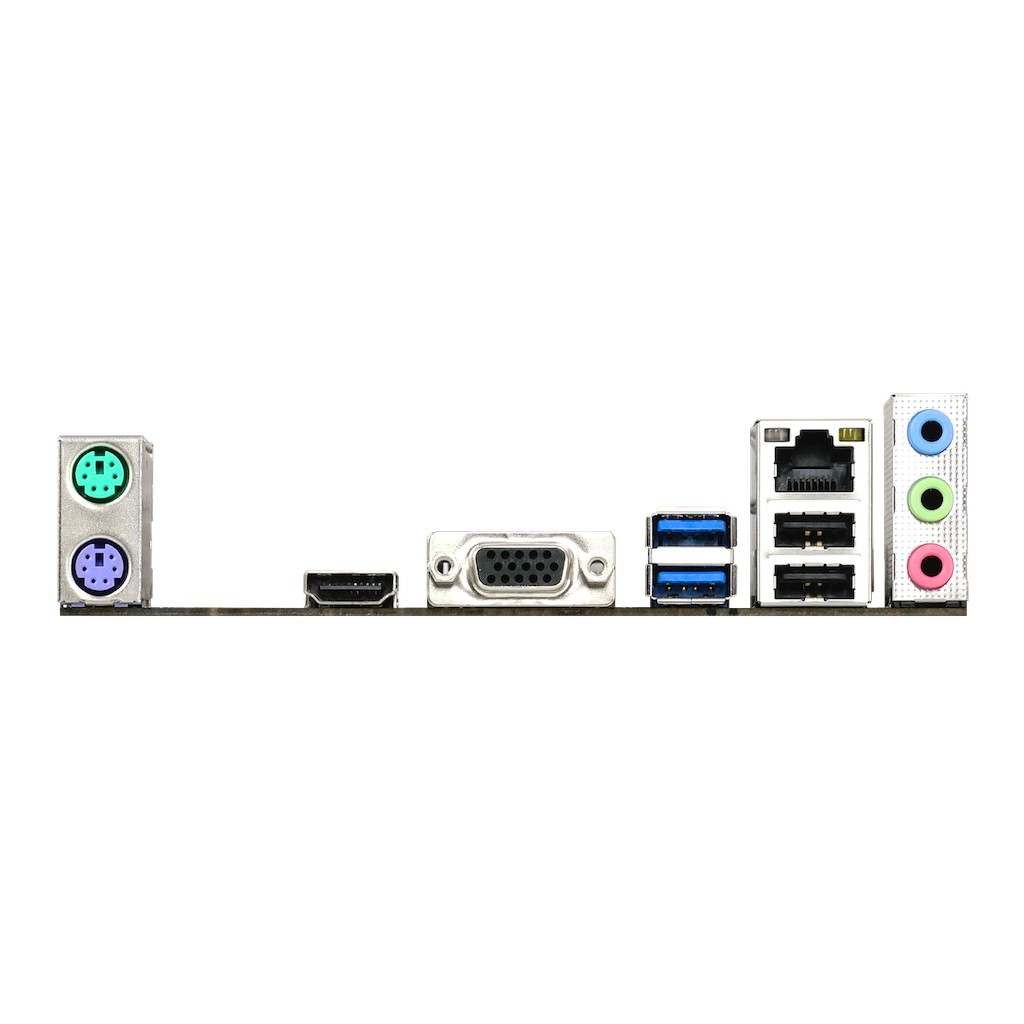

REAR I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.1 Gen1 Ports
2 x USB 2.0 Port
1 x HDMI Connector
1 x VGA Port
1 x LAN Port
3 x Audio Jacks

INTERNAL I/O
Supports Single Channel DDR3
2 x USB 2.0 Header (each header support 2 USB 2.0 ports)
2 x SATA III Connector (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x TPM Header
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header

DIMENSION
Mini ITX Form Factor Dimension: 17 cm x 17 cm ( W x L )

OS SUPPORT
Supports Windows 7 / 10

ACCESSORIES
DDR3 & DDR3L DIMM Memory Slot
2 x SATA Cable
1 x I/O Shield
1 x Fully Setup Driver CD
1 x Quick Guide
1 x Printer Port Header

Gambar produk
