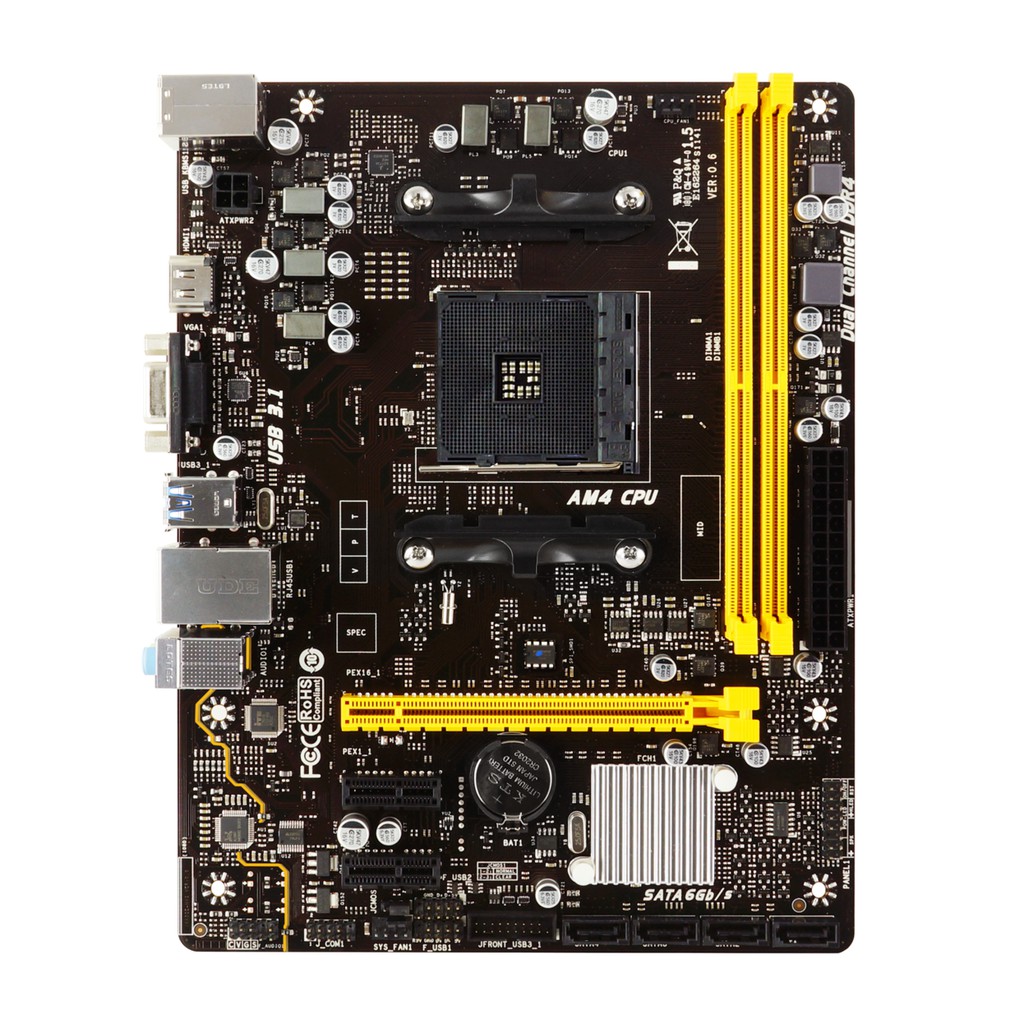

BIOSTAR Motherboard A320MH AMD A320 AM4 DDR4 ATX Motherboard

Detail BIOSTAR Motherboard A320MH AMD A320 AM4 DDR4 ATX Motherboard

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

A320MH Ver. 6.x
Socket : AM4
Support AMD Ryzen CPU / APU
AMD A320 single chip architecture
Support 2-DIMM DDR4-2933/2667/2400/2133/1866 up to 32G maximum capacity
Support HDMI
Support USB 3.2 Gen1
Chipset
AMD A320

CPU SUPPORT
Supports AMD AM4 Socket for 3rd, 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega
Graphics/Athlon with Radeon Vega Graphics/7th Gen A-Series/Athlon X4 Processors

MEMORY
Support Dual Channel DDR4 2933/2667/2400/2133/1866 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
Each DIMM supports non-ECC 8/16 GB DDR4 module

STORAGE
4 x SATA III Connectors (6Gb/s)
Support SATA RAID: 0,1,10

USB
4 x USB 3.2 Gen1 ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)

EXPANSION SLOT
2 x PCIe 2.0 x1 Slots
1 x PCIe 3.0 x16 Slot (When using APU, the bandwidth is x8 speed)

INTERNAL I/O
4 x SATA III 6Gb/s Connectors
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 (5Gb/s) Header (each header supports 2 USB 3.2 Gen1 ports)
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x COM Serial Header
1 x Clear CMOS Header

H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

DIMENSION
Micro ATX Form Factor Dimension: 22.6cm x 17.4cm ( W x L )
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide

Gambar produk
