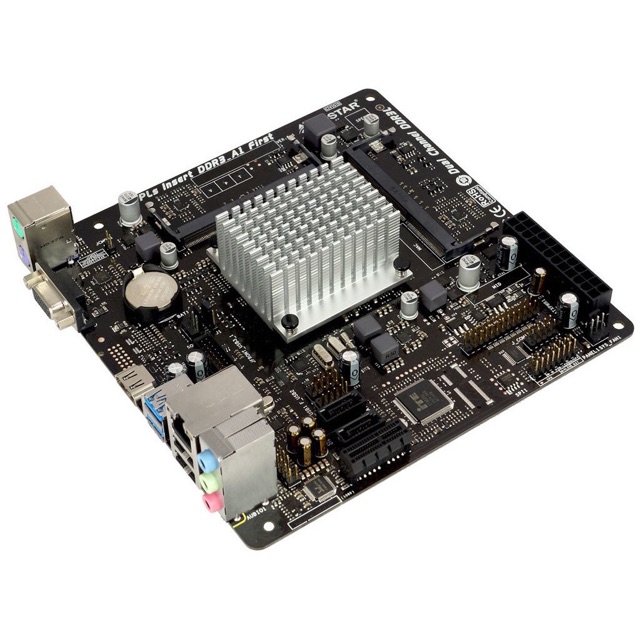

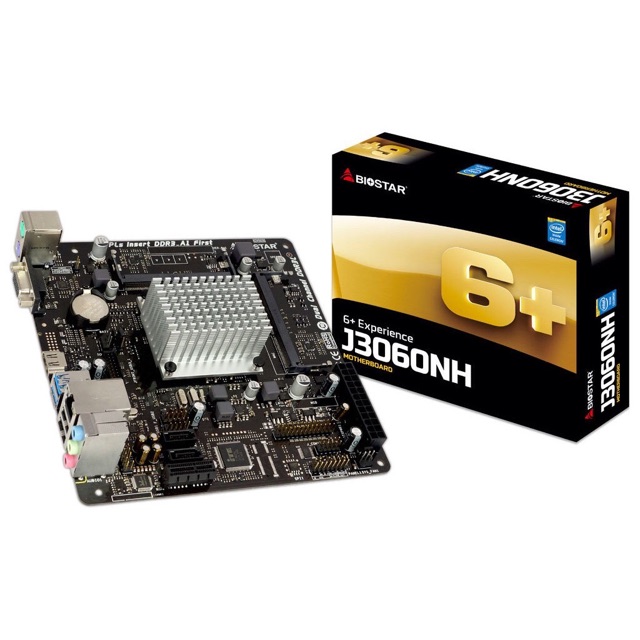

BIOSTAR J3060NH Intel On Board J3060 DDR3 Mini-ITX Motherboard

Detail BIOSTAR J3060NH Intel On Board J3060 DDR3 Mini-ITX Motherboard

BIOSTAR J3060NH Intel On Board J3060 DDR3 Mini-ITX Motherboard


FEATURES
Supports Solid capacitor
Supports BIOS-Flasher
Supports Charger Booster
Supports BIOS Online Update

TECH SPECS
CPU: Intel® Celeron J3060 Dual-core 2.48G
MEMORY: Support Dual Channel DDR3L 1600/1066 MHz; 2 x DDR3 SO-DIMM Memory Slot; Max. Supports up to 8GB Memory for DDR3L-1600 OR 16GB Memory for DDR3L-1066
EXPANSION SLOT: 1 x PCI-E 2.0 x1 Slot
STORAGE: 2 x SATA3 Connector
USB: 2 x USB 3.0 Port, 1 x USB 3.0 Header, 2 x USB 2.0 Port, 2 x USB 2.0 Header
LAN: Realtek RTL8111H - 10/100/1000 Controller
INTEGRATED VIDEO: Intel HD Graphics, Supports DX11.1, Supports HDCP
CODEC: Realtek ALC662 6-Channel HD Audio

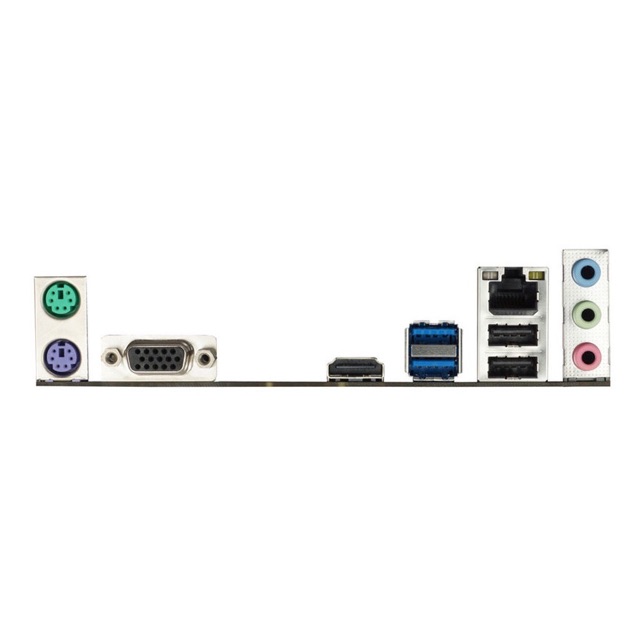

REAR I/O: 1 x PS/2 Mouse, 1 x PS/2 Keyboard, 2 x USB 3.0 Port, 2 x USB 2.0 Port, 1 x HDMI Connector, 1 x VGA Port, 1 x RJ-45 Port, 3 x Audio Connector
INTERNAL I/O: 1 x Printer Header, 1 x USB 3.0 Header, 2 x USB 2.0 Header, 2 x SATA3 6Gb/s Connector, 1 x Front Audio Header, 1 x Front Panel Header, 2 x System Fan Header, 1 x Serial Header
DIMENSION: Mini ITX Form Factor Dimension: 17cm x 17cm ( W x L )
BUNDLE SOFTWARE: BullGuard, BIO-Remote2, Smart Speed LAN

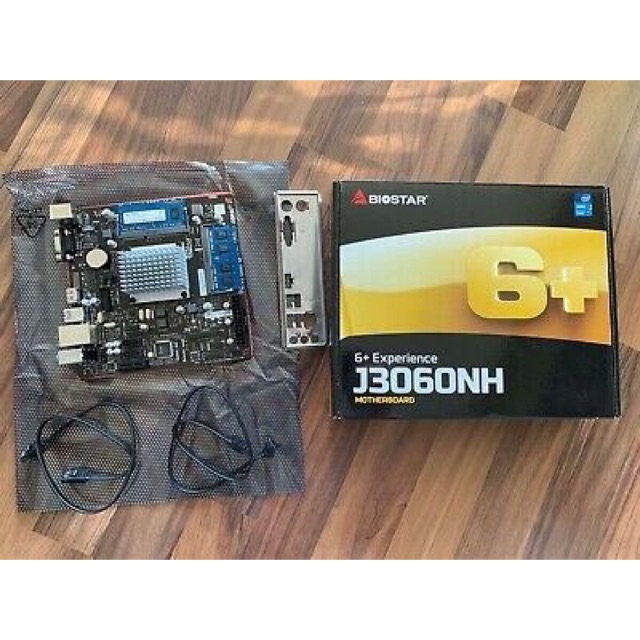

ACCESSORIES: 2 x SATA Cable, 1 x I/O Shield, 1 x DVD Driver, 1 x Quick Guide

Gambar produk
