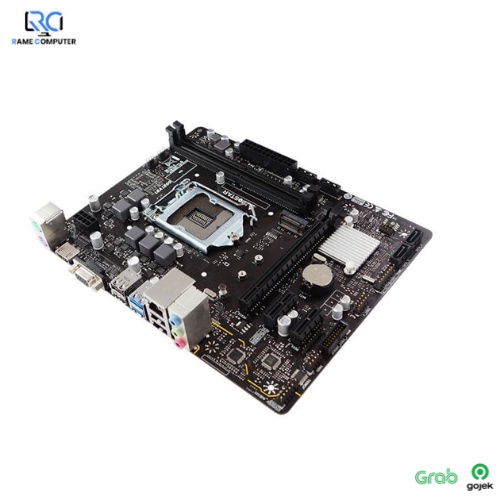

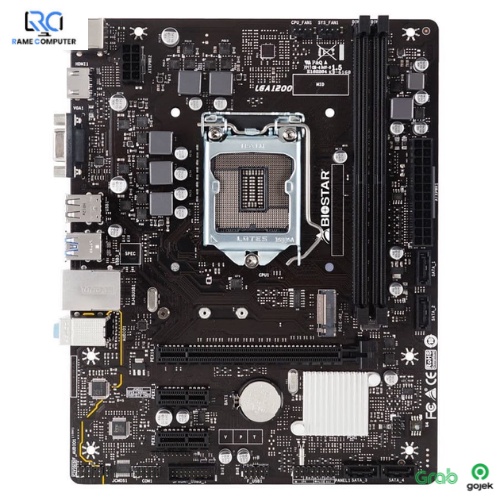

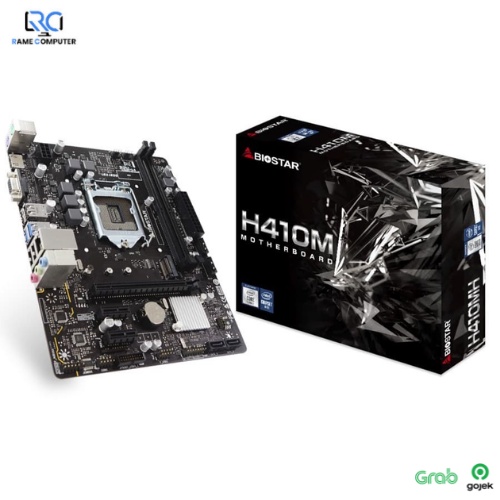

BIOSTAR H410MH Intel H410 LGA1200 DDR4 Micro ATX Motherboard

Detail BIOSTAR H410MH Intel H410 LGA1200 DDR4 Micro ATX Motherboard

FEATURES
Supports 10th Generation Intel Core™ Processor
Intel H410 single chip architecture
Supports 2-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2800/ 2933 up to 64 GB Memory max capacity
Supports PCIe M.2 (10Gb/s)
Supports HDMI 4K resolution
Supports GbE LAN

TECH SPECS
Chipset: Intel H410
CPU SUPPORT: 10th Generation Intel Core™ Processor Family only support 400-Series
MEMORY: Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2800/ 2933; 2 x DDR4 DIMM Memory Slot; Max. Supports up to 64GB Memory
INTEGRATED VIDEO: By CPU model
STORAGE: 4 x SATA3 Connector; 1 x M.2 (M Key) Socket
LAN: RTL8111H - 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC: ALC887 7.1 Channels, High Definition Audio
USB: 4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers); 6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers)
EXPANSION SLOT: 1 x PCI-E 3.0 x16 Slot, 2 x PCI-E 2.0 x1 Slot

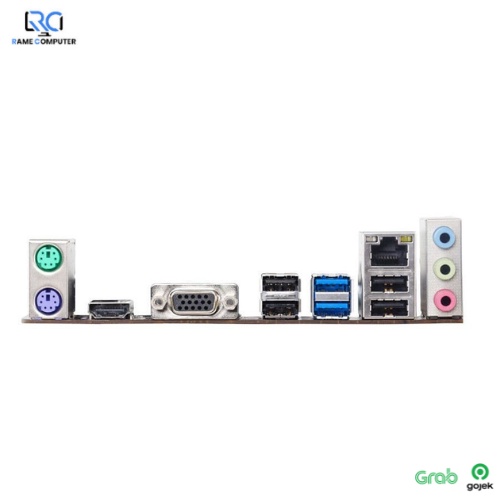

REAR I/O: 1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x HDMI Port, 1 x VGA Port, 2 x USB 3.2 (Gen1) Ports, 4 x USB 2.0 Ports, 1 x LAN port, 3 x Audio Jackresolution up to 1920 x 1200 @60Hz, 1 x RJ-45 Port, 3 x Audio Connector
INTERNAL I/O: 4 x SATA III Connectors (6Gb/s), 1 x USB 2.0 Header (each header supports 2 USB 2.0 ports), 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports), 1 x 8-Pin Power Connector, 1 x 24-Pin Power Connector, 1 x CPU Fan Connector, 1 x System Fan Connector, 1 x Front Panel Header, 1 x Front Audio Header, 1 x Clear CMOS Header, 1 x COM Port Header
DIMENSION: Micro ATX Form Factor Dimension: 17.9cm x 22.6cm ( W x L )
ACCESSORIES: 2 x SATA Cable, 1 x I/O Shield, 1 x DVD Driver, 1 x Quick Guide

Gambar produk
