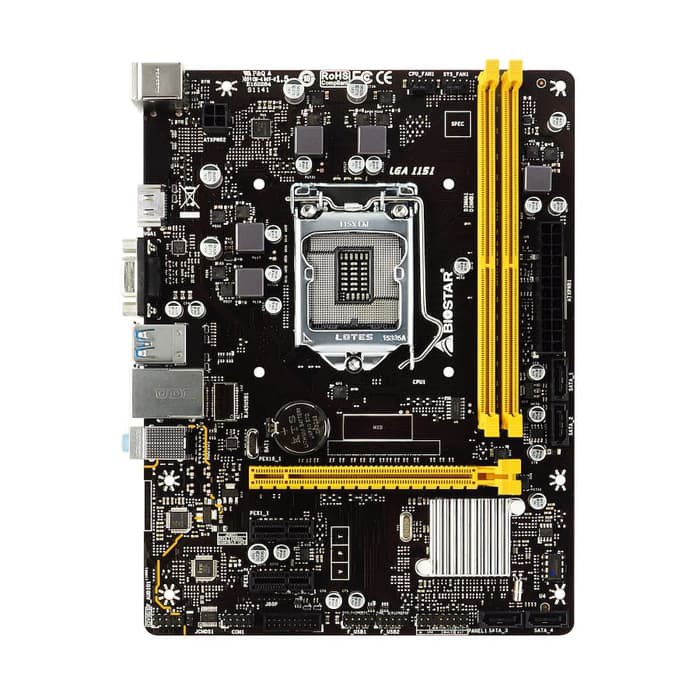

BIOSTAR H310MHC2 Intel H310 LGA1151 DDR4 Micro ATX Motherboard

Detail BIOSTAR H310MHC2 Intel H310 LGA1151 DDR4 Micro ATX Motherboard

FEATURES
Supports 8th Generation Intel® Core™ Processor
Intel H310 single chip architecture
Support 2-DIMM DDR4-1866/ 2133/ 2400/ 2666 up to 32G maximum capacity
Support USB 3.1 Gen1
Support HDMI display port
Support GbE LAN

TECH SPECS
Chipset: Intel H310
CPU SUPPORT: 8th Gen Intel® LGA 1151 Processor; Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY: 2 x DDR4 DIMM Memory Slot; Max. Supports up to 32GB Memory
EXPANSION SLOT: 1 x PCI-E 3.0 x16 Slot, 2 x PCI-E 2.0 x1 Slot
STORAGE: 4 x SATA3 Connector
USB: 4 x USB 3.1 Gen1 Port (2 on rear I/Os and 2 via internal header), 6 x USB 2.0 Port (2 on rear I/Os and 4 via internal header)
LAN: Realtek RTL8111H - 10/100/1000 Controller
INTEGRATED VIDEO: By CPU model
CODEC: Realtek ALC887 8-Channel HD Audio
REAR I/O: 1 x PS/2 Mouse, 1 x PS/2 Keyboard, 2 x USB 3.1 Gen1 Ports, 2 x USB 2.0 Port, 1 x HDMI Connector, resolution up to 4096 x 2160 @24Hz, 1 x VGA Port ,resolution up to 1920 x 1200 @60Hz, 1 x LAN port, 3 x Audio Jacks
INTERNAL I/O: 1 x USB 3.1 Gen1 Header (each header support 2 USB 3.1 Gen1 ports), 2 x USB 2.0 Headers (each header support 2 USB 2.0 ports), 4 x SATA3 6Gb/s Connectors, 1 x Front Audio Header, 1 x Front Panel Header, 1 x CPU Fan Connector, 1 x System Fan Connector, 1 x 4-Pin Power Connector, 1 x 24-Pin Power Connector, 1 x Clear CMOS Header, 1 x COM Port Header
DIMENSION: Micro ATX Form Factor Dimension: 22.6 cm x 17.1 cm ( W x L )
ACCESSORIES: 2 x SATA Cable, 1 x I/O Shield, 1 x DVD Driver, 1 x Quick Guide
