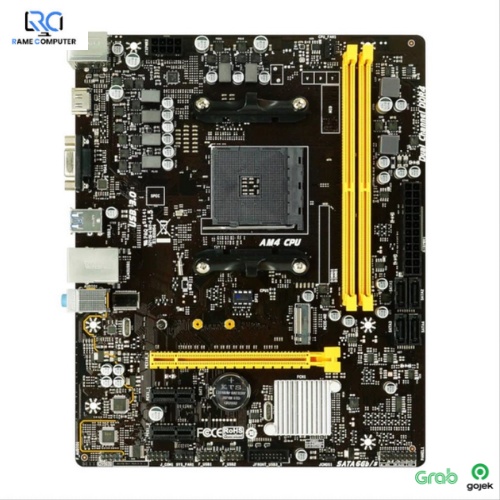

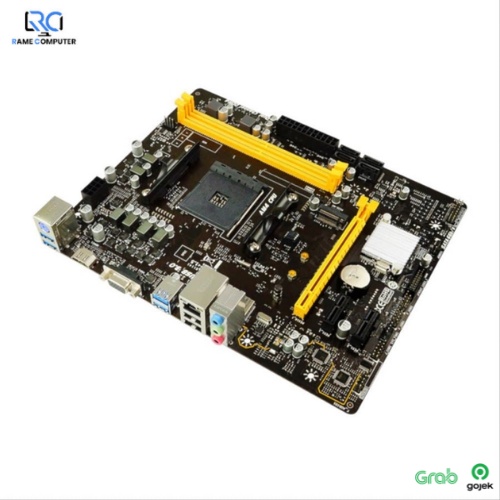

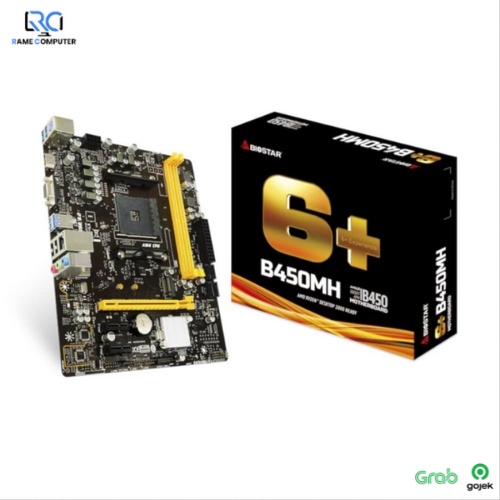

BIOSTAR B450MH AMD B450 AM4 DDR4 Micro ATX Motherboard

Detail BIOSTAR B450MH AMD B450 AM4 DDR4 Micro ATX Motherboard

FEATURES
Support AMD Ryzen CPU / APU
AMD B450 single chip architecture
Support 2-DIMM DDR4-1866/ 2133/ 2400/ 2667/ 2933/ 3200(OC)
Support Realtek Gigabit LAN
Support USB 3.1 Gen1
Support M.2(32Gb/s)
Support HDMI, VGA Ports

TECH SPECS
Chipset: AMD B450
CPU SUPPORT: AMD A-series APU / Ryzen CPU / NPU for Socket AM4; Maximum CPU TDP (Thermal Design Power): 105Watt
MEMORY: Support Dual Channel DDR4 1866/ 2133/ 2400/ 2667/ 2933/ 3200(OC) MHz; 2 x DDR4 DIMM Memory Slot; Max. Supports up to 32GB Memory
STORAGE: 4 x SATA3 Connectors (6Gb/s); 1 x M.2 Key M 32Gb/s Connector
LAN: Realtek RTL8111H - 10/100/1000Mb/s Controller
CODEC: Realtek ALC887 7.1-Channel Audio
USB: 6 x USB 3.1 Gen1 Ports (5Gb/s) (4 on rear I/Os and 2 via internal headers); 6 x USB 2.0 Port(2 on rear I/Os and 4 via internal headers)
EXPANSION SLOT: 1 x PCI-E 3.0 x16 Slot; 2 x PCI-E 2.0 x1 Slots

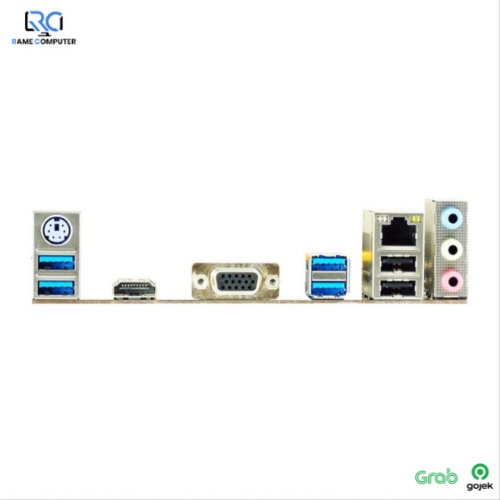

REAR I/O: 1 x PS/2 Keyboard/Mouse; 4 x USB 3.1 Gen1 (5Gb/s) Ports; 2 x USB 2.0 Ports; 1 x HDMI Connector ,resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4; 1 x VGA Port ,resolution up to 1920 x 1200 @60Hz; 1 x LAN port; 3 x Audio Jacks
INTERNAL I/O: 1 x USB 3.1 Gen1 Header(5Gb/s) (each header supports 2 USB 3.1 Gen1 ports); 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports); 4 x SATA3 6Gb/s Connectors; 1 x Front Audio Header; 1 x Front Panel Header; 1 x CPU Fan Connector; 1 x System Fan Connector; 1 x 8-Pin Power Connector; 1 x 24-Pin Power Connector; 1 x Clear CMOS Header; 1 x COM Port Header
DIMENSION: Micro ATX Form Factor Dimension: 19.8cm x 24.4cm ( W x L )
ACCESSORIES: 2 x SATA Cable, 1 x I/O Shield, 1 x DVD Driver, 1 x Quick Guide
