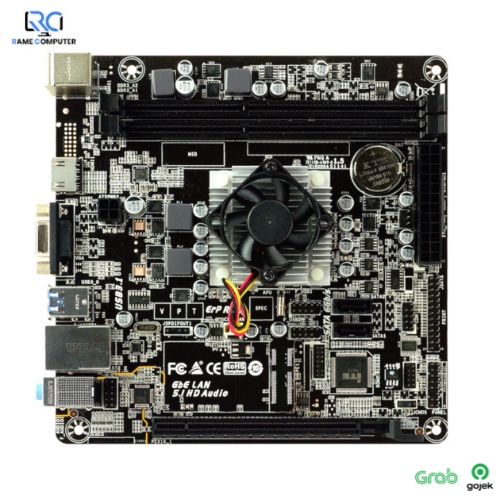

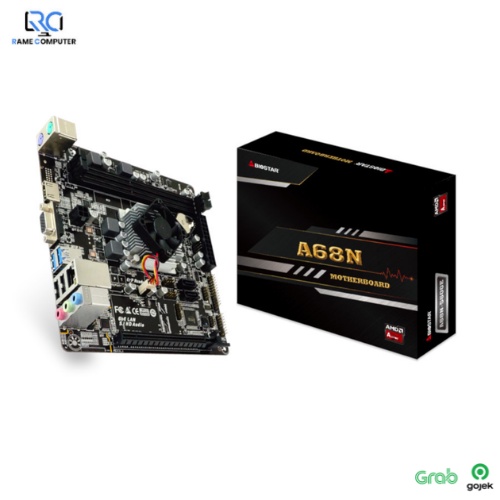

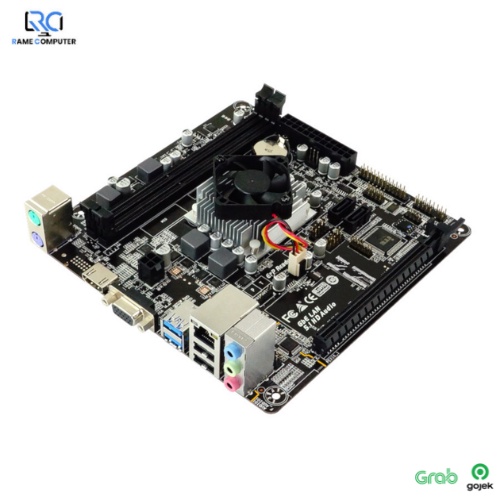

BIOSTAR A68N-5600E AMD On Board A4-3350B DDR3 Mini-ITX Motherboard

Detail BIOSTAR A68N-5600E AMD On Board A4-3350B DDR3 Mini-ITX Motherboard

FEATURES
AMD PRO A4-3350B Processor
Supports 2 DIMM of DDR3 1600 & DDR3L 1333
Supports AMD Radeon™ R4 Graphics
Support HDMI display port
Supports USB 3.1 Gen1 Port
Supports TPM Header

TECH SPECS
Chipset: Carrizo-L
CPU: AMD PRO A4-3350B Processor (Quad Core 2.0GHz up to 2.4GHz, 15W)
MEMORY: Supports Single Channel DDR3 800/1066/1333/1600 MHz; Supports Single Channel DDR3L 800/1066/1333 MHz; 2 x DDR3 & DDR3L DIMM Memory Slot; Max. Supports up to 16GB Memory
INTEGRATED VIDEO: AMD Radeon™ R4 Graphics; Supports HDCP
STORAGE: 2 x SATA3 Connector (6Gb/s): Supports AHCI
LAN: Realtek RTL8111H - 10/100/1000Mb/s Controller
CODEC: Realtek ALC887 5.1-Channel Audio
USB: 2 x USB 3.1 Gen1 Port (2 on rear I/Os); 6 x USB 2.0 Port (2 on rear I/Os and 4 via internal header)
EXPANSION SLOT: 1 x PCI-E 2.0 x16 Slot (x4)

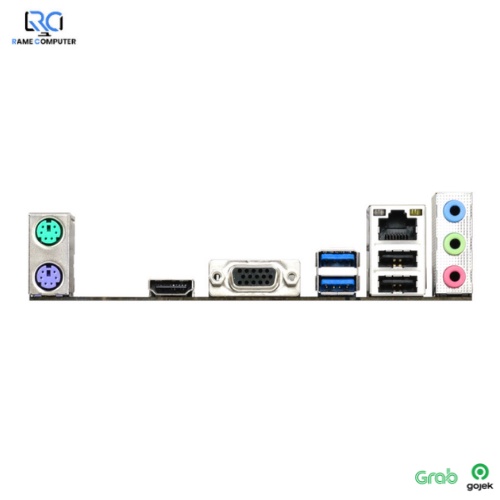

REAR I/O: 1 x PS/2 Mouse, 1 x PS/2 Keyboard, 2 x USB 3.1 Gen1 Ports, 2 x USB 2.0 Port, 1 x HDMI Connector, 1 x VGA Port, 1 x LAN port, 3 x Audio Jacks
INTERNAL I/O: 2 x USB 2.0 Header (each header support 2 USB 2.0 ports), 2 x SATA3 6Gb/s Connector, 1 x Front Audio Header, 1 x Front Panel Header, 1 x S/PDIF-Out Header, 1 x CPU Fan Connector, 1 x System Fan Connector, 1 x TPM Header, 1 x 4-Pin Power Connector, 1 x 24-Pin Power Connector, 1 x Clear CMOS Header, 1 x COM Port Header, 1 x Printer Port Header
DIMENSION: Mini ITX Form Factor Dimension: 17 cm x 17 cm ( W x L )
OS SUPPORT: Support Windows 7 / 10
ACCESSORIES: 2 x SATA Cable, 1 x I/O Shield, 1 x Fully Setup Driver CD, 1 x Quick Guide
