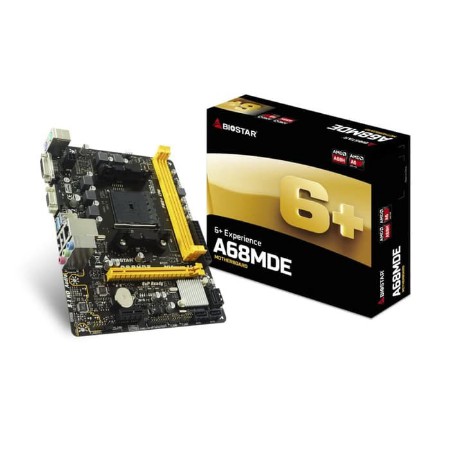

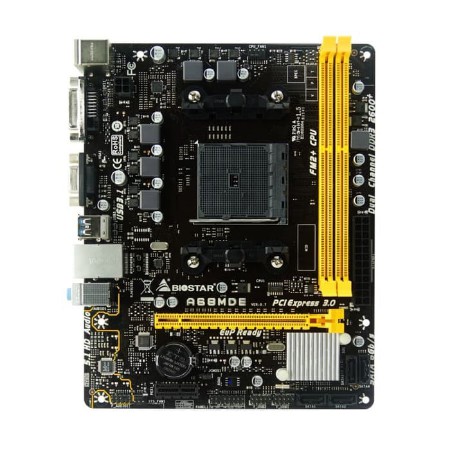

BIOSTAR A68MDE / MHE AMD A68H FM2+ DDR3 Micro ATX Motherboard

Detail BIOSTAR A68MDE / MHE AMD A68H FM2+ DDR3 Micro ATX Motherboard

Support Socket FM2+/FM2 processors AMD A-series/ E2-series processor
Support AMD Mutil Core(x4,x2)
AMD A68H Chipset
Support 2-DIMM DDR3-2600(OC)/ 2400(OC) up to 32G maximum capacity
Support USB 3.1 Gen1
Support DVI display port
Support GbE LAN
AMD Dual Graphics Technology

TECH SPECS
Chipset: AMD A68H
CPU SUPPORT: AMD A10 Processor, AMD A8 Processor, AMD A6 Processor, AMD A4 Processor, AMD E2 Processor, AMD Athlon™ II X4 Processor, Maximum CPU TDP (Thermal Design Power): 100Watt
MEMORY: Support Dual Channel DDR3 2600(OC)/2400(OC)/2133/1866/1600/1333/1066/800 MHz; 2 x DDR3 DIMM Memory Slot; Max. Supports up to 32GB Memory
EXPANSION SLOT: 1 x PCI-E 3.0 x16 Slot(supported by FM2+ CPU), 1 x PCI-E 2.0 x1 Slot
STORAGE: 4 x SATA3 Connector; Support SATA RAID: 0,1,10
USB: 2 x USB 3.0 Port, 2 x USB 2.0 Port, 2 x USB 2.0 Header
LAN: Realtek RTL8111G - 10/100/1000 Controller
INTEGRATED VIDEO: By CPU model
CODEC: Realtek ALC662 6-Channel HD Audio

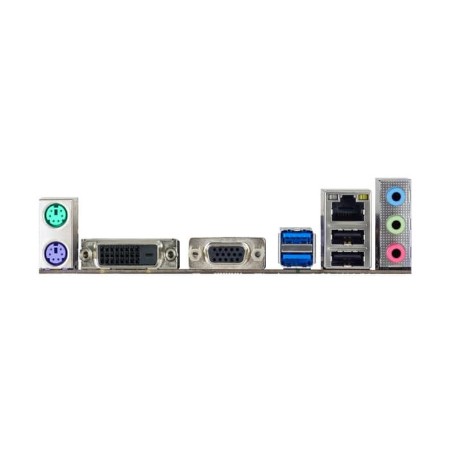

REAR I/O: 1 x PS/2 Keyboard/Mouse, 2 x USB 3.1 Port, 1 x DVI-D Connector, 1 x VGA Port, 1 x LAN port, 3 x Audio Jacks
INTERNAL I/O: 2 x USB 2.0 HeaderSupport 4 devices, 4 x SATA3 6Gb/s Connector, 1 x Front Audio Header, 1 x Front Panel Header, 1 x CPU Fan Connector, 1 x System Fan Connector
DIMENSION: Micro ATX Form Factor Dimension: 215 x 170mm ( W x L )
BUNDLE SOFTWARE: BullGuard
