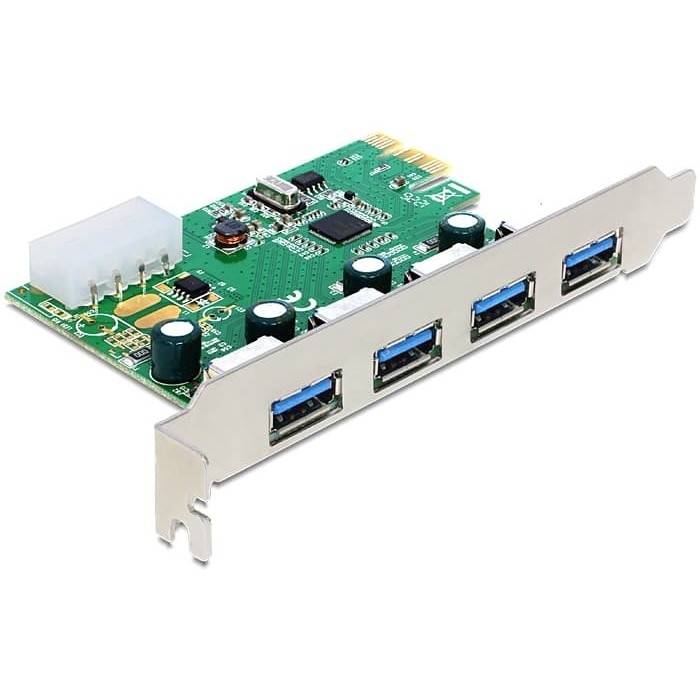

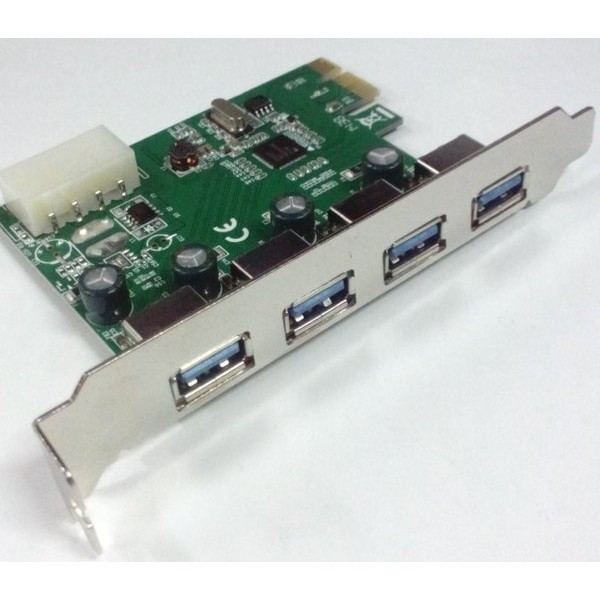

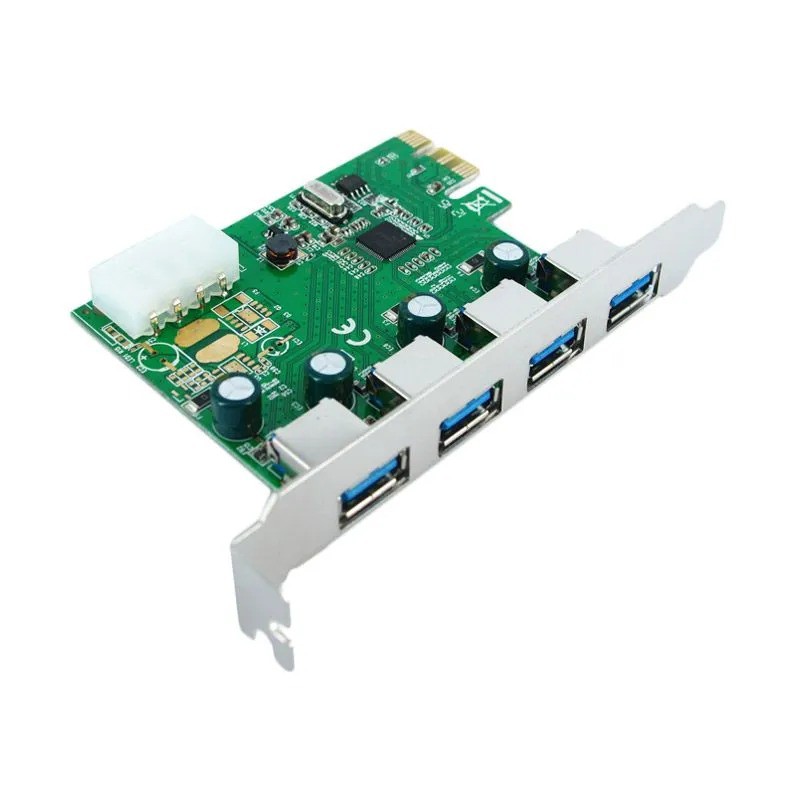

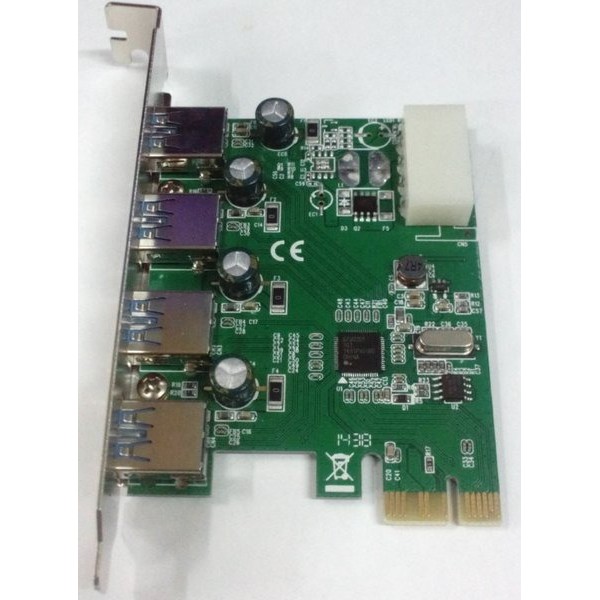

BAFO PCI Express CARD 4 PORT USB 3.0 NEC P7202

Detail BAFO PCI Express CARD 4 PORT USB 3.0 NEC P7202

Jual BAFO PCI Express CARD 4 PORT USB 3.0 NEC P7202

PCI-E card 4x USB3.0 port, P7202, 10X FASTER than USB2.0


Features
Brand : BAFO
Supports PCI Express Base Specification Revision 2.0
Single-lane ( x1) PCI Express throughput rates up to 5 Gbps
Compliant with Universal Serial Bus 3.0 specification Revision 1.0
Compliant with xHCI (eXtensibleHost Controller Interface) specifications Revision 0.95
Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
Supports USB data transfer rate of 1.5/12/480/5000 Mbps
Expands two external USB3.0 Super-Speed ports on the system
Each USB port supplies maximum +5V / 900mA power output to USB device
Hot-swapping feature allows you to connect/disconnect devices without powering down the system
Driver supports for Microsoft Windows 2000, XP/Vista/Win 7 operation system

POWER - must be connected: Built-in 4-pin powermolex 4pinconnector for receiving extra power supply from PSU system


Specification

Model : USB3.0
Controller: Chipset NEC 7202
Port: 4 external USB3.0 ports
Speed: Data Transfer rate of 1.5/12/480/5000 Mbps
Low Speed (1.5Mbps), Full Speed(12Mbps), High Speed(480Mbps), Super Speed(5Gpbs)
Power Output: +5V / 900mA
O.S. support: Windows2000/XP/2003/Vista/7, (32/64-bit)
Environment : Operation temp. 0 C ~ 57 C
Operation humidity: 5 ~ 95% RH
Storage temp.-20 C ~ 85 C

Weight : 70gram
Dimension : 120 mm x 69 mm x 19 mm


Package contents : ( weight : 150 grams )

1 X Bafo 4-port USB3.0 pci -e card
1 X CD driver
