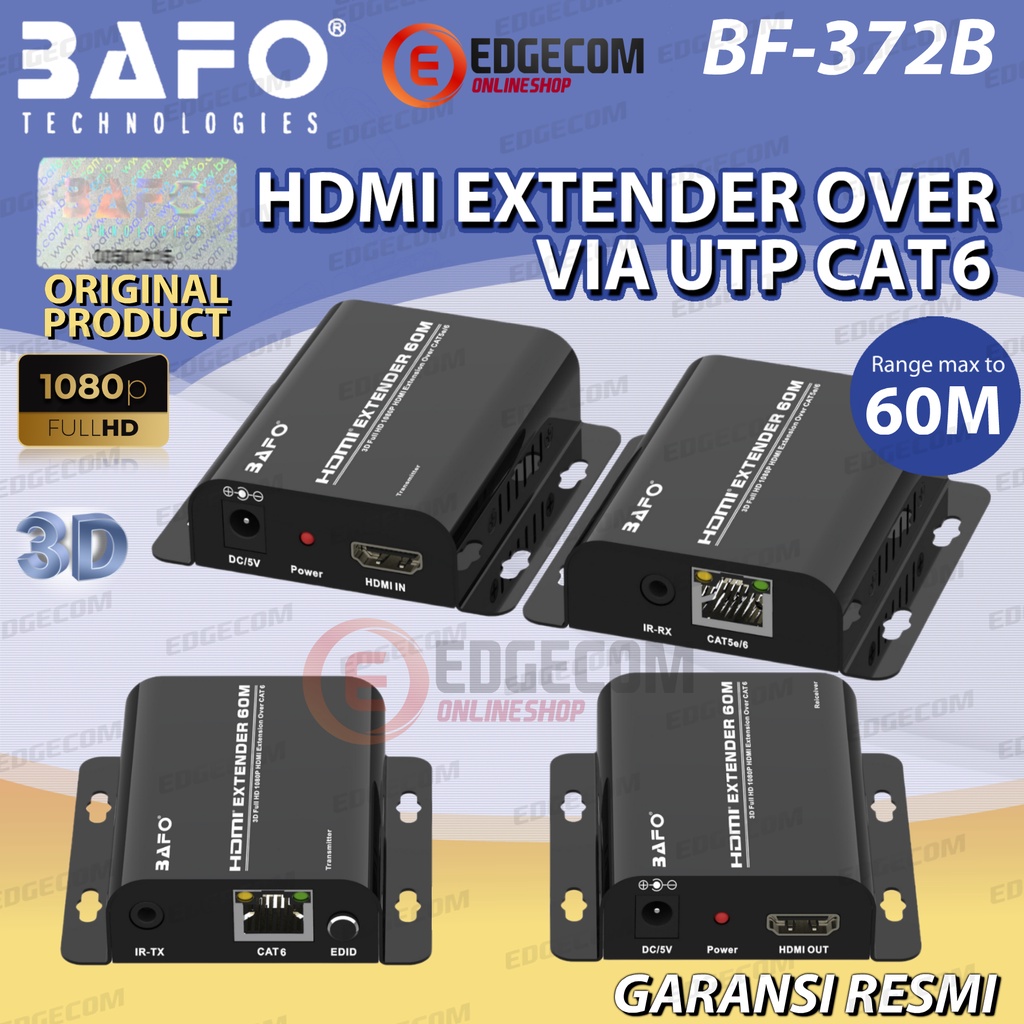

BAFO HDMI Extender Via UTP 60 Meter BF-372B ORIGINAL

Detail BAFO HDMI Extender Via UTP 60 Meter BF-372B ORIGINAL

NEW!!!

HDMI Extender over Cat6 LAN Cable 60M BF-372B pengganti BF-372A yg sudah discontinue

Requirements:

1. HDMI Source Device (DVD / PS3 / Graphics Cards / CCTV / Media Player)
2. HDMI Display Device SDTV / HDTV / Projector with HDMI Port
3. UTP/STP Cat6 / Cat6E / Cat7 Cable
4. Follow Standard IEEE-568B
5. Transmit length more than 40m by CAT6 cable or higher level cable.

Specifications:

Power Supply: 5v - 2pcs
Resolution Support: 480i Hz / 480p Hz
576i Hz / 576p Hz
720p / Hz
1080i / Hz / 1080p / Hz

Product Features:

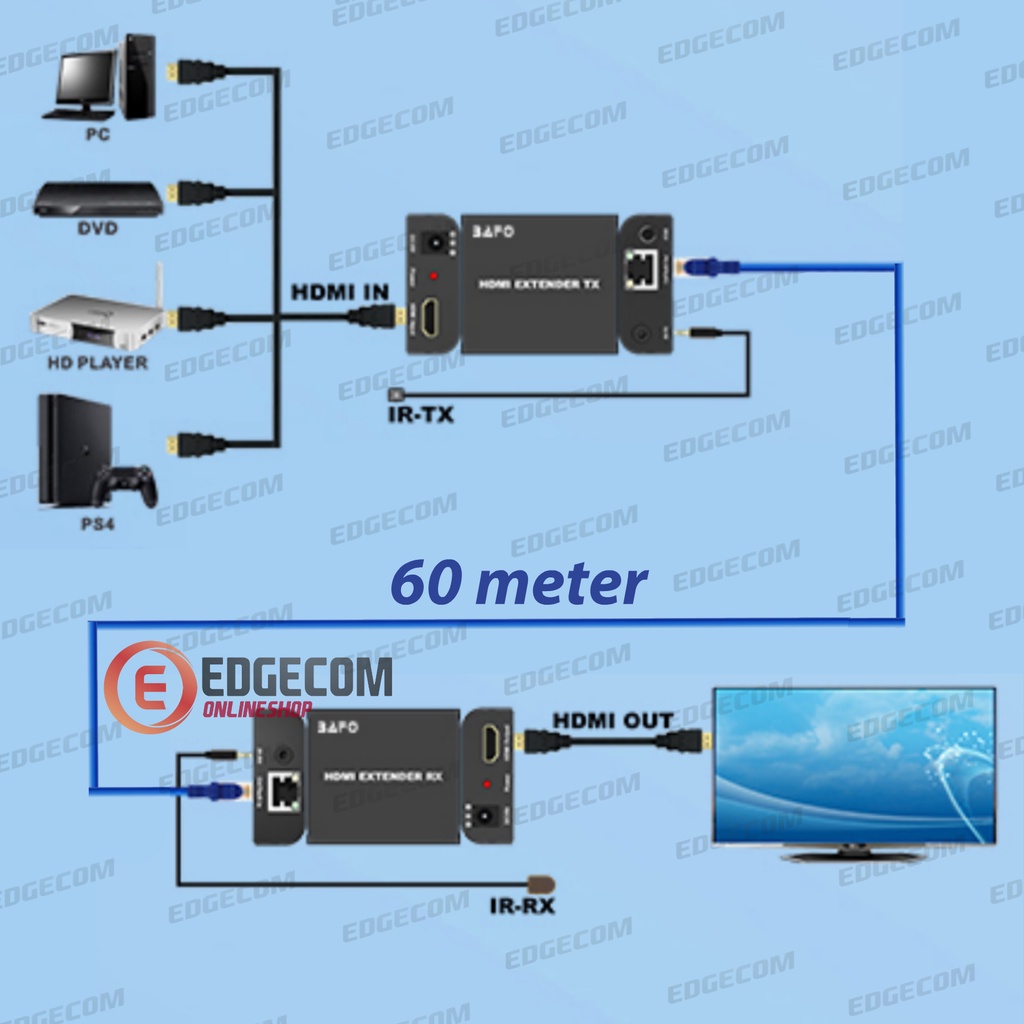

• Signal transmission : Cat6 or higher level cable up to 60M
• Support HDMI 1.3 and HDCP 1.2 protocol
• Support Video input res : 60fps/1080P/720P/576P/480P
• Support Video Output res : 60fps/1080P/720P/576P/480P
• Support CEC
• Support 20~60KHz IR working
• Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-A3/DSD
• Install in minutes
• Need DC5V/1A power Supply

Network Cable: Low Resistance and consumption (OFC Core) CAT6 . CAT / CAT7

Transmission Length: Transmit length more than 40m / CAT6 cable support up to 60m)
Power Consumption: TX: 2w RX: 2w
Product Dimension: LxWxH: 66x56x22 mm
