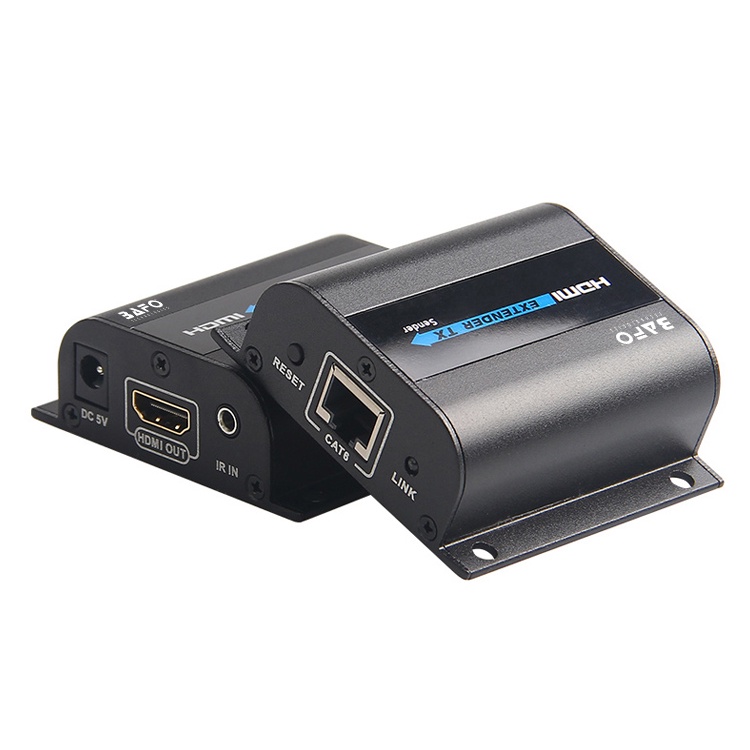

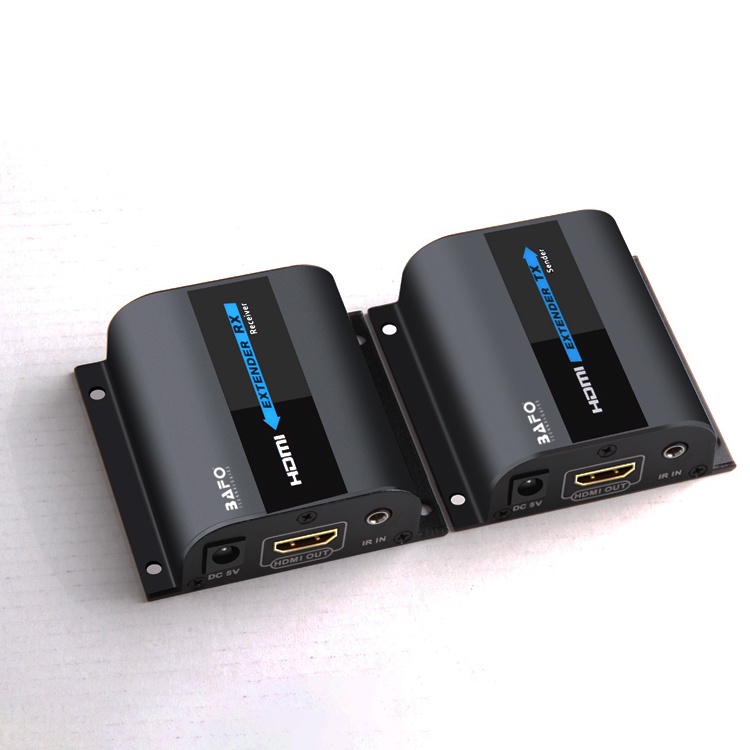

BAFO HDMI Extender CAT5/6 up to 60M

Detail BAFO HDMI Extender CAT5/6 up to 60M

HDMI extender adalah alat yang berupa sepasang konverter dengan fungsi membuat kabel LAN UTP cat 5e/6 sebagai pengganti fungsi Kabel HDMI. Sepasang konverter ini terdiri dari Sender (pengirim) dan Receiver (Penerima).

Features :
Use only one CAT-5/6 cable to substitute HDMI cable to achieve long distance transmission.
Follow the standard of IEEE-568B.
Transmission distance more than 40m, Cat6 support up to 60 meters.
Auto-adjustment of feedback, equalization and amplify, the user does not need to care about the length of the cable.
Signaling rates up to 2.25Gbits in support of 1080p display.
HDCP Compliant.

Specifications :
Brand : Bafo
Type: BF-372A
Input video signal: 0.5 to 1.0 v p-p
Output DDC signal: 5V p-p (TTL)
Support : 480i / 480p @60Hz, 576p / 576i @50Hz, 720p, 1080i, 1080p @50/60Hz
Sender unit :
Weight : 70 g
Size : 66 x 56 x 22 mm
Case : Plastic
Input :
Gold plated HDMI A type female ( IN )
Power port : DC 5V
Output :
1 x shielded RJ45 female (Tx)
Reset Button
LINK - LED to show work status

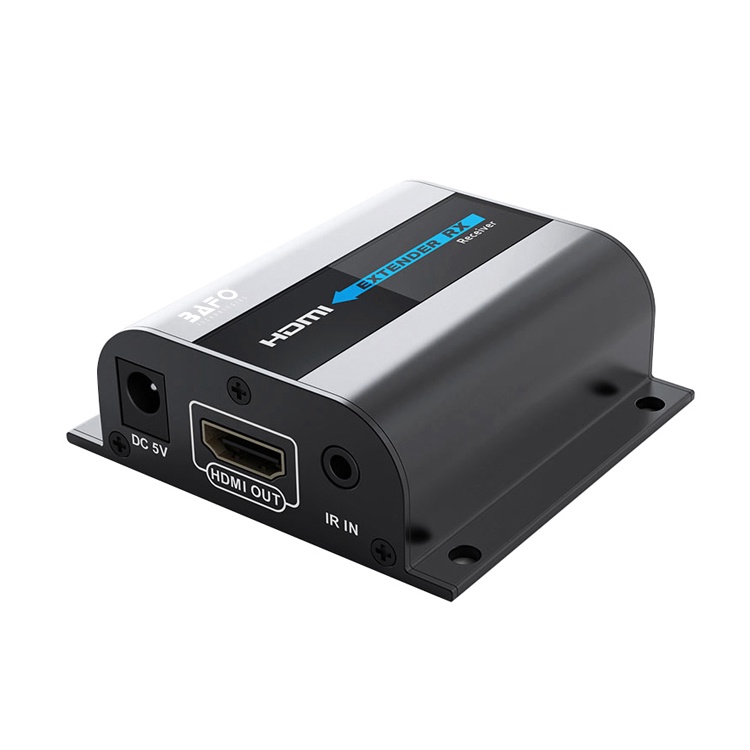

Receiver Unit :
Weight : 70 g

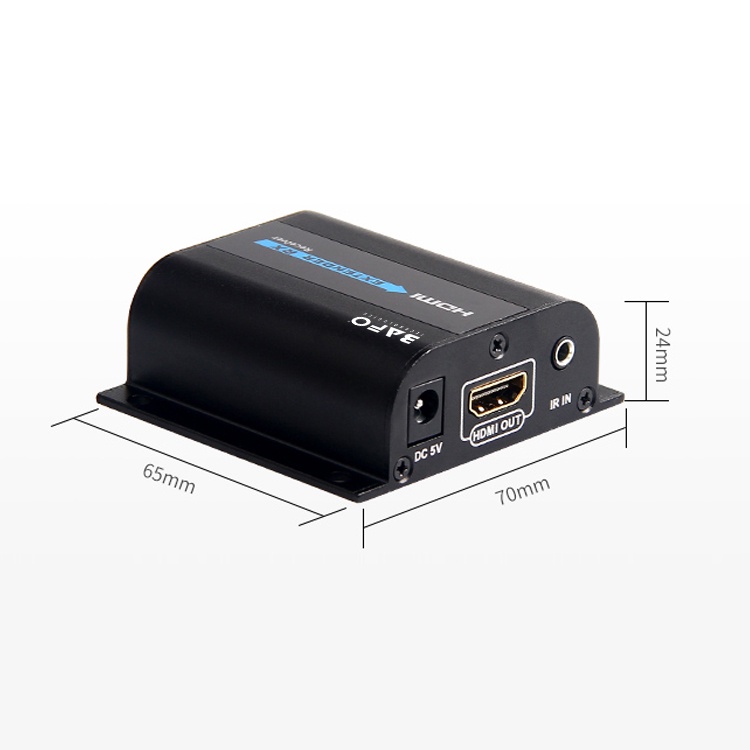

Size : 66 x 56 x 22 mm
Case : Plastic
Input :
1 x shielded RJ45 female ( Rx )
LINK - 2 x LED to show work status
Length Button (network cable length adjust button)
Output :
Gold plated HDMI A type female (OUT)
Power Port : DC 5V

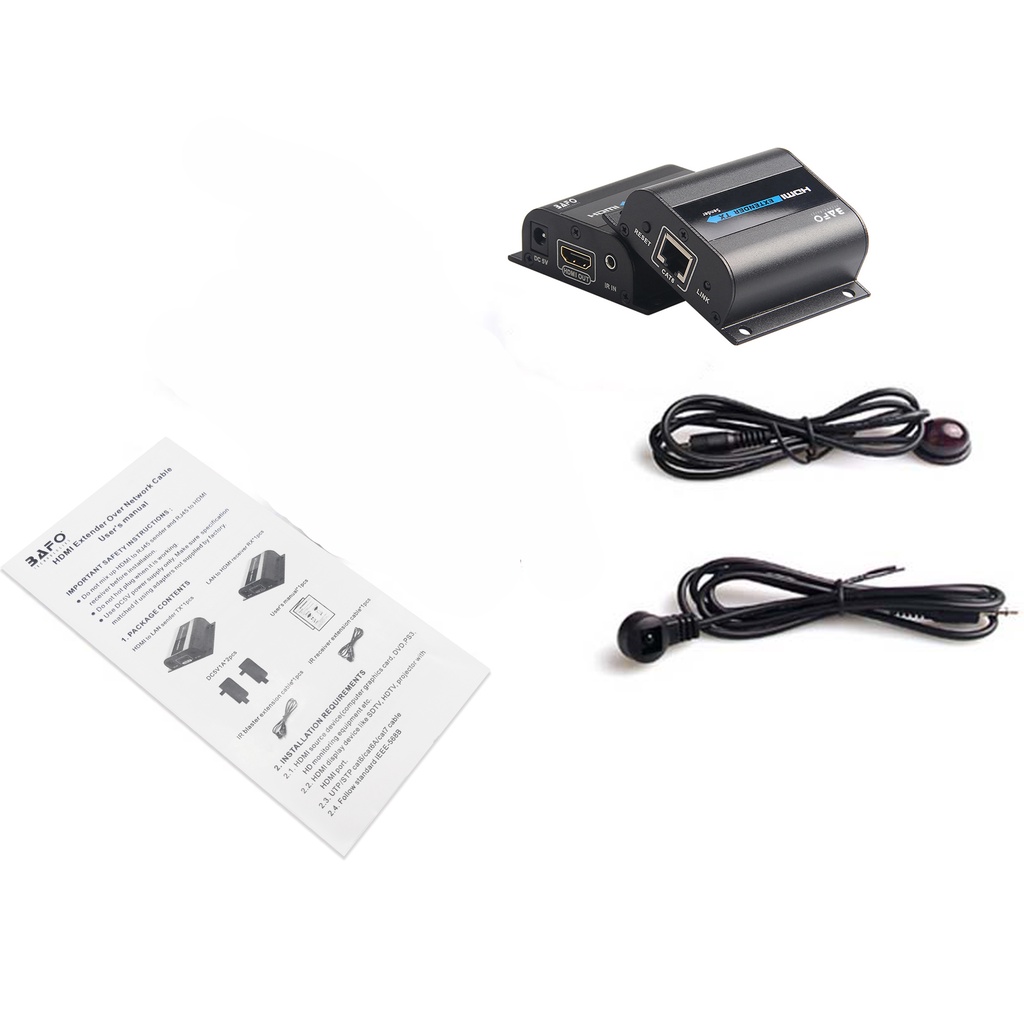

In Box :
1 x Sender unit HDMI Extender
1 x Receiver Unit HDMI Extender
2 x Power Adapters dc 5v
1 x User Instructions

Gambar produk
