[10-C7] Vibration Motor Module PWM Mini Alarm Phone DC for Arduino

Elektronik > Kelistrikan > Alarm > [10-C7] Vibration Motor Module PWM Mini Alarm Phone DC for Arduino
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:RAFTECHLihat semua produk Elektronik oleh RAFTECH
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail [10-C7] Vibration Motor Module PWM Mini Alarm Phone DC for Arduino

Deskripsi [10-C7] Vibration Motor Module PWM Mini Alarm Phone DC for Arduino
Rated voltage: 5.0VDC
Working voltage: 3.0 - 5.3VDC
Rated speed: 9000 rpm minimum
Rated current: up to 60 mA
Starting current: up to 90 mA
Starting voltage: DC3.7V
Insulation resistance: 10Mohm
Compatibility: Compatible with UNO R3/ Mega2560
Great for DIY projects
Port: Digital
Pitch: 15mm
Fixing hole: 3mm
Motor: 10mm in diameter and 2.7mm in thickness
Drive: MOS tube high level trigger, low level cutoff
IN is digital high and low input

Gambar produk

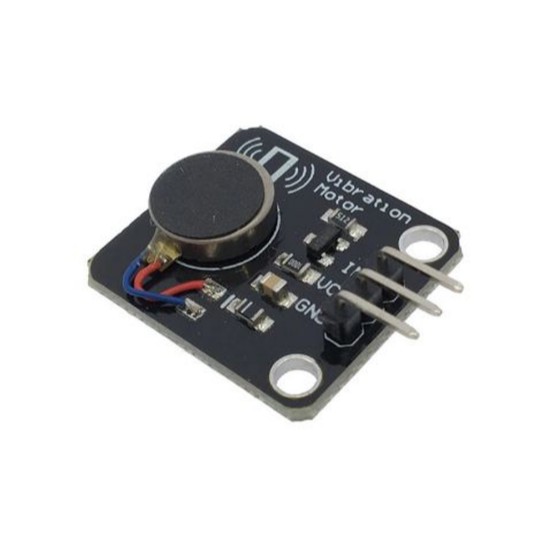

[10-C7] Vibration Motor Module PWM Mini Alarm Phone DC for Arduino

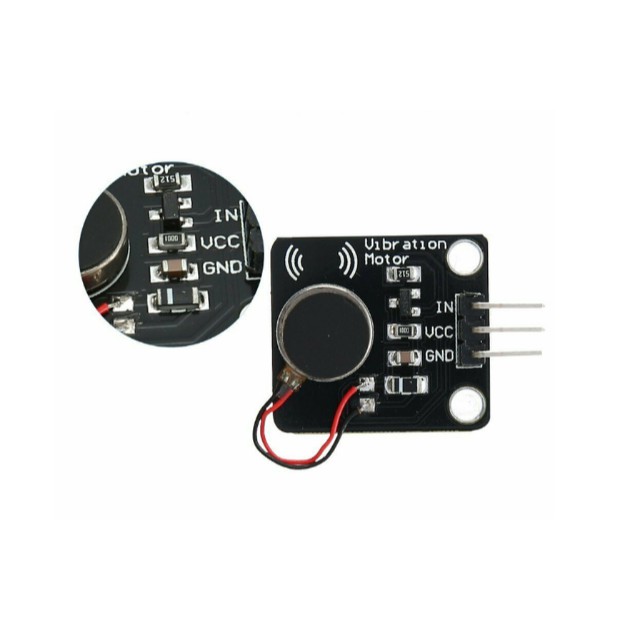

[10-C7] Vibration Motor Module PWM Mini Alarm Phone DC for Arduino
[10-C7] Vibration Motor Module PWM Mini Alarm Phone DC for Arduino
[10-C7] Vibration Motor Module PWM Mini Alarm Phone DC for Arduino
Lihat lebih banyak informasi produk
