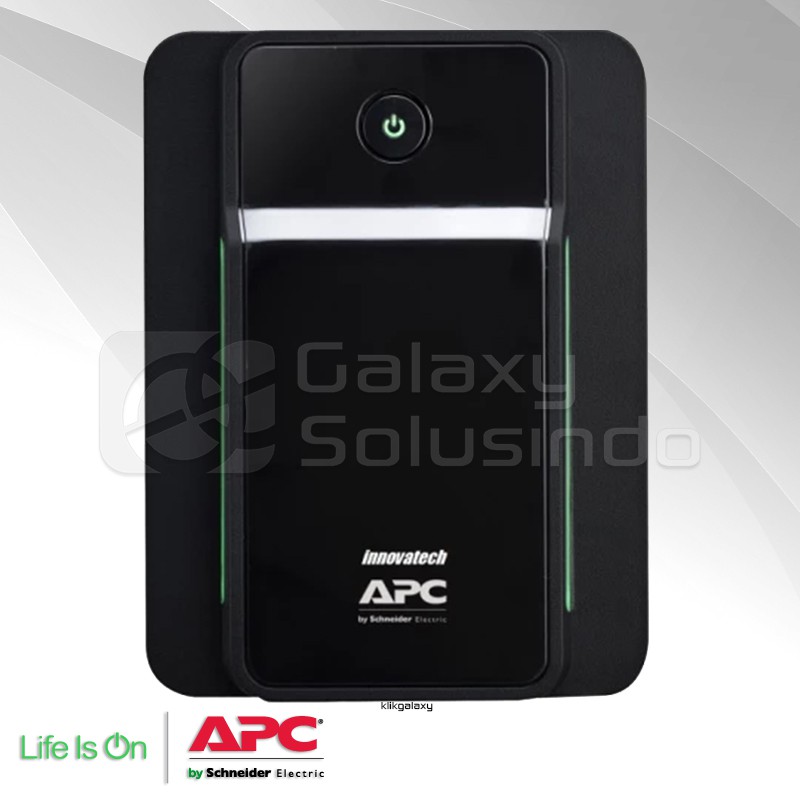

APC BX1600MI-MS Back-UPS 1600VA, 230V, AVR, Universal Sockets

Detail APC BX1600MI-MS Back-UPS 1600VA, 230V, AVR, Universal Sockets

OverviewLead time
Usually in Stock

Generalprovided equipment
User manual

max runtime
240 min

Number of tare power
20 W

Number of power module free slots
0

Number of power module filled slots
0

redundant
No

UPS size
WS

Physicalcable length
1.22 m

colour
Black

depth
39 cm

height
19 cm

mounting preference
No preference

net weight
10.3 kg

mounting mode
Not rack-mountable

two post mountable
0

USB compatible
No

width
14 cm

Inputnetwork frequency
50/60 Hz +/- 5 Hz auto-sensing

plug standard
IEC 60320 C14

input voltage limits
140...300 V

number of cables
1

input voltage
230 V

cos phi
0.56

Outputrated power in W
900 W

Maximum configurable power in W
900 W

output frequency
50/60 Hz +/- 1 Hz sync to mains

UPS type
Line interactive

Wave type
Stepped approximation to a sinewave

nb of power socket outlets
4 universal

curve equation
Efficiency

curve fixed loss
0.0206

curve load maximum
100 %

curve load minimum
3 %

curve proportional loss
0

curve square loss
0.0106

curve X-axis maximum
100 %

curve test cond ID
Curve fit of data measured in accordance with the ENERGY STAR Test Method for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 230V/50Hz electrical input and balanced resistive load (PF = 1.0) output.

curve X-axis minimum
0 %

curve X-axis title
Load

curve X-axis units
Percentage

curve Y-axis maximum
100 %

curve Y-axis minimum
50 %

curve Y-axis title
Efficiency

curve Y-axis units
Percentage

full load runtime
00:01:00 900 W

graph display
1

half load runtime
00:06:30 450 W

output voltage
230 V

Maximum configurable power in VA
1600 VA

rated power in VA
1600 VA

Transfer time
6 ms typical : 10 ms maximum

Conformanceproduct certifications
CE

standards
EN/IEC 62040-1
EN/IEC 62040-2
CE

equipment protection policy
Lifetime : 50000 euros

Environmentalambient air temperature for operation
0…40 °C

relative humidity
0…95 % non-condensing

operating altitude
0...3000 m

ambient air temperature for storage
-15…40 °C

Storage Relative Humidity
0…95 % Non-condensing

storage altitude
0…3000 m

acoustic level
40 dBA

show note OP temperature
No

IP degree of protection
IP20

Batteries & Runtimebattery type
Lead-acid battery

number of battery filled slots
0

number of battery free slots
0

Battery recharge time
8 h

liquid value
0

battery curve
C

Battery power in VAH
136 VAh runtime
168 VAh capacity

battery life
3…5 year(s)
