Alat Ukur ketebalan besi plastik keramik Thickness Gauge Ultrasonic GM100 -

Detail Alat Ukur ketebalan besi plastik keramik Thickness Gauge Ultrasonic GM100 -

Benetech GM100
dapat koper
******
Ultrasonic Thickness Gauge digunakan untuk mengukur ketebalan berbagai material seperti besi, alumunium, plastik, keramik, kaca dll

I.Introduction:

Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etcin industries of petroleum,shipbuilding,power station,and machine manufacturing.

II.Parameters:

*Measuring range: 1.2~220mm (Steel)
*Accuracy: (1%H+0.1) mm
*Resolution: 0.1mm

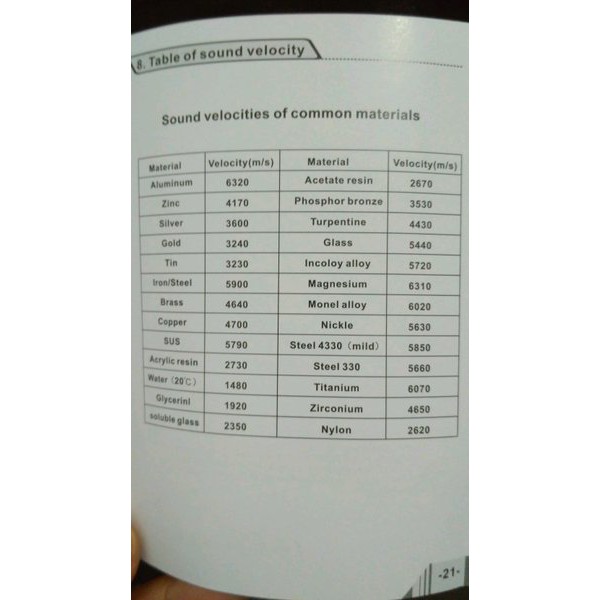

*Sound velocity range: 1000~9999m/s
*Working frequency: 5MHz
*Minimum limit for tube measuring: 20*3mm (Steel)
*Auto calibration to assure the accuracy
*Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer.
*Data store/ Data recall/ Data delete function
*Sound velocity measurement
*Low battery indication
*Auto power off
*LCD backlight display
*Packing Method: Gift box + PP box
*Power supply: 3pcs*1.5V AAA alkaline batteries
*Weight: 210g
*Dimension: 70*145*28mm

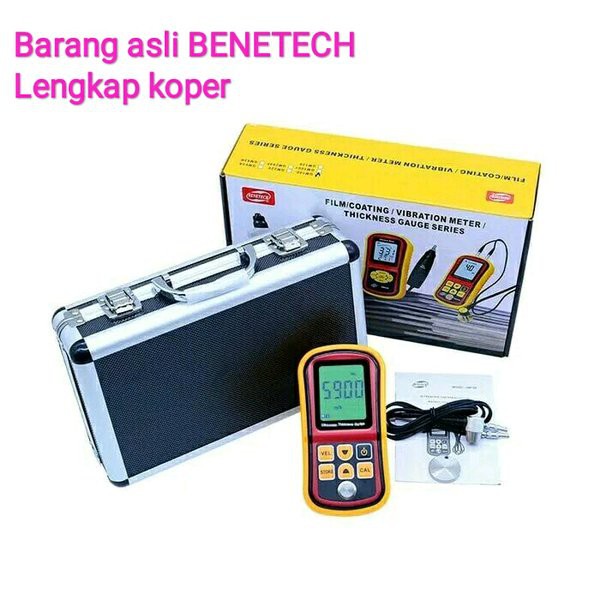

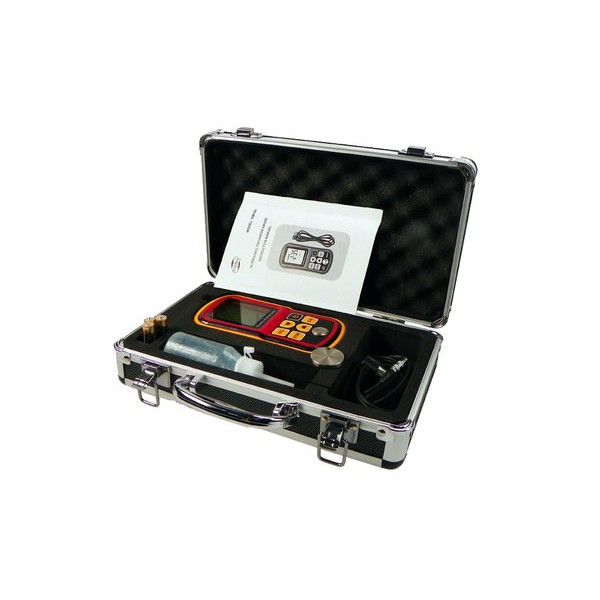

Package Include:
Ultrasonic thickness gauge x 1
5MHz/10mm probe x 1
Standard sample block:4mmx1
Carrying case x 1
Manual x 1

Gambar produk
