Adapter POE UBIQUITI UBNT24-12W-G 24V 0.5A Gigabit

Detail Adapter POE UBIQUITI UBNT24-12W-G 24V 0.5A Gigabit

Spesifikasi :
- Model : POE-24-12W-G
- Dimensions : ()
- Weight : 99.4 g (3.51 g)
- Output Voltage : 24VDC @ 0.5A
- LAN Activity Indicator : No
- Gigabit LAN Port : Yes
- Remote Reset Capability : Yes
- Reset Button : Yes
- Input Voltage : 90-260VAC @ 47-63 Hz
- Input Current : 0.3A @ 120VAC, 0.2A @ 240VAC
- Inrush Current : 30A Peak @120VAC, 60A Peak @ 230VAC
- Efficiency : Output Ripple : 1% Max.
- Switching Frequency : 50 kHz
- Line Regulation : 1%
- Load Regulation : Pair Powering : Pins and Pins Operating Temperature : 0 to 40 C (32 to 104 F)
- Storage Temperature : -30 to 70C (-22 to 158 F)
- Operating Humidity : 35 to 95% Non-Condensing
- AC Connector : IEC-320 C6
- Data IN / POE : RJ45 Shielded Socket
- Surge Protection : Difference and Common Mode
- Clamping Protection : 11V Data, 60V Power
- Max. Surge Discharge : 1500A (8/20S) Power
- Peak Pulse Current : 36A (Data
- Shunt Capacitance : 5 pf data
- Response Time : 1 nS
- Compliance :
IEC AENENFCC Class B
- AC Cable with Earth Ground : USA, EU, AR, BR, UL, CCC, Mexico

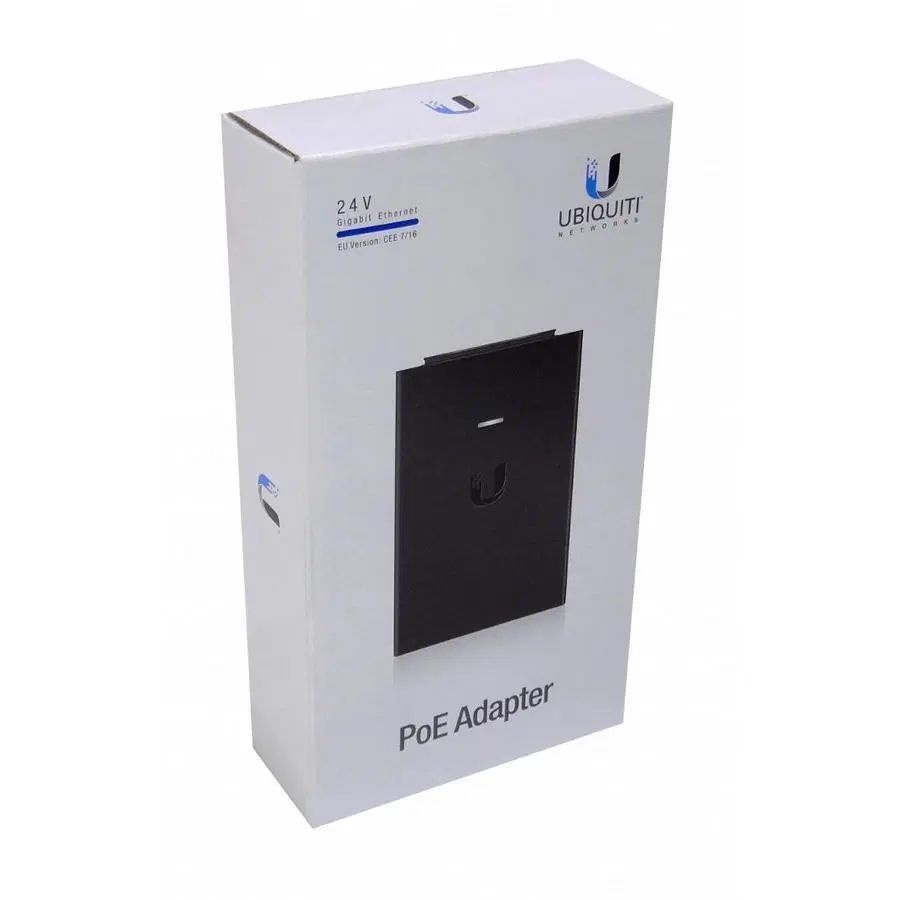

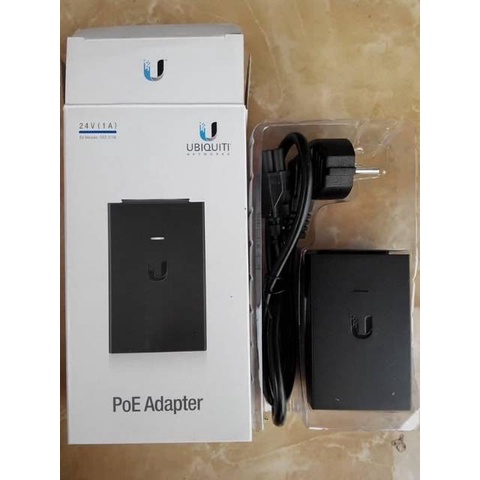

Gambar produk
