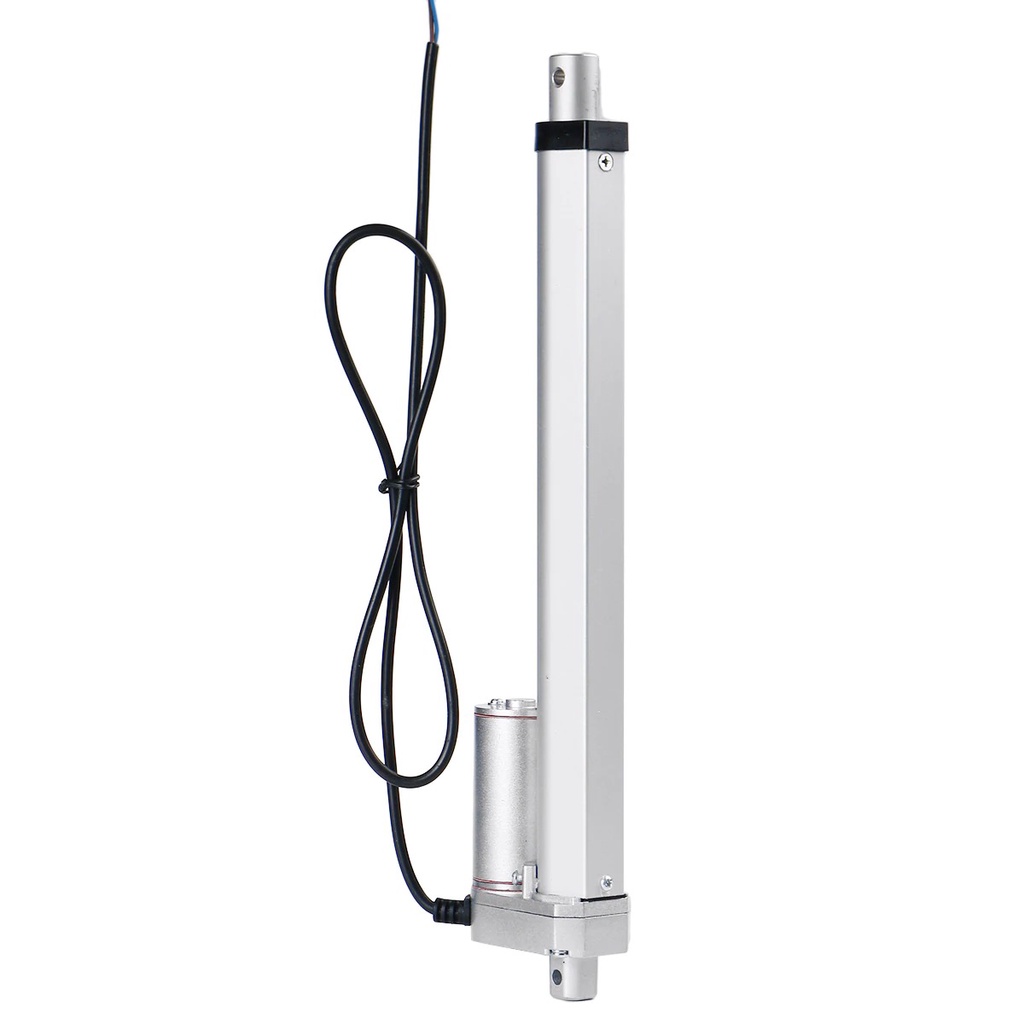

Actuator Electric Linear Motor Controller 800N 12V Speed 20mm/s 12mm/s

Detail Actuator Electric Linear Motor Controller 800N 12V Speed 20mm/s 12mm/s

Spesifikasi

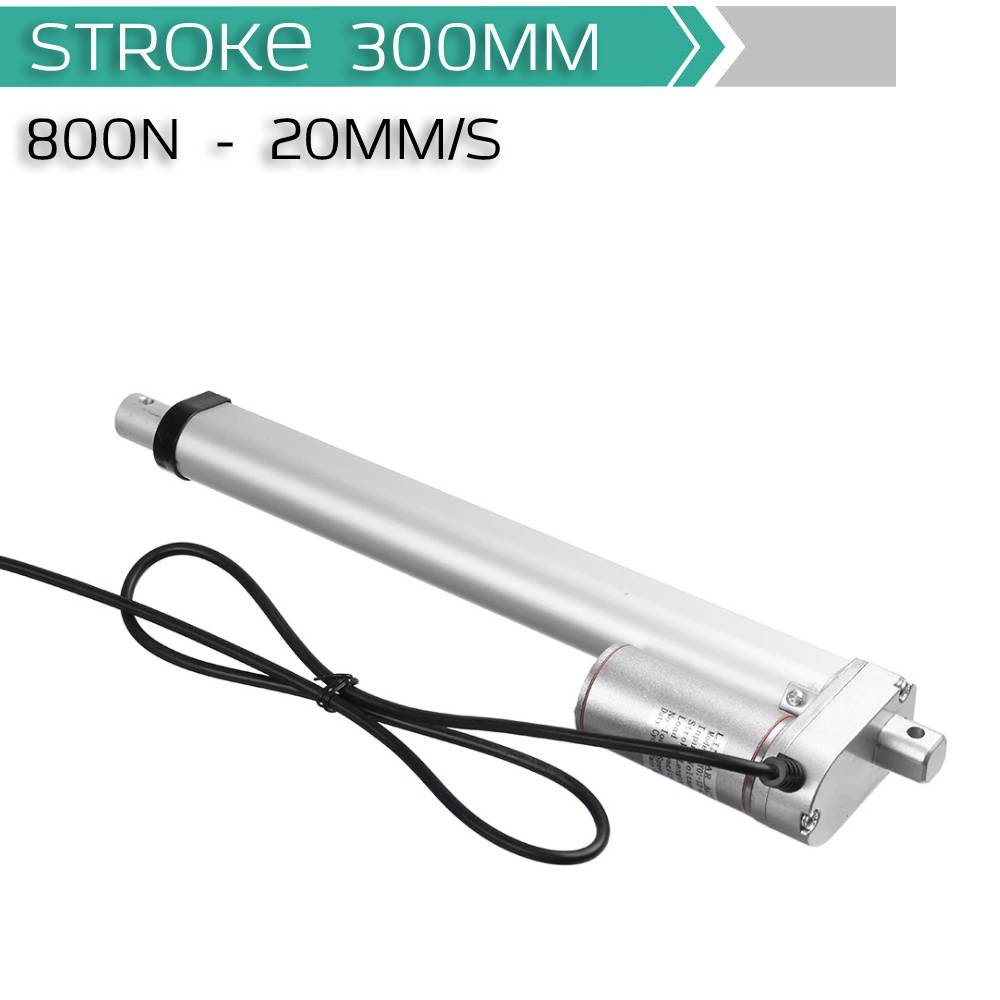

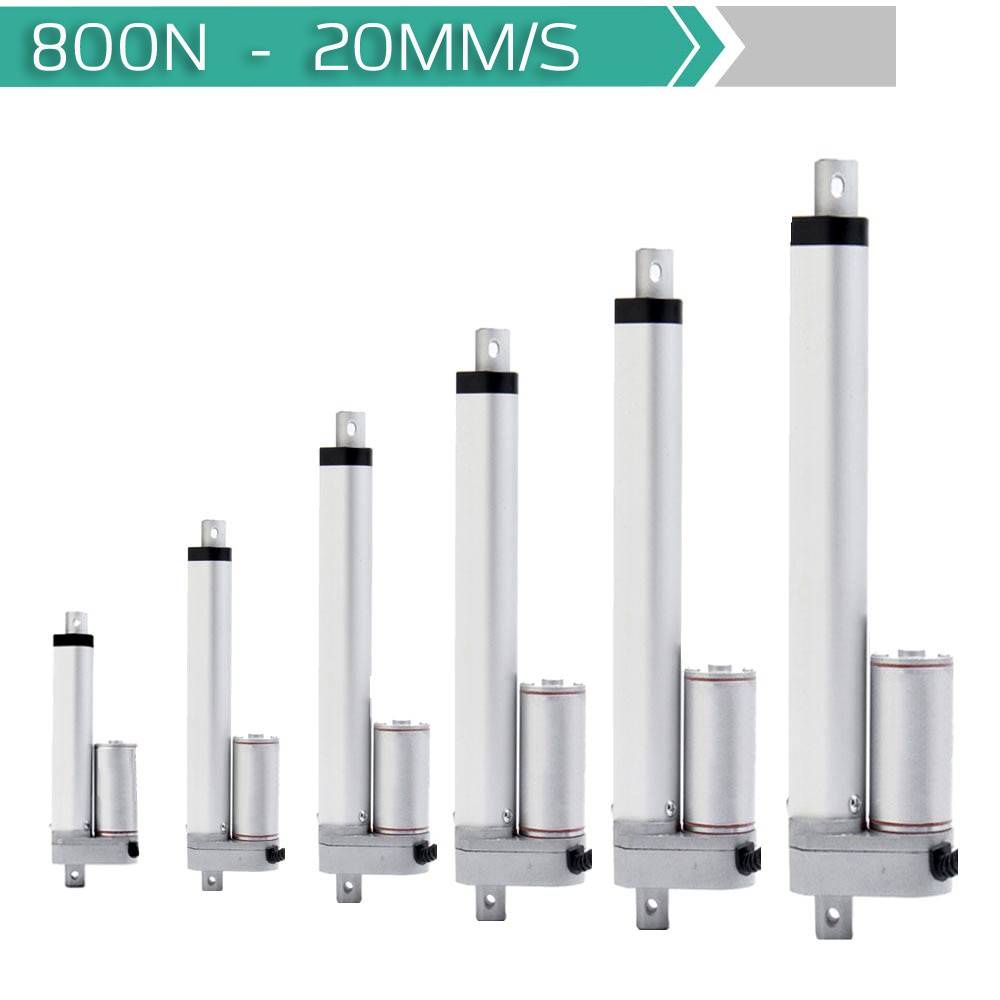

Stroke : 500mm / 400mm / 300mm / 200mm / 150mm / 100mm
Speed: 20mm/s dan 12mm/s (Pilih di Variasi Produk)
Drive Voltage : 12V
Maximum Thrust: 80KG/800N
Tipe Duty : 10%

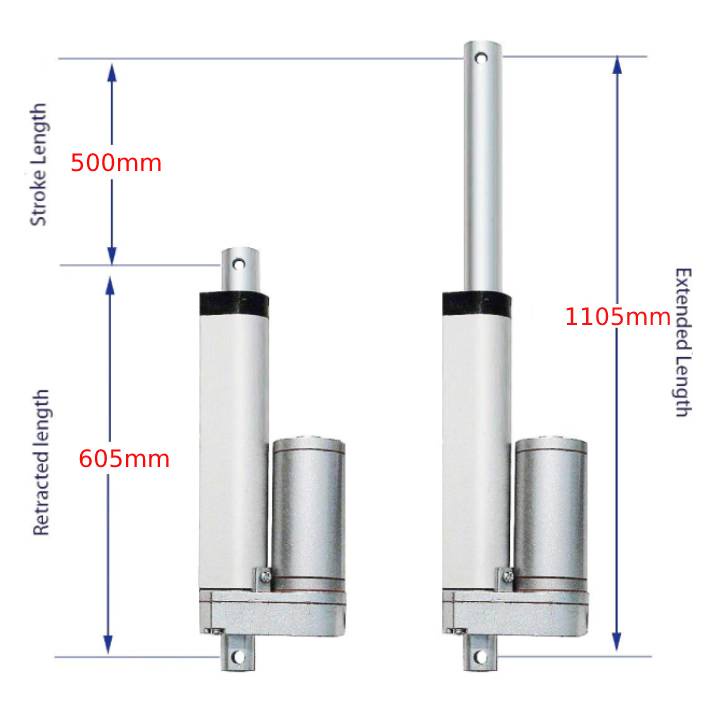

Minimum installation size (fully retracted around in the middle of the distance between the two holes): L1= Stroke+105 mm
Maximum installation size (fully extended around the middle of the distance of the two holes): L = 2xS(stroke)+105mm
Ambient temperature :-26 to +65 degree
Protection class: IP 54

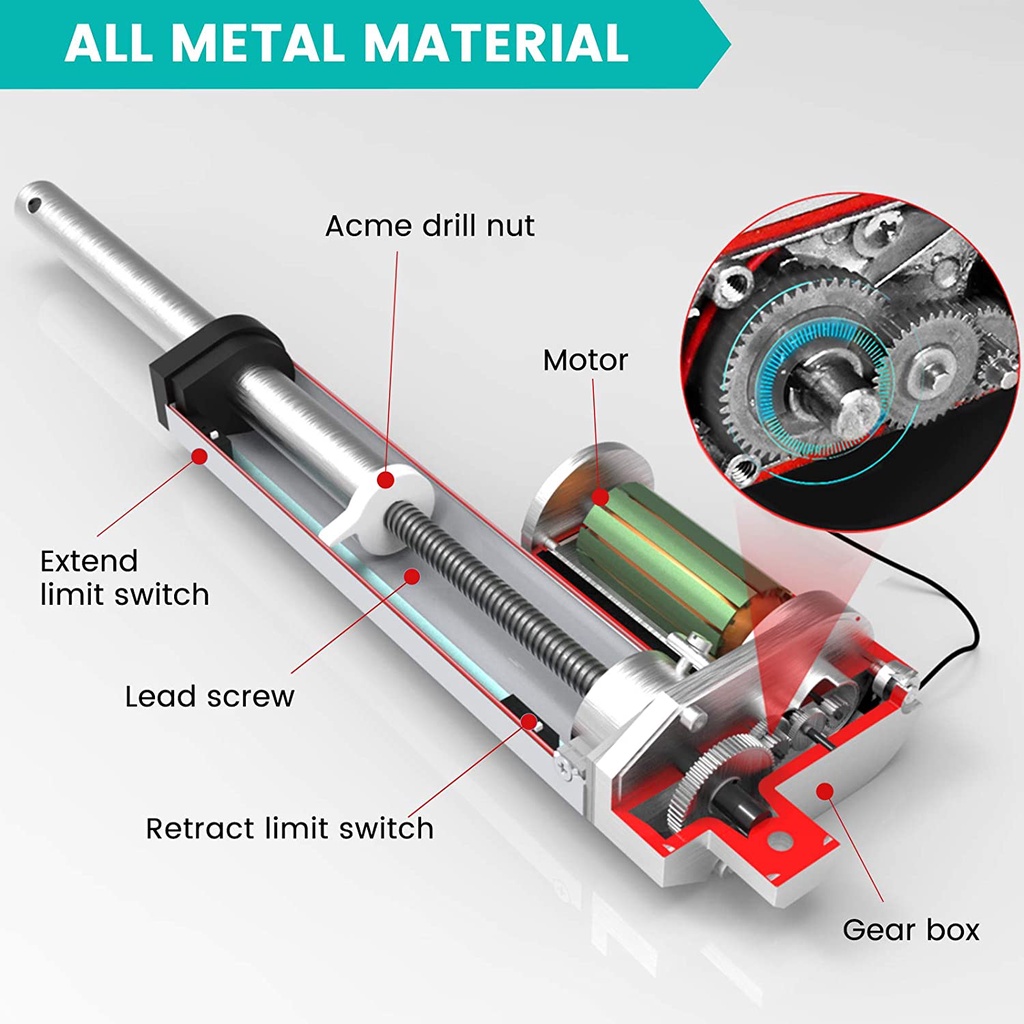

Built-in limit switches(When completed stroke, linear actuator automatically stops!)
Low noise design, noise levels below 42 db
Work rule: 10%. Loading rated thrust need 10% work rule. In 20 minutes, 2minutes work 18minutes rest. If lower load can extend work time.

Package include:

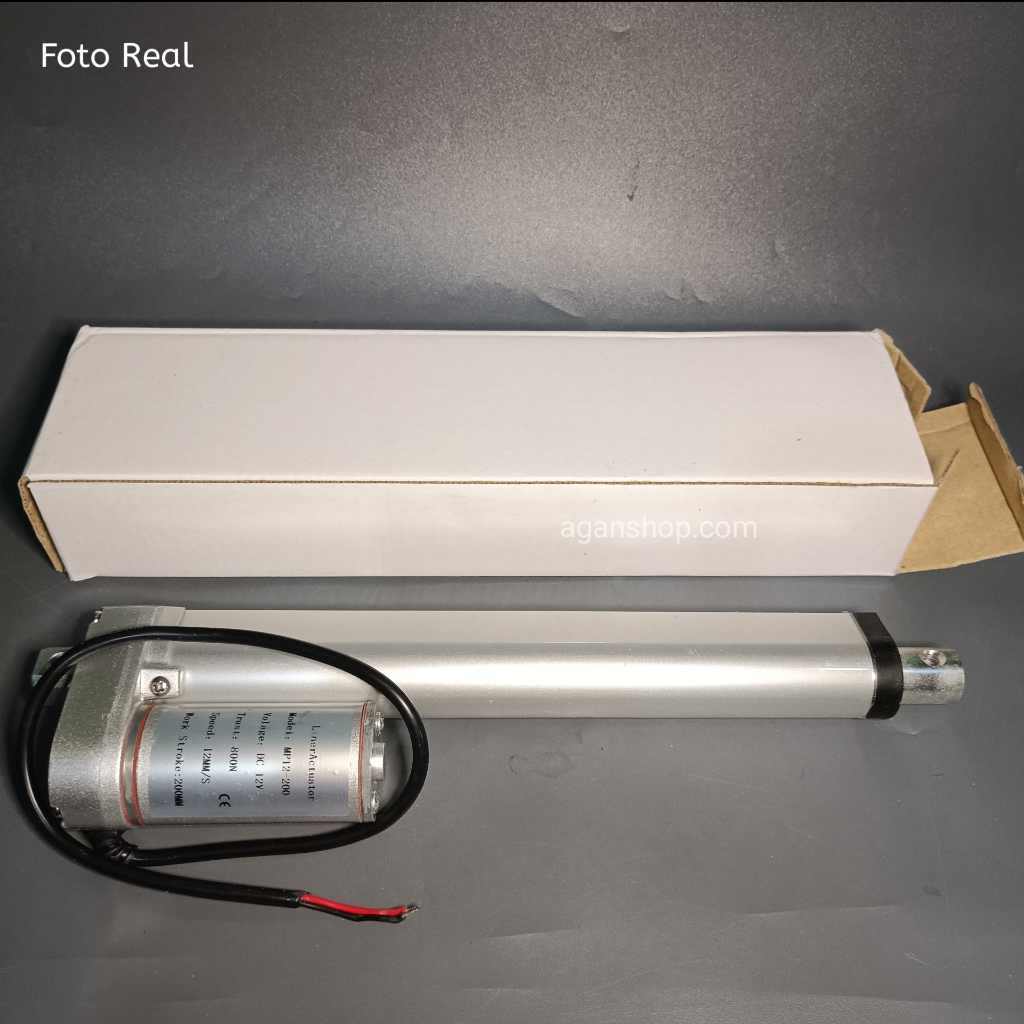

1 x Actuator 800N 20mm/s atau 12mm/s (Sesuai Variasi yang Dipilih)

Gambar produk
