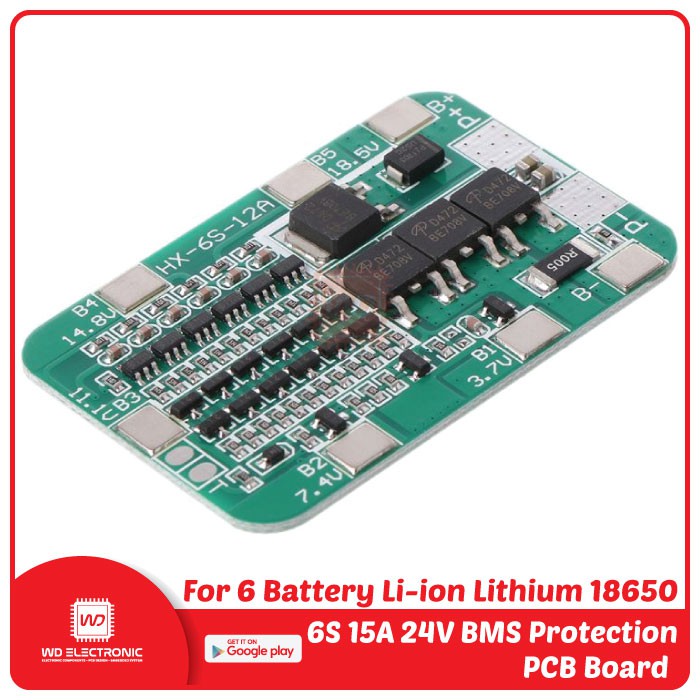

6S 15A 24V Li-ion BMS Battery Protection Board 6S BMS 15A

Detail 6S 15A 24V Li-ion BMS Battery Protection Board 6S BMS 15A

Hi #RekanEasyWare ...
EasyWare Part#: EP000734

Features :
- Fine workmanship and durable.
- For the rechargeable (generally refers to the lithium battery) from the protection of the integrated circuit board. Lithium battery (rechargeable type) so need protection.
- As the lithium battery itself determines the material itself can not be overcharge, over discharge, overcurrent, short circuit and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow a protective resistor with a sampling resistor and a current fuse.

Spesifications :
- Lampshift maximum discharge current: 15A
- Instantaneous discharge current: 25A
- Charging voltage: 25.5V
- Charging current: 15A (MAX)
- Overcharge detection voltage: 4.28 ± 0.05V
- Overcharge protection delay: 0.1S
- Overcharge release voltage: 4.08 ± 0.05V
- Over discharge detection voltage: 2.55 ± 0.08V
- Overdischarge detection delay: 0.1S
- The overdischarge release voltage: 2.9 ± 0.1V
- Overcurrent detection voltage: 150mV
- Overcurrent detection delay: 9MS
- Overcurrent protection current: 30 ± 3A
- Overcurrent protection release condition: Disconnect the load
- Short circuit detection delay: 250uS
- Short circuit protection Release condition: disconnect negative open
- Main circuit conduction resistance: ≤20mΩ
- Working current: ≤30uA
- Sleep current (battery over discharge) ≤10uA
- Temperature range: -30 / + 80 ℃

Package :

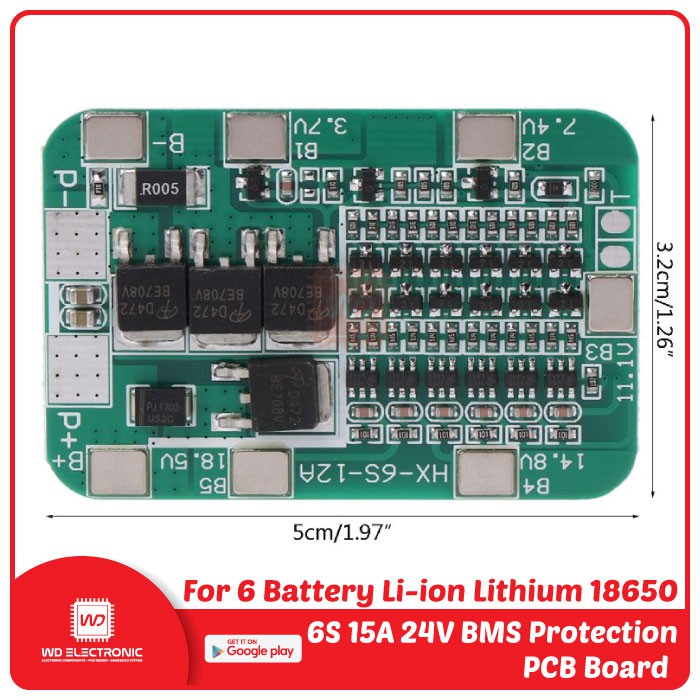

- 1x 6S 15A 24V BMS Protection PCB Board For 6 Packs Li-ion Lithium 18650 Battery Cells
