Detail KY-003 KY003 HALL MAGNETIC SENSOR MODULE

Hi #RekanEasyWare ...
EasyWare Part#: EP001716

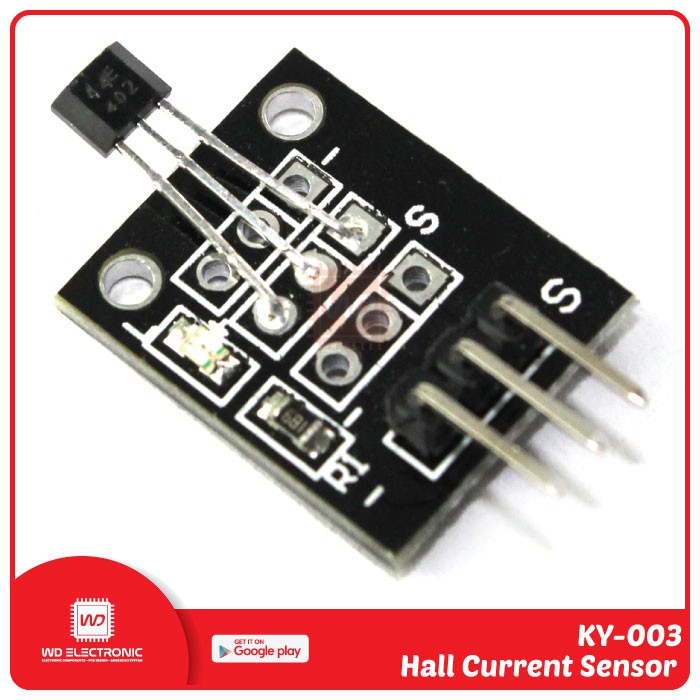

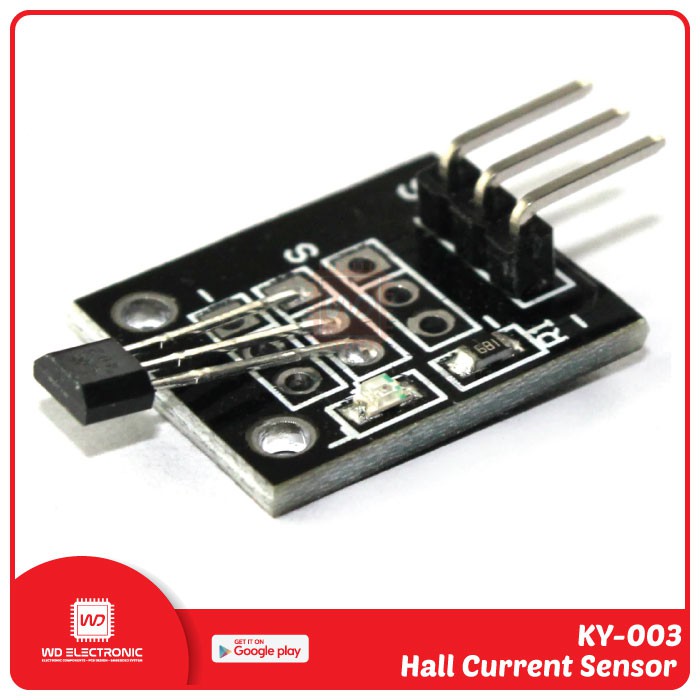

This is Hall Effect magnetic sensor module DC 5V for Arduino
Small size and high sensitivity. Fast response temperature and good performance. Precision and high reliability
3144 Series Hall principle of Hall effect switch IC, using technology to produce magnetic semiconductor integrated circuit, which is determined by the voltage regulator, Hall voltage generator, differential amplifier, Schmidt trigger, temperature compensation circuit and the collector electrode open circuit output stage consisting of magnetic sensing circuit, the input for the magnetic flux density, the output is a digital voltage signal.
This section circuit pipe legs with pure tin production, the complete model is 3144EUA-S or 3144LUA-S.

FITUR DAN SPESIFIKASI :
- Brand: KEYES
- Model: KY-003
- Magnetic, speed, gap induction
- Suitable for Arduino DIY project
- Working voltage: DC 5V
- Material: PCB
- Non-contact switch
- Car ignition
- Brake circuit
- Position, speed detection and control
- Security alarm device
- Textile control system

KELENGKAPAN :
- 1pcs KY-003 Hall Effect magnetic sensor module
