ZTE WIRELESS GPON ONT F660 V8

Detail ZTE WIRELESS GPON ONT F660 V8

VIDEO PRODUK :
youtube.com/watch?v=tpQvQ_gmtaM

Fiber port :
- 1 GPON interface, 1GE+3FE+1POT+1USB+WIFI,SC single-mode,
- Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength : Tx 1310nm, Rx 1490nm
Fiber interface : SC/UPC
RX sensitivity : <-27dBm (1490nm)
WLAN : IEEE802.11b/g/n,2*2 MIMO, 2.4G WIFI,external antenna(5dBi)
LAN : 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
ONT Detection and Isolation of Active/Passive Hooligans : YES
L2 forwarding capability : Forwarding packets of any length at wire speed
IPv4 L3 forwarding capability :
- 2Gbit/s with any length packets in downstream direction
- 1Gbit/s with any length packets in upstream direction
IPv6 L3 forwarding capability :
- 2Gbit/s with any length packets in downstream direction
- 1Gbit/s with any length packets in upstream direction
Configuration method : NMS, Web, or TR069
Voice protocol : SIP, H.248
DC power :
- Adapter input: 100-240 V AC, 50 - 60 Hz ;
- Adapter output: 11 14 V DC, 1 A
Button : Reset, power
Power : 8W
Operation :
- Working temperature: -0-+40
- working humidity:5-95%(non-condensation)
Dimension : 250*220*65mm(length*width*height)
Net weight : 0.6Kg

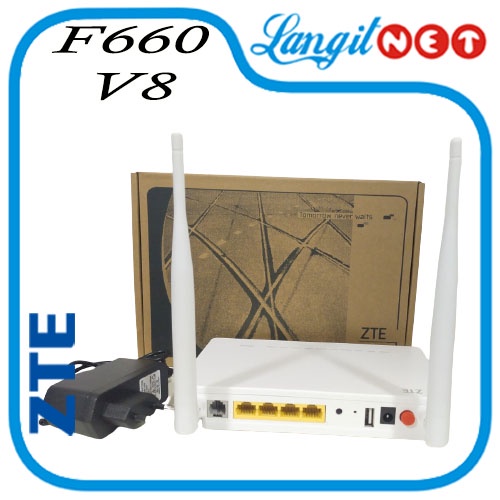

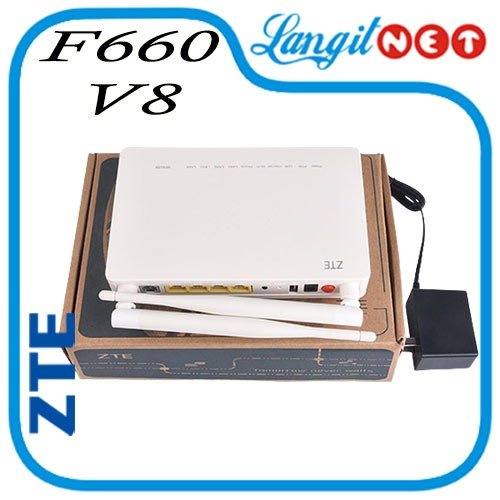

Gambar produk
