ZTE GPON ONT ZXHN F609

Detail ZTE GPON ONT ZXHN F609

Video Produk :
youtu.be/vX84ZsI5Pfo

GPON Compliance.

ITU-T G.984.x GPON standards.
1.244Gbps burst mode upstream, 2.488Gbps downstream.
Upstream 1310nm, Downstream 1490nm.
Output optical power: Min 0.5dBm,Max +5dBm.
Receiver sensitivity: Better than -28dBm.

Wireless.

Frequency: 2.4 GHz.
IEEE 802.11b/g/n.
128 bits WEP data encryption.
WPA/WPA2 (Wi-Fi Protected Access) Security.
WPS (Wireless Protected Setup).
WMM(Wi-Fi Multi Media).
Max 4 Broadcast/hide SSIDs.
Max 128 users one SSID.
VoIP.

SIP/ H.248/ MGCP.
DTMF Dialing / DTMF Digits.
5-REN, balanced ring, 55V RMS.
Codec: G.711 (µ-law and A-law), G.726, G.729, G.723.1.
32 ms echo cancellation.
VAD/CNG.
IN-BAND method.
DTMF encoding by RFC 2833.
T.38/T.30 FAX.
Caller ID/ Call Waiting/ Call Forwarding/ Call Transfer/ Call Toggle/ Three Way Calling/ Distinctive Ringing.

USB.

File sharing.
USB Fast Recovery.
Profile quick backup.
DLNA DMS.
USB 2.0, full speed, high speed.

Router.

IPv6 / IPv4 Dual Stack.
NAT/ SNTP.
ALG.
Static routing, and dynamic routing in RIPV1/V2.
PPPoE Client/Pass Through.
DNS Client/Server.
IGMP v1/ v2/ v3.
IGMP proxy/snooping.
Firewall / Security.
Traffic filtering based on UNI port, VLAN ID, 802.1p,UNI+802.1p or VLAN+802.1p.
DOS attack defending.
MAC address filtering.
BUM(Broadcast, Unicast, Multicast) attack protection.
Limit MAC address per UNI port or per ONT.
Broadcast packages rate limit.
AES-128.
Broadcast storm suppression.

QoS.

Rate limitation.
Classifying upstream traffic into VLANs with various Ethernet priorities.
Marking Ethernet priority based on DSCP value.
Ingress rate limit/ Egress shaping.
SP/WRR/SP+WRR.

Management.

TR-069 remote management.
Local WEB and telnet management.
Local built-in diagnostic Function.
Logs and statistics.
Loop back function.
OMCI management.

Hardware Specifications.

WAN : One SC/APC port for GPON.
LAN : Four RJ-45 ports for Gigabit Ethernet interfaces.
FXS : Two RJ-11 ports for VoIP.
USB : One USB 2.0 host interfaces.
Wi-Fi : 802.11b/g/n (2X2).
Button: - WLAN ON/OFF - WPS - Reset - Power ON/OFF.
LED Status indicators : Power, PON, LOS, ALARM, LAN1, LAN2, LAN3, LAN4, POTS1, POTS2, WLAN, WPS, USB.

Electrical Characteristics.

Power input: 12 VDC 1.5 A.
Power consumption : Less than 11 W.
Physical Characteristics.
Net weight : 380g.
Size : 199 (W) x 150 (D) x 35(H) mm.
Environmental Characteristics.
Operating temperature: -5°C ~ 45°C (23°F ~ 113°F).
Humidity: 5% ~ 95% (non-condensing).

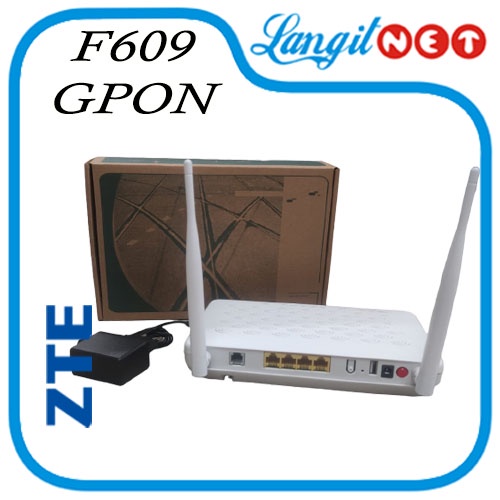

Gambar produk
