ZTE EPON F460 V6.0 WIRELESS INTERNAL ANTENA

Detail ZTE EPON F460 V6.0 WIRELESS INTERNAL ANTENA

SUPER USER
USER            : admin
PASSWORD : admin

Interface Function :
- Optical port (line terminal):
- 1 * EPON interface (SC/UPC)
User network interface :
- 1GE+3FE PON interfaces
- 1 * POTS (VoIP) interfaces
- 1 * WiFi interface: internal antenna
- 1 * USB interfaces

Physical Performance
- Power consumption: 11W
- Dimensions: 35mm (H) * 199 mm (W) * 150 mm (D)
- Working temperature: -5oC ~ 45oC
- Working humidity: 5% ~ 95%
- Weight: 0.7Kg
- Power supply: 12 V DC
- Mounting mode: Desktop/Cabinet/Wall mounting
- Battery: 3AH/6AH (Optional)

Transmission Rate :
- Line terminal: 2.488Gbps downstream and 1.244Gbps upstream
- User side interface: 10/100/1000Mbps auto-negotiation
- WiFi interface : IEEE 802.11b/g/n

Transmission Distance :
- Link distance: 0 ~ 20km max.

Transmission Wavelength :
- Receiving: 1,490 nm
- Transmitting: 1,310 nm

Service Function :
- Service: VoIP, Internet, IPTV , WiFi
- 802.1Q, 802.1P, 802.1ad and QoS policy
- IGMP snooping and controllable multicast
- Loop back function
- Auto event alarm
- Security management
- Remote management
- Dying Gasp
- Optical power detection
- Support TR069
- SIP/H.248/ MGCP
- G.711 /G.722 /G.723 /G.729 codec, T.30/T.38 FAX
- Up to 8 T-CONTs and 32 GEM Ports
- Support WPS
- Support DHCP server
- DOS protection
- USB Local backup

Receiving Sensitivity :
- Data: Better than -28dBm

Transmitting Optical Power :
- 0.5~5dBm

Overload Optical Power :
- -8 dBm

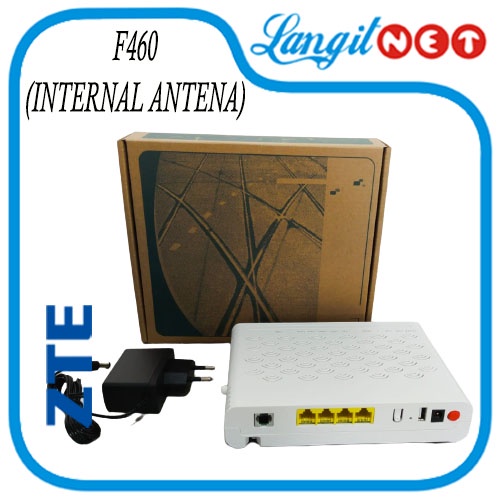

Gambar produk
