ZOYI ZT-S3 Multimeter Tester Digital Resistance Capacitance With NCV

Merek: Zoyi | Lihat selengkapnya produk Perlengkapan Rumah dari Zoyi
Perlengkapan Rumah > Perkakas > Electrical Tester & Multimeter > ZOYI ZT-S3 Multimeter Tester Digital Resistance Capacitance With NCV
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail ZOYI ZT-S3 Multimeter Tester Digital Resistance Capacitance With NCV

This product is a battery-powered, auto-ranging, true RMS digital multimeter with a 4000 counts LCD display

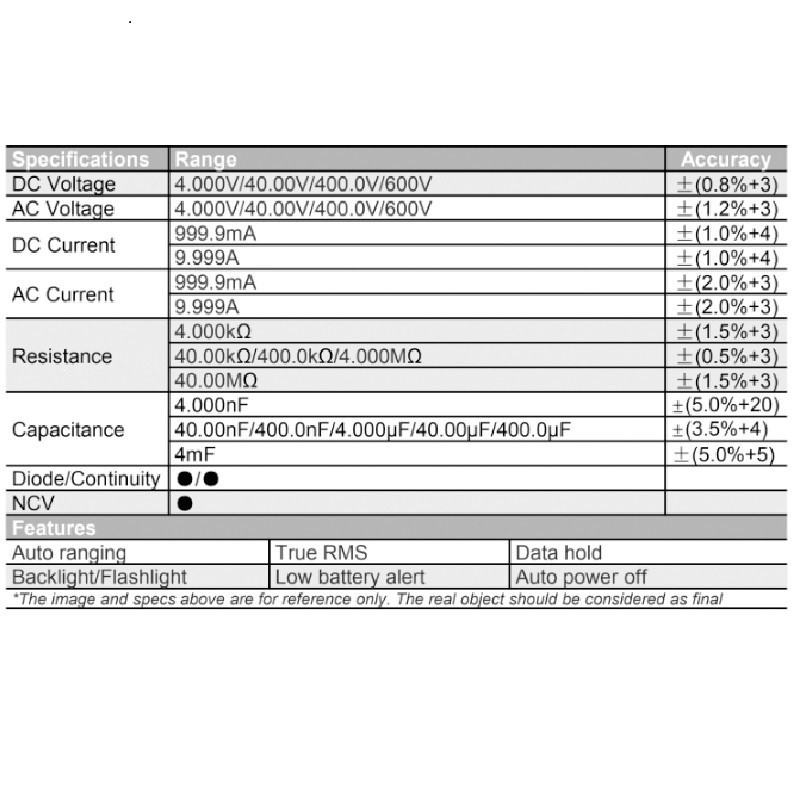

Specification:

Function Range Resolution Accuracy
DC Voltage 4.000V/40.00V/400.0V 0.001V/0.01V/0.1V ±(0.5%+3)
600V
AC Voltage 4.000V/40.00V/400.0V 0.001V/0.01V/0.1V ±(1.0%+3)
600V 1V
AC mA 999.9mA 0.1mA ±(2.0%+3)
AC A 9.999A 0.001A
DC mA 999.9mA 0.1mA ±(1.0%+4)
DC A 9.999A 0.001A
Resistance 4.000kΩ 0.001kΩ ±(1.5%+3)
40.00kΩ/400.0kΩ/4.000MΩ 0.01kΩ/0.1kΩ/0.001MΩ ± (1.0%+3)
40.00MΩ 0.01MΩ ±(1.5%+3)
Capacitance 4.000nF 0.001nF ±(5.0%+20)
40.00nF/400.0nF/4.000μF /40.00μF/400.0μF 0.01nF/0.1nF/0.001μF/ 0.01μF/0.1μF ±(3.5%+4)
4.000mF 0.001mF ±(5.0%+5)
Frequence 4.000Hz/40.00Hz/400.0Hz/4.000KHz/40.00KHz/400.0KHz /4.000MHz/10.00MHz 0.001Hz/0.01Hz/0.1Hz/0.001KHz/0.01KHz/0.1KHz /0.001MHz/0.01MHz ±(1%+2)
Continuity √
NCV √
Frequency response at AC modes 40Hz ~ 1kHz
Display 4000 counts
Ranging Auto/Manual
Material ABS
Update Rate 3 / s
Low Battery Indication √
Data Hold √
Backlight √
Flashlight √
Auto Power Off √
Packing List:
1 * Digital Multimeter tester
1 * Test leads
1 * English user Manual
