Detail ZOYI ZT-S2 True RMS Multitester Digital Counts 4000 Auto Range Test Battery Multimeter case Specifications:
Color: Black
Material: EVA, Nylon
ZT-S2
Instruction:

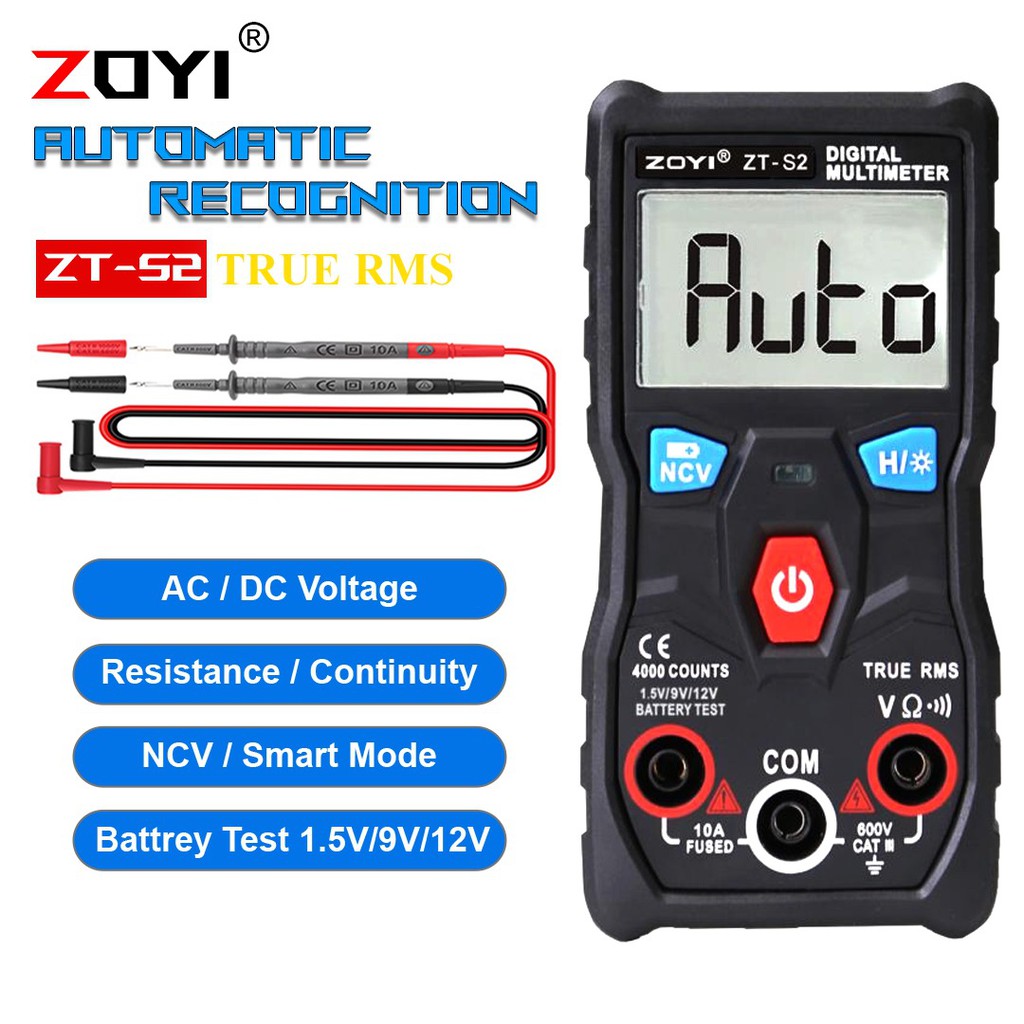

This product is a battery-powered, auto-ranging, true RMS digital multimeter with a 4000 counts LCD display.

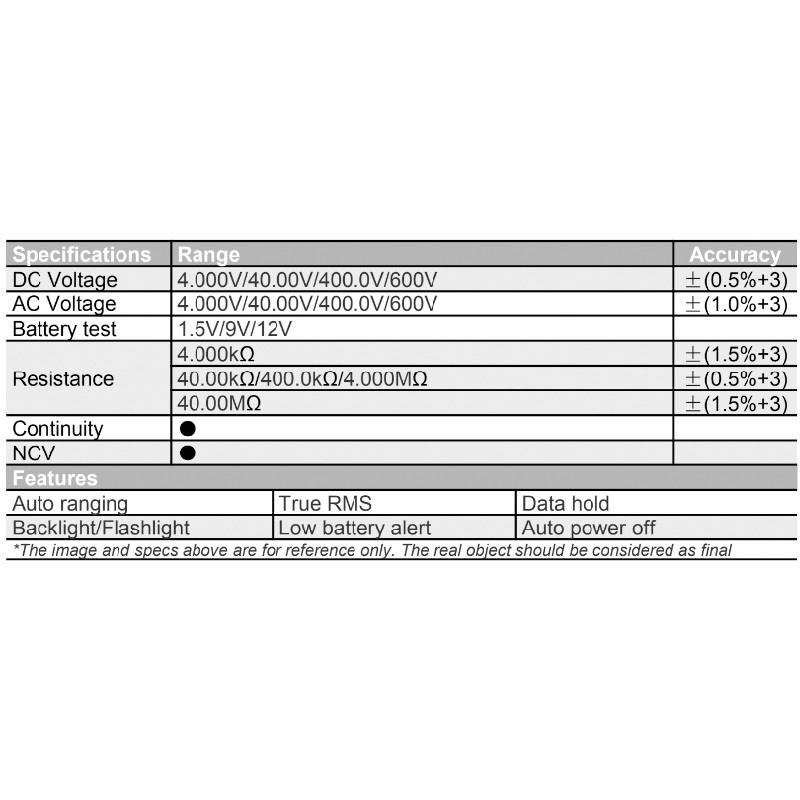

Specification:
Display:4000 counts
Ture RMS:
Ranging: Auto
Data Hold:
Material:ABS+PVC
Backlight:
Update Rate:3 / s
Flashlight:
Low Battery Indication:
Auto Power Off:
Continuity:
NCV:
Frequency response at AC modes:40Hz~1kHz
DC Voltage:4V/40V/400V/600V (0.5 +3);
AC Voltage:4V/40V/400V/600V (1.0 +3);
Resistance:4K (1.5 +3); 40K/400K/4M (0.5 +3); 40M (1.5 +3);
Operating Temperature:0~40; Humidity:75%
Storage Temperature:-20~40; Humidity:80%

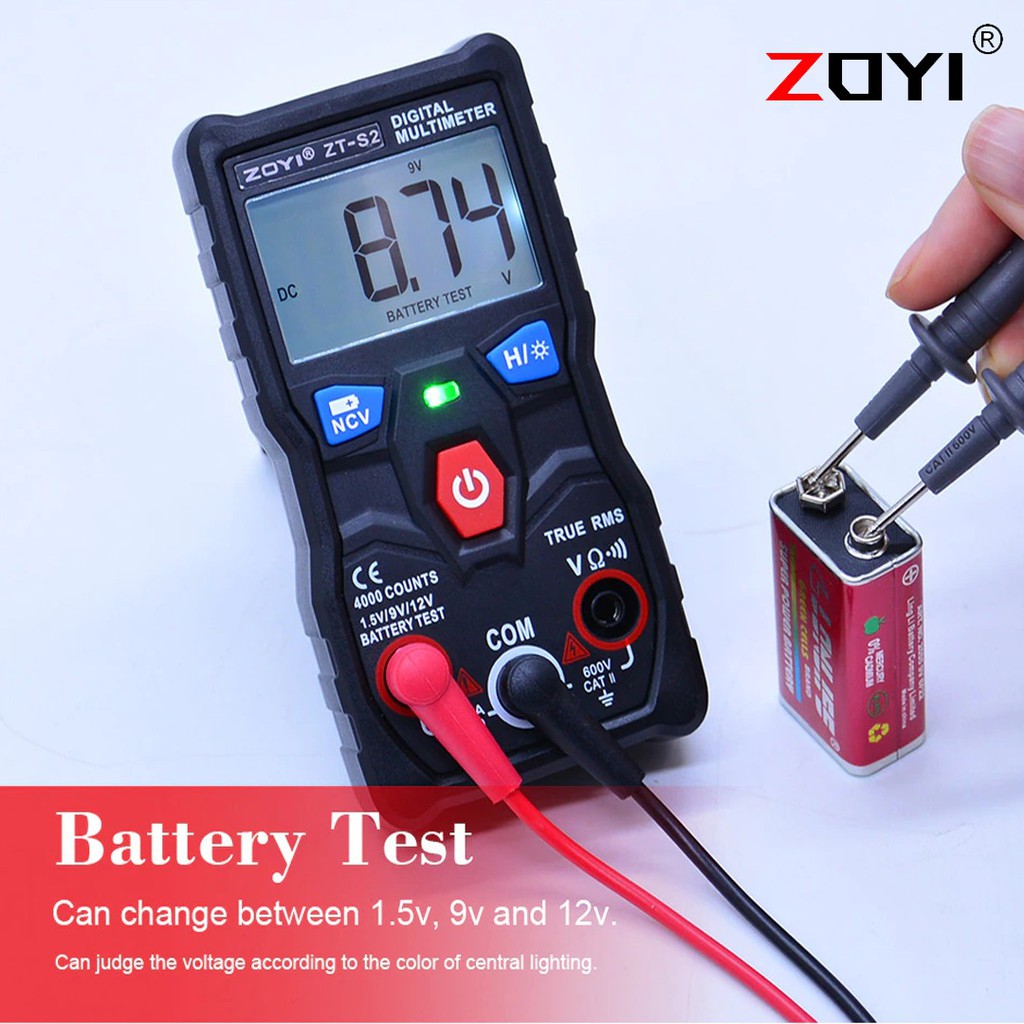

Battery Test:
Battery test 1.5V 9V 12V
load Current 10mA 10mA 200mA
Dump Energy Green 1.30V 7.83V 10.44V
Yellow 0.94V-1.29V 5.64V-7.82V 7.52V-10.43V
Red 0.15V-0.93V 0.90V-5.63V 1.2V-7.51V
No light 0.14V 0.89V 1.19V
