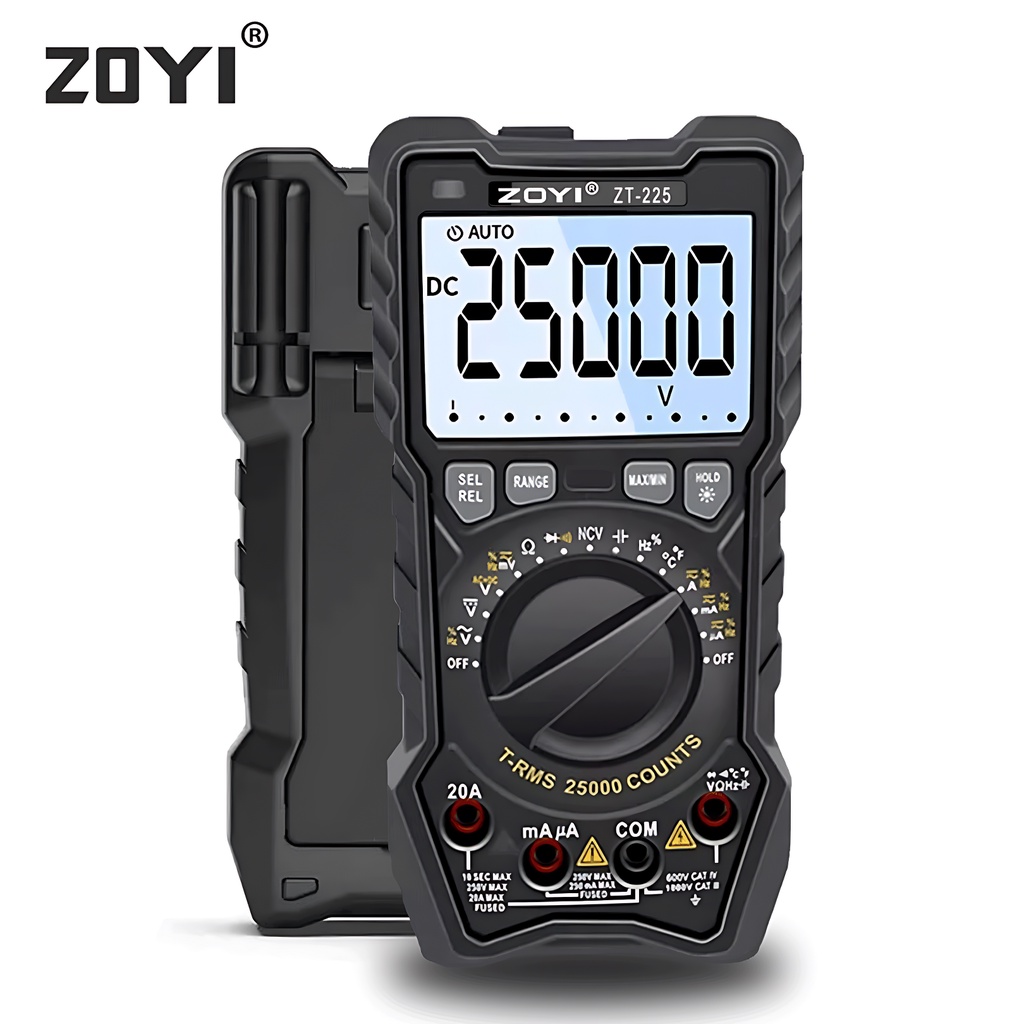

ZOYI ZT-225 Digital Multimeter T-RMS 25000 Counts Continuity Diode

Detail ZOYI ZT-225 Digital Multimeter T-RMS 25000 Counts Continuity Diode

ZOYI ZT-225 Digital Multimeter T-RMS 25000 Counts Continuity Diode

Specifications

Layar (LCD) 25.000 hitungan
Ranging Otomatis/Manual
Material ABS/PVC
Update Rate 3 times/second
Ture RMS Yes
Data Hold Yes
Backlight Yes
Low Battery Yes
Indication Yes
Auto Power Off Yes

Electrical Specifications

Function Range Resolution Accuracy

DC Voltage (mV) 25.000mV 0.001mV ±(0.2%+10)
250.00mV 0.01mV
DC Voltage (V) 2.5000V 0.0001V ±(0.05%+3)
25.000V 0.001V
250.00V 0.01V
1000.0V 0.1V
AC Voltage (mV) 25.000mV 0.001mV ±(0.3%+3)
250.00mV 0.01mV
AC Voltage (V) 2.5000V 0.0001V
25.000V 0.001V
250.00V 0.01V
750.0V 0.1V
AC+DC Voltage (DC) 2.5000V 0.0001V ±(0.5%+3)
25.000V 0.001V
250.00V 0.01V
1000.0V 0.1V
AC+DC Voltage (AC) 2.500V 0.001V ±(1.0%+3)
25.00V 0.01V
250.0V 0.1V
750V 1V
AC+DC Voltage (AC+DC) 2.5000V 0.0001V ±(1.5%+3)
25.000V 0.001V
250.00V 0.01V
1000.0V 0.1V
DC Current (A) 2.5000A 0.0001A ±(0.5%+3)
20.000A 0.001A
DC Current (mA) 25.000mA 0.001mA
250.00mA 0.01mA
DC Current (µA) 250.00uA 0.01uA ±(0.5%+3)
2500.0uA 0.1uA
AC Current (A) 2.5000A 0.0001A ±(0.8%+3)
20.000A 0.001A
AC Current (mA) 25.000mA 0.001mA
250.00mA 0.01mA
AC Current (µA) 250.00uA 0.01uA ±(0.8%+3)
2500.0uA 0.1uA
Resistance 250.00Ω 0.01Ω ±(0.5%+3)
0.5000kΩ 0.0001kΩ ±(0.2%+3)
25.000kΩ 0.001kΩ
250.00kΩ 0.01kΩ
2.5000MΩ 0.0001MΩ ±(1.0%+3)
25.00MΩ 0.01MΩ
250.0MΩ 0.1MΩ ±(5%+5)
Capacitance 9.999nF 0.001nF ±(5.0%+20)
99.99nF 0.01nF ±(2.0%+5)
999.9nF 0.1nF
9.999µF 0.001µF
99.99µF 0.01µF
999.9µF 0.1µF
9.999mF 0.001mF ±(5.0%+5)
Frequency 250.00Hz 0.01Hz ±(0.1%+2)
2.5000KHz 0.0001KHz
25.000KHz 0.001KHz
250.00KHz 0.01KHz
2.5000MHz 0.0001MHz
10.000MHz 0.001MHz
Duty Cycle 1% ~99% 0.1% ±(0.1%+2)

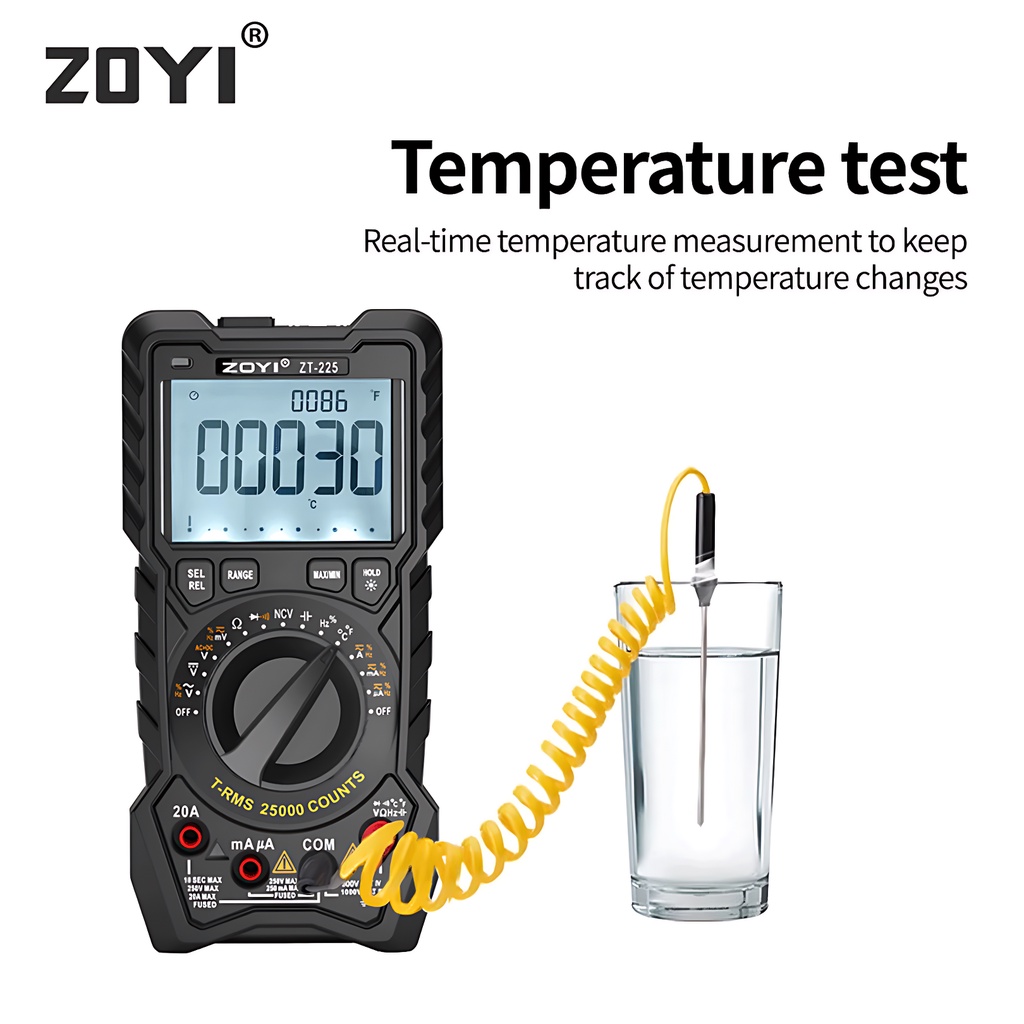

Temperature (-20~1000)°C "1°C
" ±(3%+5)
(-40~1832)°F 1°F
Diode Yes
Continuity Yes

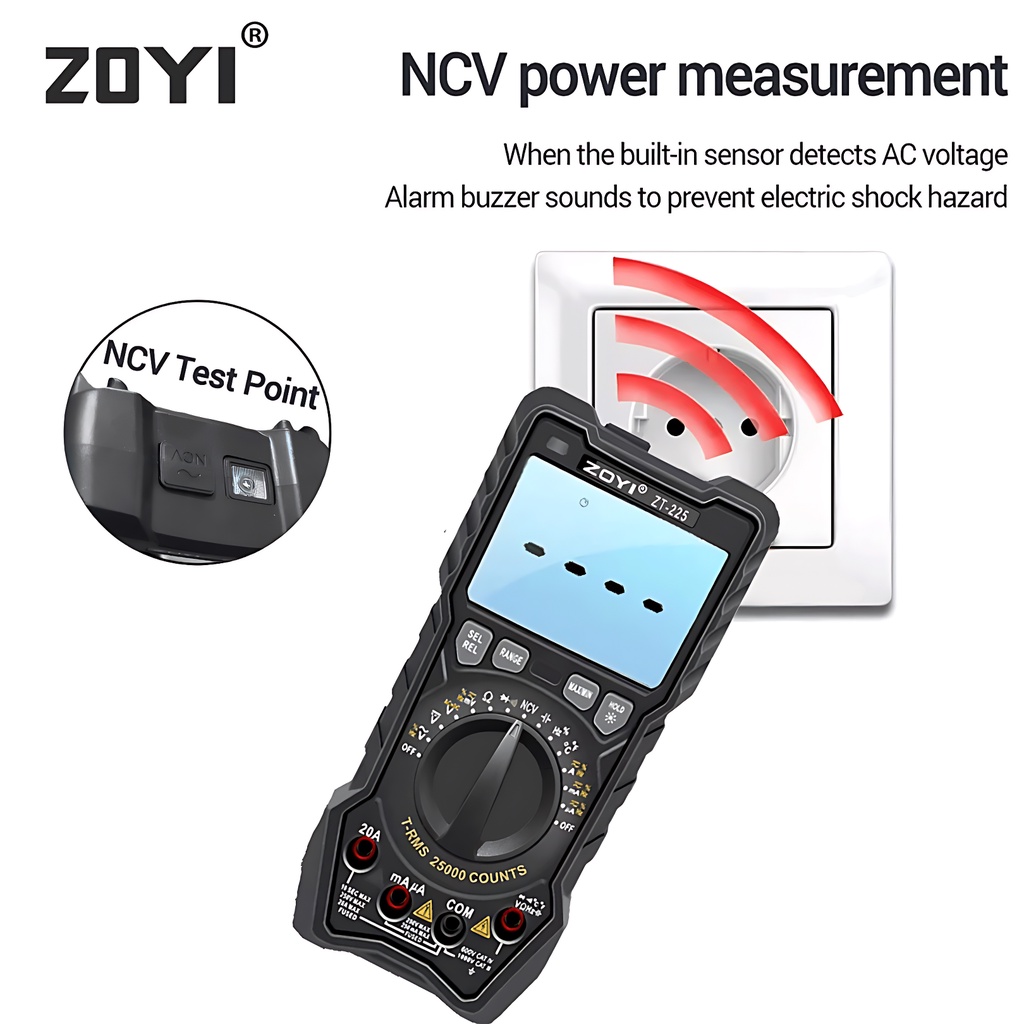

NCV Yes
AC+DC Voltage measurement AC+DC 1V~1000V

Mechanical Specifications

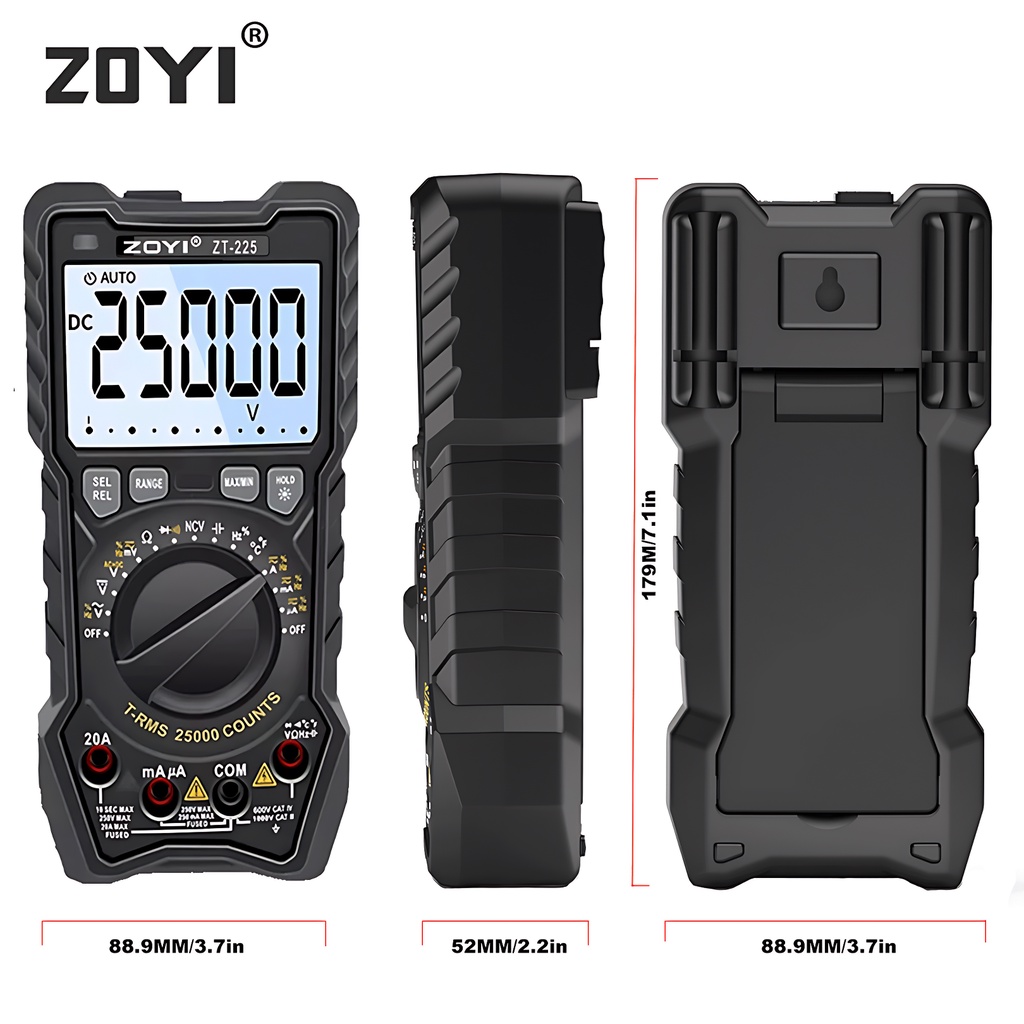

Dimension: 180*90*50mm
Weight 384g
Battery Type 1.5V AA Battery * 3
