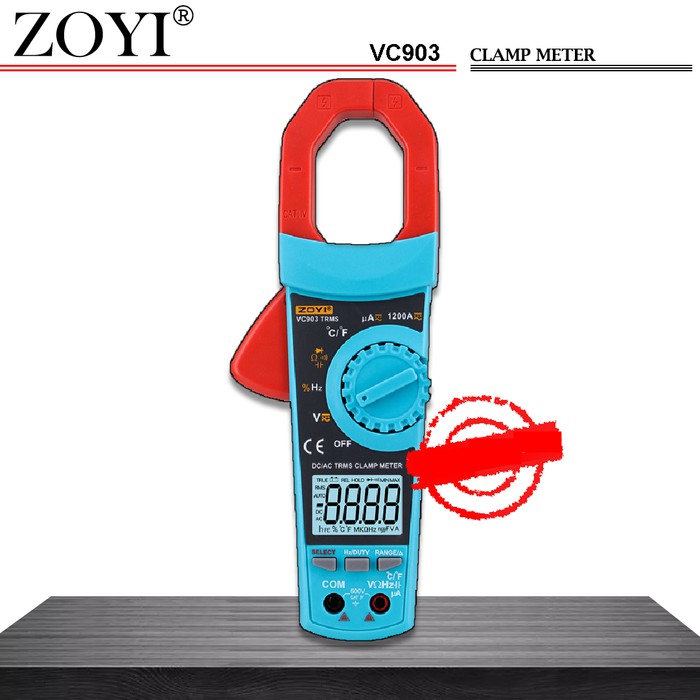

Zoyi VC903 Auto Range Clamp Meter Tang Amper Digital Tang Ampere AC DC
VC903 Features:
*Auto/manual ranges
*True RMS measurement
*550V protection in resistance and capacitance ranges
*LCD display, MAX display 6000 counts
*Sample rate: 3 times per second
*Backlight
*Data hold
*Diamension: 240*90*45mm
*Polarity identification Low voltage indication
*1000A high current measurement, low current measurement Auto power off
*Main measurements: AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode and Continuity Testing,Temperature, Frequency and duty cycle.

VC903 Specifications:
(1)Frequency: 99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz (±0.1+2);
(2)Temperature: (-20~1000)°/(-4~1832)° ±(2.5%+5);
(3)Capacitance:10nF(±5.0+20),100nF/1000nF/10uF/100uF/1000uF(±2.0%+5),10mF(±5.0%+5);
(4)DC volt: 600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3);
(5)AC volt: 600mV(±3.0%+3),6V/60V/600V/750V(±1.0%+3)
(6)DC Current: 600uA/6000uA(±1.2%+3);
60A/600A/1200A (±2.0%+30) (Only VC903);
(7) AC Current: 600uA/6000uA(±1.5%+3),60A/600A/1200A(±2%+30) (Only VC903);
(8)(8)Resistance:600Ω/6K/60K/600K/6M(±0.5%+3),60MΩ(±1.5%+3)
(9)Duty cycle:1% to 99%(±0.1%+2)
(10) Measurement mode: Double-integral style A/D transform
(11)Over range indication: OL
(12)Working environment: 0~40°, relative humidity < 80%
(13)Supply power: 3V (1.5V AA batteries*2 pcs not included)

Packing List:

1*Digital clamp meter

1*A pair Test leads

1*Temperature Probe

1*English manual

1*Pouch bag
