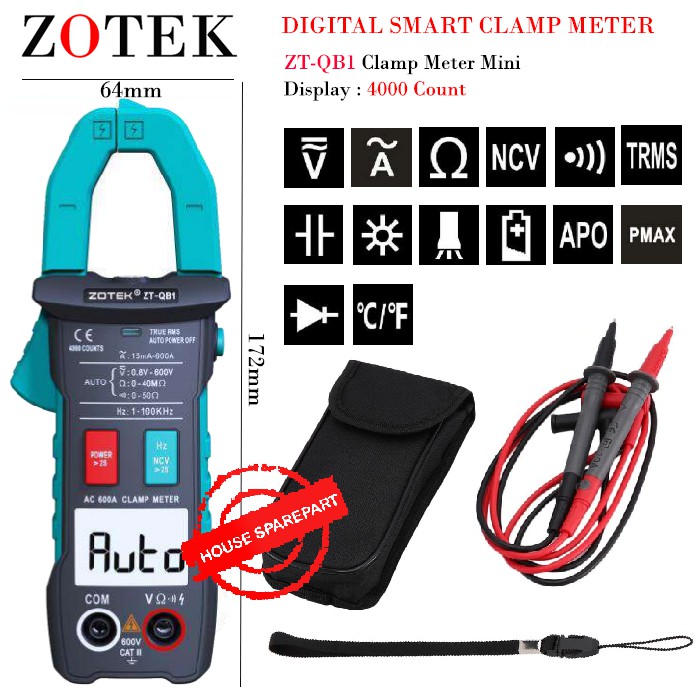

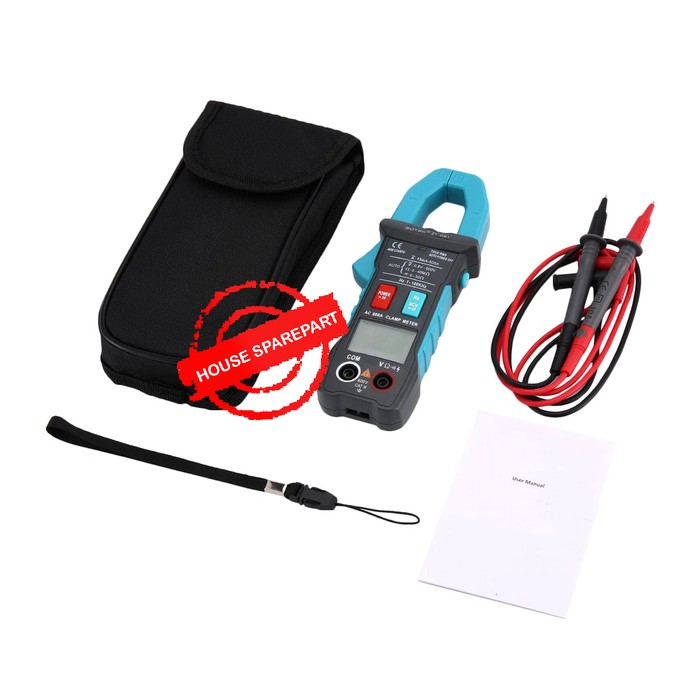

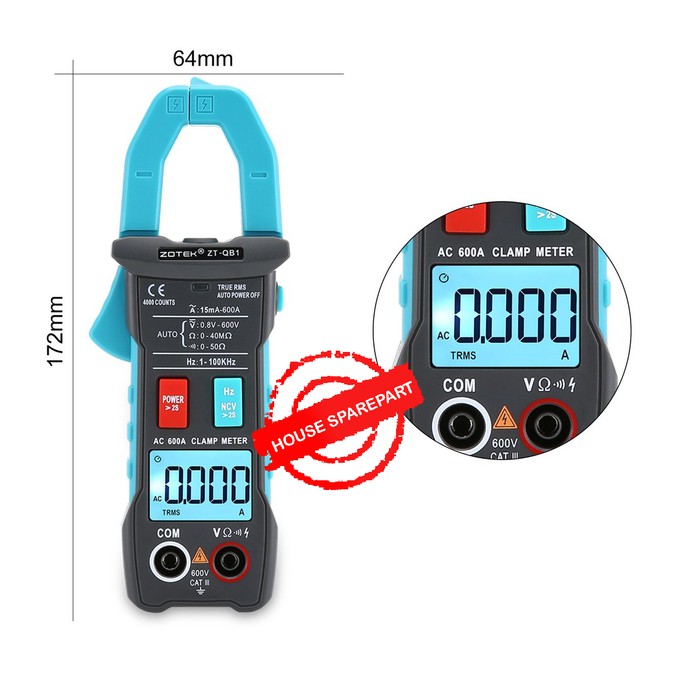

Zotek ZT-QB1 Smart Clamp Meter Tang Ampere Mini 600A Current TRMS

Detail Zotek ZT-QB1 Smart Clamp Meter Tang Ampere Mini 600A Current TRMS

It is a pocket digital clamp meter, Has the characteristics of safety, Wide range and easy to carry; Full-featured, suitable for factory and home use, Is also an ideal multi-function clamp meter for professionals and instrument lovers.



Feature:


Max display value: 4000 Count.



True-RMS / Automatic-Range.

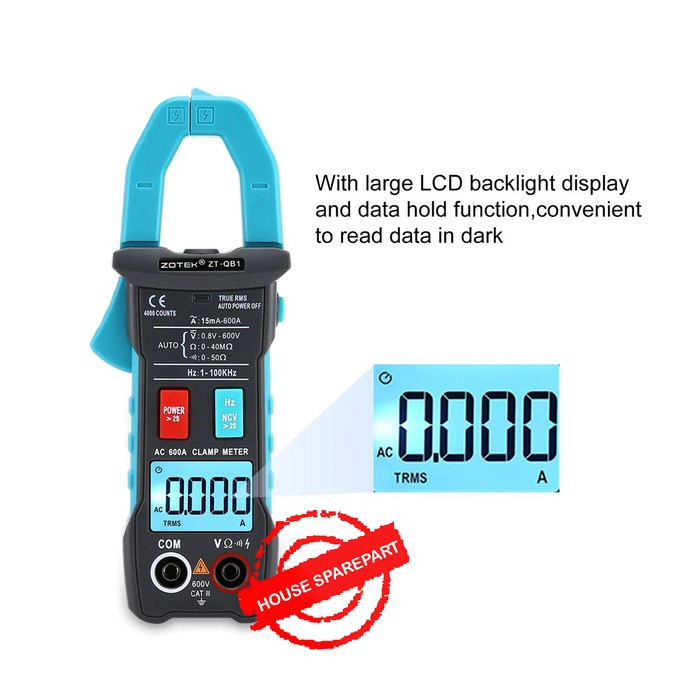

LCD display with backlight for clear reading.


Support one-handed switching of all test functions, making operation more convenient and quick.


Can measures DC/AC voltage, AC Current, Resistance, Continuity, Frequency, Dangerous voltage alarm(NCV).



Data hold, Low battery indication functions, Auto power off.



Added back hooks, convenient to carry.

Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards

Over-voltage protection class CAT III 300V, CAT II 600V,

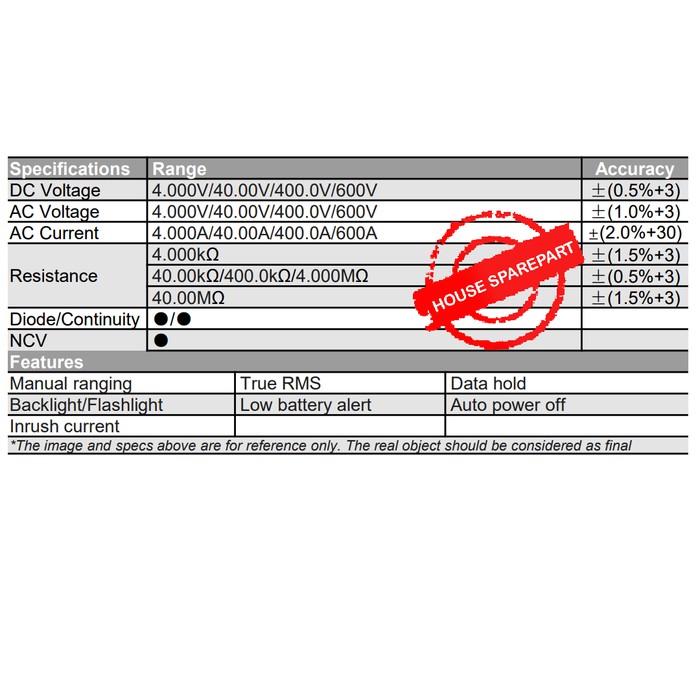

Test Range:

AC current: 4.000A ±(5%+5counts); 40.00A/400.0A/600A ±(2.5%+8counts).



DC voltage: 4.000V/40.00V/400.0V600V ±(0.5%+3counts).



AC voltage: 4.000V/40.00V/400.0V600V ±(1.0%+3counts).



Resistance: 4.000k ±(1.5%+3counts); 40.00k/400.0k/4.000Mohm ±(1.0%+3counts); 40.00Mohm ±(1.5%+3counts).



Frequency: 4.000Hz/40.00Hz/400.0Hz/4.000kHz/40.00kHz ±(0.1%+2counts).



Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds.



Jaw Capacity: 25mm.
