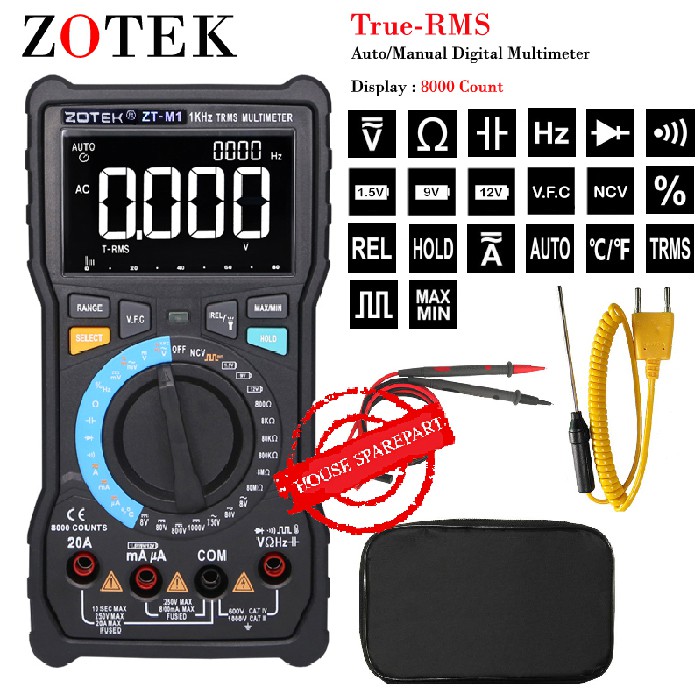

Zotek ZT-M1 Auto/Manual Digital Multimeter EBTN Triple Display Battery Test Voltage VFC Original

Detail Zotek ZT-M1 Auto/Manual Digital Multimeter EBTN Triple Display Battery Test Voltage VFC Original

Features:
EBTN (enhanced background twisted nematic) LCD display has less eye irritation than other LCD screen.
VFC test, battery test, square wave output test
Capacitance, temperature, frequency, NCV and diode test
AC/DC voltage, AC/DC current, resistance, continuity, and duty cycle test
TRMS, auto-ranging, data hold with low battery indication
Manual & Auto range
Flashlight with 2 back probe holder
Max/Min reading

Specifications:
Display: 8000 counts
DC Voltage: 800.0mV/8.000V/80.00V/800.0V/1000V ±(0.5%+3)
AC Voltage: 800.0mV/8.000V/80.00V/750V ±(1.0%+3)
DC Current: 800.0μA/8.000mA/8.000mA/80.00mA/800.0mA/8.000A/20.00A ±(1.2%+3)
AC Current: 800.0μA/8.000mA/8.000mA/80.00mA/800.0mA/8.000A/20.00A ±(1.5%+3)
Resistance: 800.0Ω/8.000kΩ/80.00kΩ/800.0kΩ/8.000MΩ±(0.5%+3); 80.00MΩ ±(1.5%+3)
Capacitance:
9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ±(5.0%+20);
9.999mF/99.99mF ±(5.0%+5)
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±(0.1%+2)
Duty Cycle: 1%~99% ±(0.1%+2)
Temperature: (-20~1000)℃/(-4~1832)℉ ±(2.5%+5)
Square wave output: 50Hz~5000Hz
Diode: show the forward voltage
NCV: alarm beep sounds and LED blink if detect AC voltage
Continuity: alarm beep sounds if resistance less than 50Ω
Power: 1.5V (AA) x 3 (not included)
Size: 176mm * 91mm * 47mm
Weight: 360g

Package Includes:
1 * Digital Multimeter
1 * Probes
1 * Thermocouple
1 * Carrying Case
1 * User Manual
