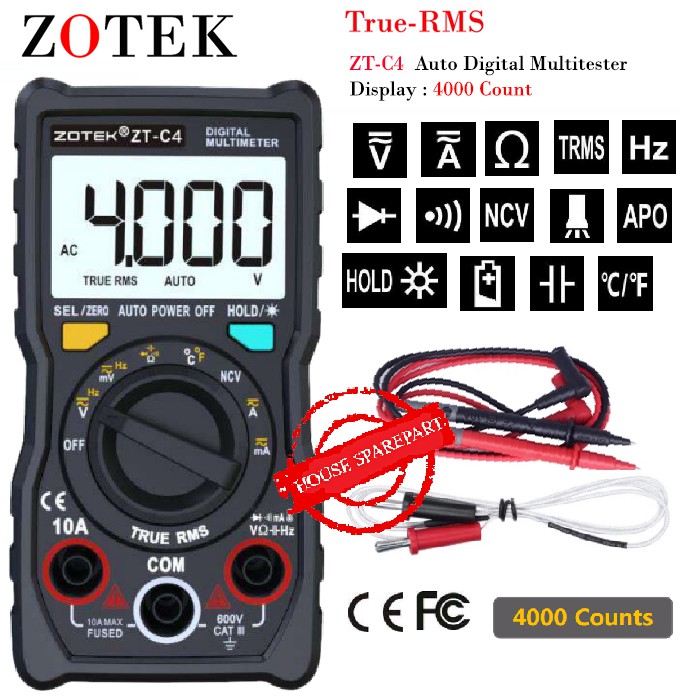

Detail Zotek ZT-C4 Avometer Digital Multitester Digital Original AC/DC
ZT-C4 Multifunction Mini Multi Meter AC/DC Voltage Transistor Tester Ammeter Temperature Sensor Test Lead Probe
If you want to see more, please click #housesparepart
This multimeter is characterized by stable function and high reliability, with the Features of overload protection and LCD display for clear reading, is an ideal tools for lab, factory, radio fans and family use.
Features: Measures AC/DC voltage , resistance, frequency, temperature and diode test, etc. 4000 counts digital LCD display offers large test rang as well as clear readings. Back light LCD and flashlight for easy operation in dimly lit areas. Easy to operate, accurate readings, low power comsumption. Automatic power off function, save energy for longer service life. With a bracket, you can erect an angle to facilitate reading. Compact size make it lightweight and portable, convenient to carry.
Specifications: Model No.: RM404B DC Voltage Range: 40mV/400mV/4V/40V/400V/600V AC Voltage Range: 40mV/400mV/4V/40V/400V/600V DC Current Range: 40mA/400mA/4A/10A AC Current Range: 40mA/400mA/4A/10A Frequency Range:4Hz/40Hz/400Hz/4kHz/40kHz/400kHz/3MHz Resistance Range: 400Ω/4KΩ/40KΩ/400KΩ/4MΩ Temperature:-30℃-1000℃(-22℉-1832℉) NCV: yes Diode: yes Continuity: yes Sample Rate: 3 times per second Operating Temperature: 0-40℃ Storage Temperature: -20℃-60℃ Operating Hunidity: <75% Storage Hunidity: <80% Power: 2 * 1.5V AAA batteries(Not Included) Item weight: 121g / 4.27ounces Package weight: 184g / 6.47ounces Item size: 118 * 60 * 25mm / 4.65 * 2.36 * 0.98in Package size: 190 * 140 * 35mm / 7.48 * 5.51 * 1.38in Notes: 1. Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. 2. Due to the manual measurement and different measurement methods, please allow 1-3mm deviation. 3. Low level of a battery will result in incorrect reading.Change the batteries when battery level is low. Do not make measurements when the battery door is not propely placed. 4. Do not inpt voltage exceeds 36V DC or 25V AC when you are at ther seeting of measuring current. 5. Do NOT exceed the “maximum value” indicated in the Specification. 6. Turn off the product and remove the test leads from the test points before changing batteries or fuses.
