Zotek VC902 Auto Range Clamp Meter Tang Ampere Digital Tang Ampere Digital Clamp Meter Original

Detail Zotek VC902 Auto Range Clamp Meter Tang Ampere Digital Tang Ampere Digital Clamp Meter Original

VC902Features:
*Auto/manual ranges
*True RMS measurement
*550V protection in resistance and capacitance ranges
*LCD display, MAX display 6000 counts
*Sample rate: 3 times per second
*Backlight

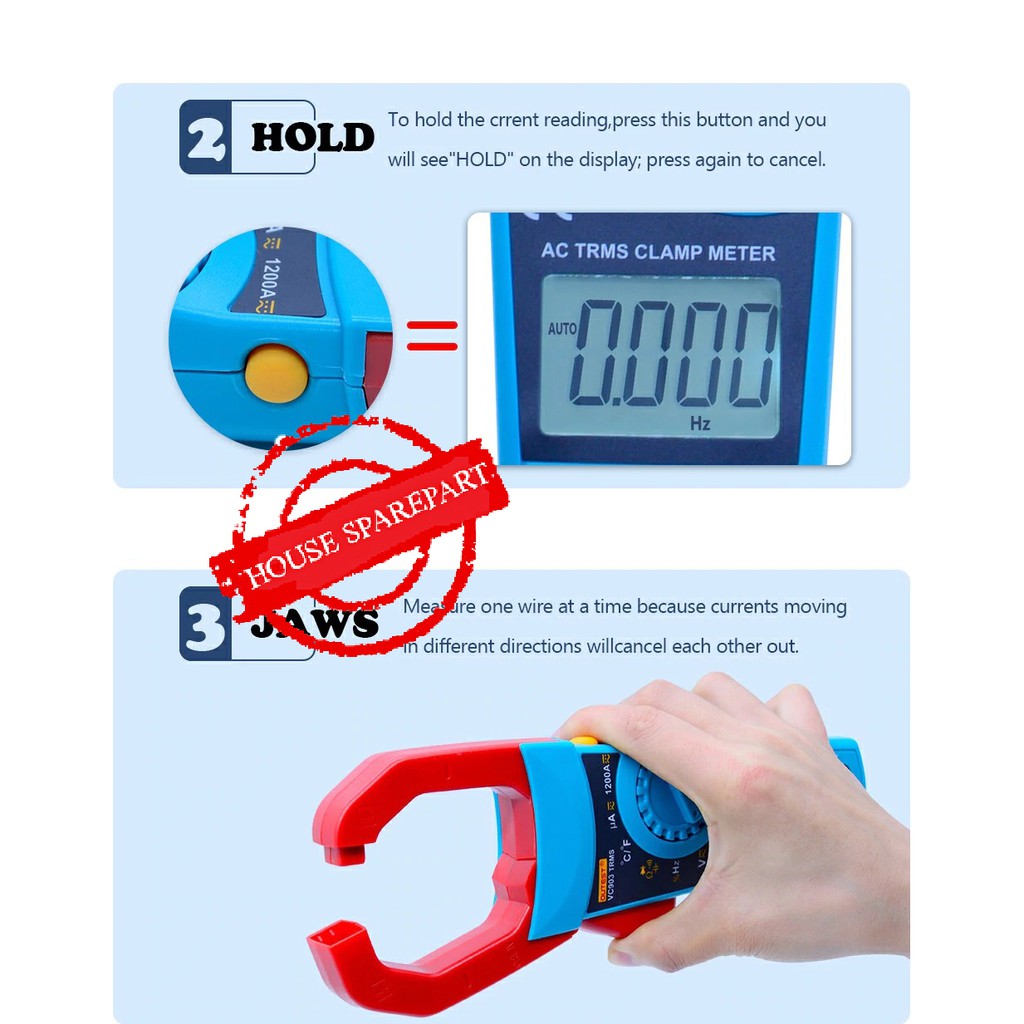

*Data hold
*Diamension: 240*90*45mm
*Polarity identification Low voltage indication
*1000A high current measurement, low current measurement Auto power off
*Main measurements: AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode and Continuity Testing,Temperature, Frequency and duty cycle.

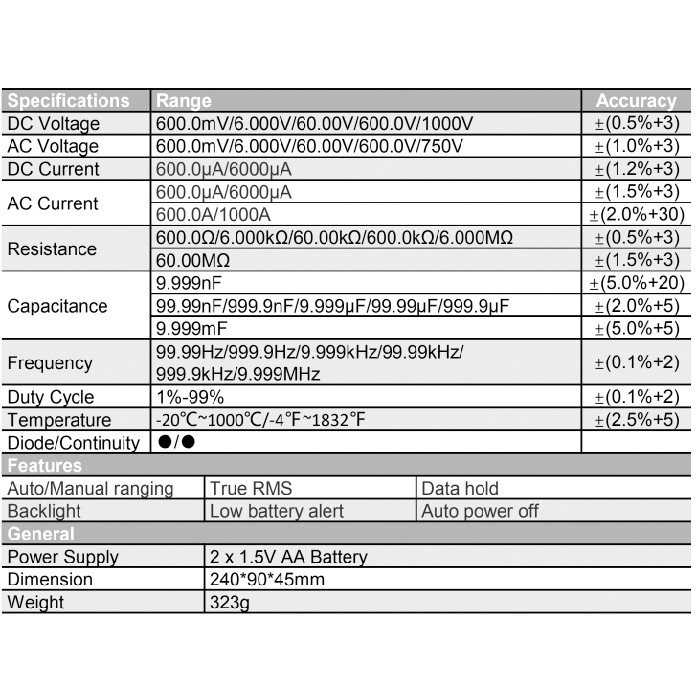

VC902 Specifications:
(1)Frequency: 99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz (±0.1+2);
(2)Temperature: (-20~1000)°/(-4~1832)° ±(2.5%+5);
(3)Capacitance:10nF(±5.0+20),100nF/1000nF/10uF/100uF/1000uF(±2.0%+5),10mF(±5.0%+5);
(4)DC volt: 600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3);
(5)AC volt: 600mV(±3.0%+3),6V/60V/600V/750V(±1.0%+3)
(6)DC Current: 600uA/6000uA(±1.2%+3);(only vc903)
(7)AC Current: 600uA/6000uA(±1.5%+3),600A/1000A(±2%+30)
(8)(8)Resistance:600Ω/6K/60K/600K/6M(±0.5%+3),60MΩ(±1.5%+3)
(9)Duty cycle:1% to 99%(±0.1%+2)
(10) Measurement mode: Double-integral style A/D transform
(11)Over range indication: OL
(12)Working environment: 0~40°, relative humidity < 80%
(13)Supply power: 3V (1.5V AA batteries*2 pcs not included)

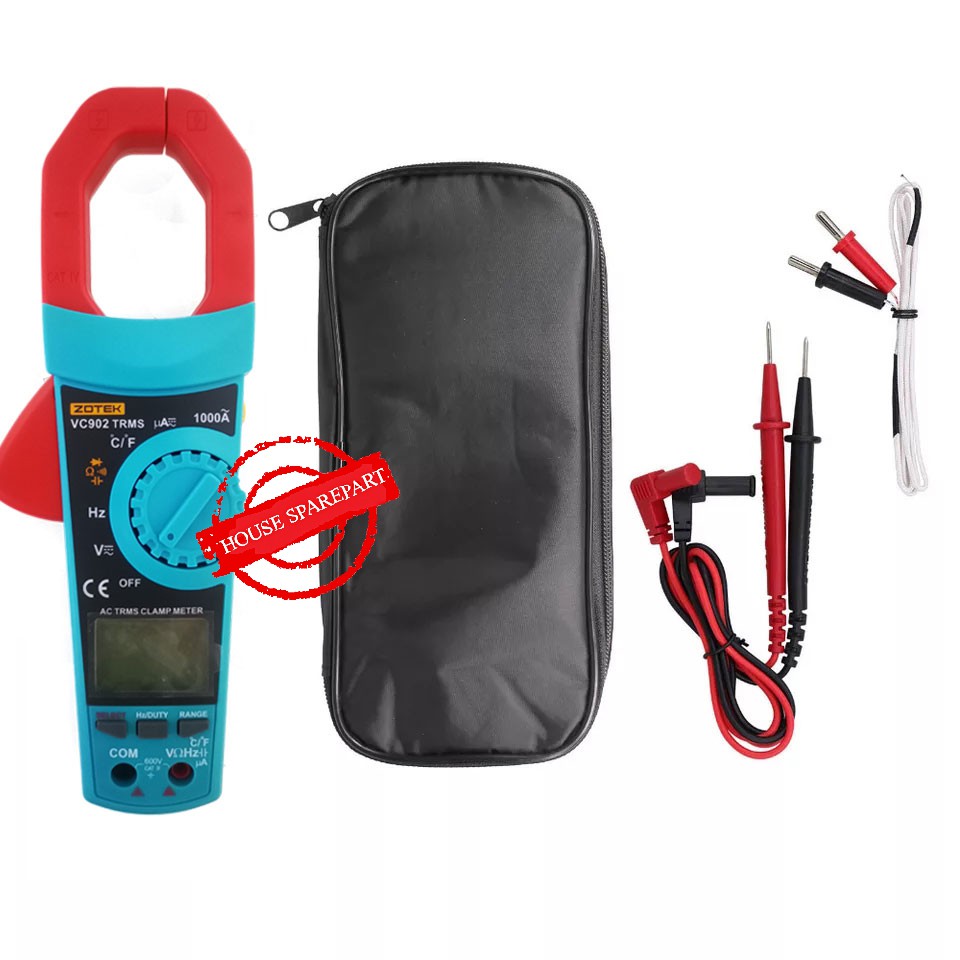

Packing List:

1*Digital clamp meter

1*A pair Test leads

1*Temperature Probe

1*English manual

1*Pouch bag
